Self Bunded Diesel Storage Tank, 5,000L & 10,000L, 12V or 240V Dispenser
Polymaster Ranger Self Bunded Diesel Tank
A tank within a tank. Double poly walls contain any spill, giving you 110% secondary containment in a single unit with no separate bund to build. The Ranger adds power control features to the plug and play dispenser, including an emergency stop, automatic timeout, a digital fluid meter and high and low alarms. Choose 5,000L or 10,000L, with a 12V or 240V dispenser.
✓ 5,000L & 10,000L
✓ 110% Secondary Containment
✓ 12V or 240V Dispenser
✓ 5 Year Warranty
-
✓Self bunded, double wall
110% secondary containment in one unit -
✓Power control box and emergency stop
Better control over the dispenser -
✓10 minute auto timeout
Stops the pump on continual use -
✓Digital fluid meter and alarms
Track what you dispense, with high and low alarms

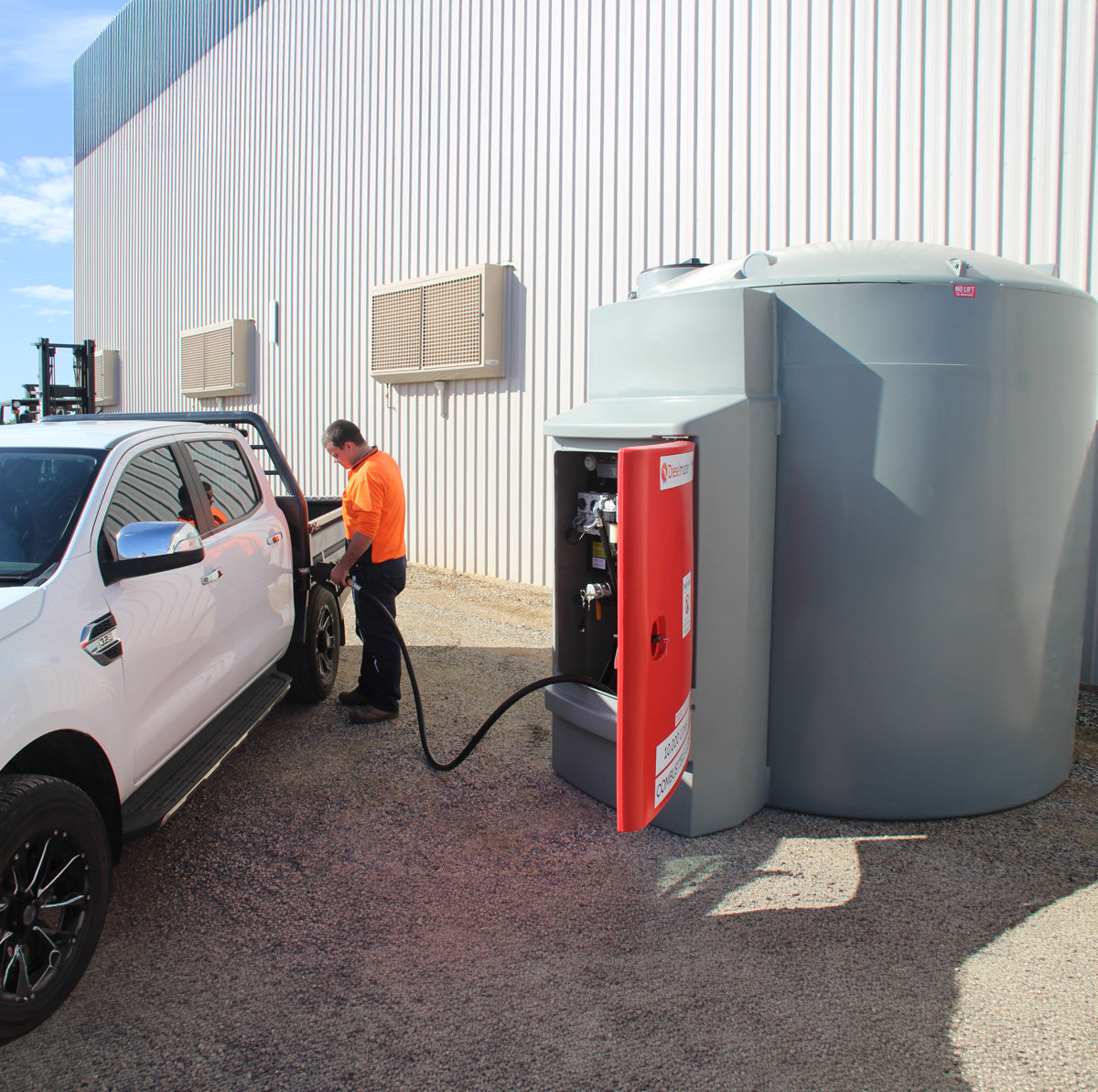

A Tank Within A Tank
The self bunded design puts one poly tank inside another, so any spill from the inner tank is contained by the outer wall. It is made from UV sun tough, flame retardant material, manufactured in Australia, and provides the 110% secondary containment that AS1940:2017 calls for.
Extra Control With The Ranger
Compared with the Essential, the Ranger adds a power control box, an emergency stop, an automatic 10 minute timeout on continual use, a digital fluid meter, and high and low alarms. The dispenser also includes an Italian Piusi pump, a 30 micron water capture filter, an auto shutoff trigger nozzle, a digital level indicator and a lockable equipment cabinet, in a plug and play setup.
Simple To Set Up On Site
Place it on a firm, level surface, as a concrete pad is not mandatory. A 2 inch camlock ball valve fill point and mechanical overfill protection make filling safer. A licensed electrician is required for all electrical connections, and separation distances set out in AS1940:2017 must be observed, so check your site requirements before installing.
Key Specs
- Capacity5,000L or 10,000L
- Power12V or 240V
- ControlsPower control box, emergency stop, 10 minute auto timeout
- MeteringDigital fluid meter with high and low alarms
- Containment110% secondary containment, self bunded
- Fill Point2 inch camlock ball valve
Specifications
Sizes & Pricing
- 5,000L, 240V: $21,415
- 5,000L, 12V: $24,375
- 10,000L, 240V: $24,375
- 10,000L, 12V: $27,295
Dispenser
12V or 240V Italian Piusi pump, 30 micron water capture filter, auto shutoff trigger nozzle, lockable equipment cabinet and digital level indicator. Plug and play setup.
Ranger Controls
Power control box, emergency stop, automatic 10 minute timeout on continual use, digital fluid meter, and high and low alarms.
Tank, Compliance & Warranty
Double poly wall, self bunded construction in UV sun tough, flame retardant material. Mechanical overfill protection. Australian made, with a 5 year manufacturer's warranty and 110% secondary containment in line with AS1940:2017.
Freight & Delivery
Freight is quoted based on your location. Contact us on 1300 970 390 or info@homesteadhaven.com.au for a delivery quote.
Frequently Asked Questions
Do I need to build a separate bund?
No. This is a self bunded tank, with double poly walls that provide 110% secondary containment in a single unit.
What is the difference between the Essential, Ranger and Quantum?
The Essential is the entry level model. The Ranger adds a power control box, emergency stop, 10 minute auto timeout, a digital fluid meter and high and low alarms. The Quantum adds a 10 metre retractable hose reel and the Piusi MCBox fuel management system for tracking use across up to 120 users.
Should I choose the 12V or 240V Ranger?
Choose 240V if you have mains power at the tank site, or 12V if you are running the dispenser from a battery or vehicle supply. Contact us if you are not sure which suits your site.
Do you offer a price match guarantee?
Yes. Found it cheaper elsewhere? Let us know and we will do our best to beat it.
