Single Wall Bulk Diesel Storage Tank, 3 Sizes, 3 Configurations
Polymaster Bulk Diesel Storage Tank (Single Wall)
Straightforward above ground diesel storage for sites with an existing bund, or room to build one. Built from diesel grade Hexathene polyethylene with UV stabilisation, it is available as a tank only, or with a plug and play dispensing kit in either 12V or 240V. Choose 5000L, 7000L or 10000L to suit farming, civil, construction, fleet or mining applications.
✓ 5000L, 7000L & 10000L
✓ Tank Only, 12V Or 240V Kit
✓ Australian Made
✓ 5 Year Warranty
-
✓Diesel grade Hexathene construction
UV stabilised for Australian conditions, and Australian made -
✓Choose your configuration
Tank only, or with a dispensing kit in 12V or 240V -
✓Plug and play dispensing kit
Quality Italian pump in a lockable cabinet, with hose assembly, nozzle and meter -
✓Complies to AS1940:2017
When installed in an approved bund
Built For Fixed Site Storage
Designed for a permanent home on farms, work sites and depots, this tank is built from diesel grade Hexathene with UV stabilisation to handle harsh Australian conditions. It is certified to AS/NZS 4766 for polyethylene storage tanks, and complies to Australian Standard AS1940:2017 once installed in an approved bund.

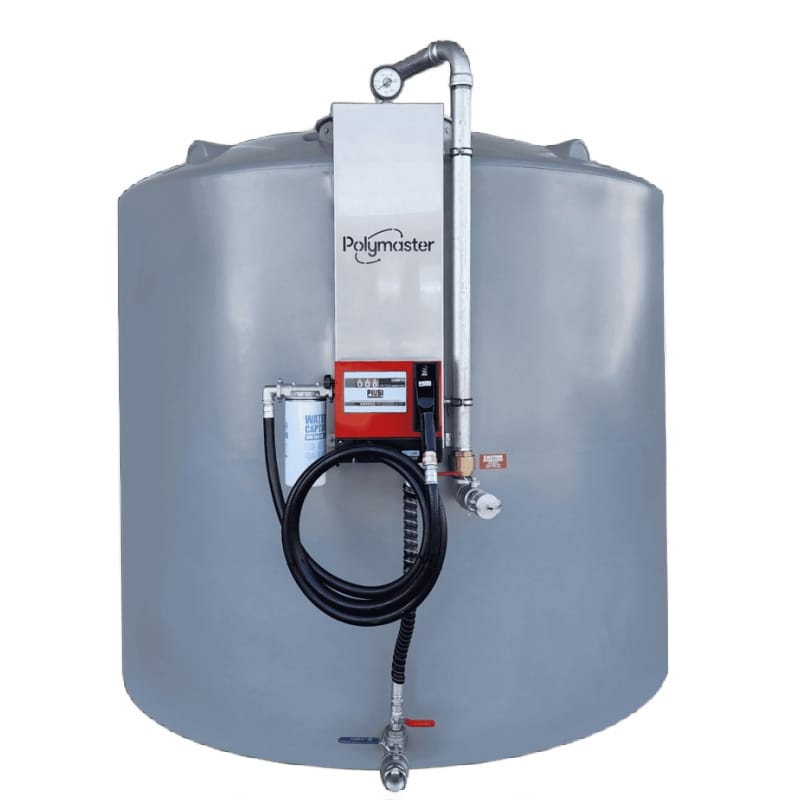

Add A Dispensing Kit

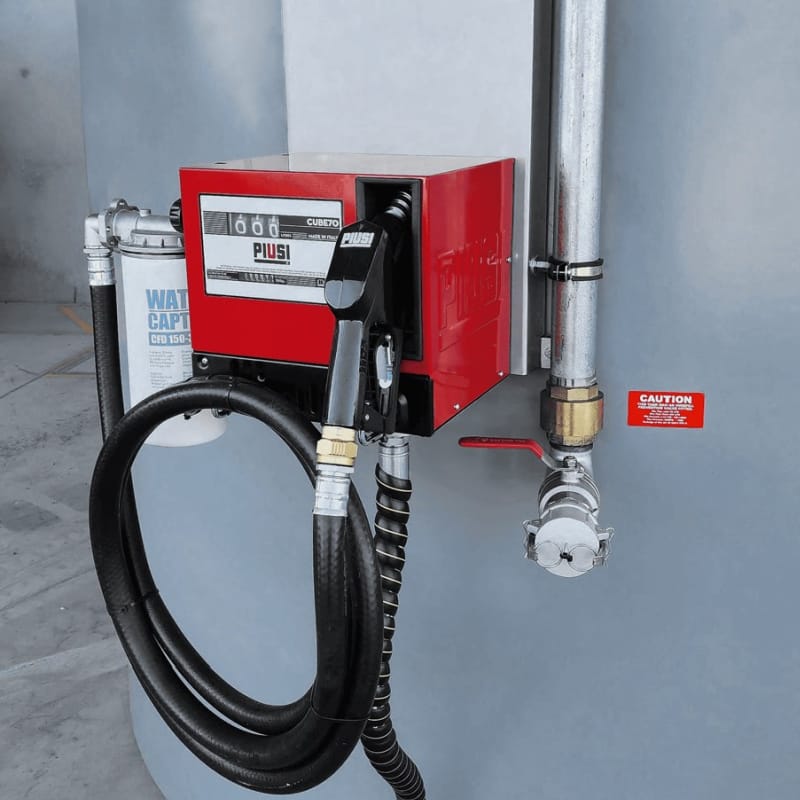

Choose the dispensing kit in 12V or 240V and you get a quality Italian pump in a lockable pump cabinet, plus a hose assembly, dispensing nozzle and meter, all set up for plug and play use. Prefer to supply your own pump? Choose the tank only option.
Ready For The Field

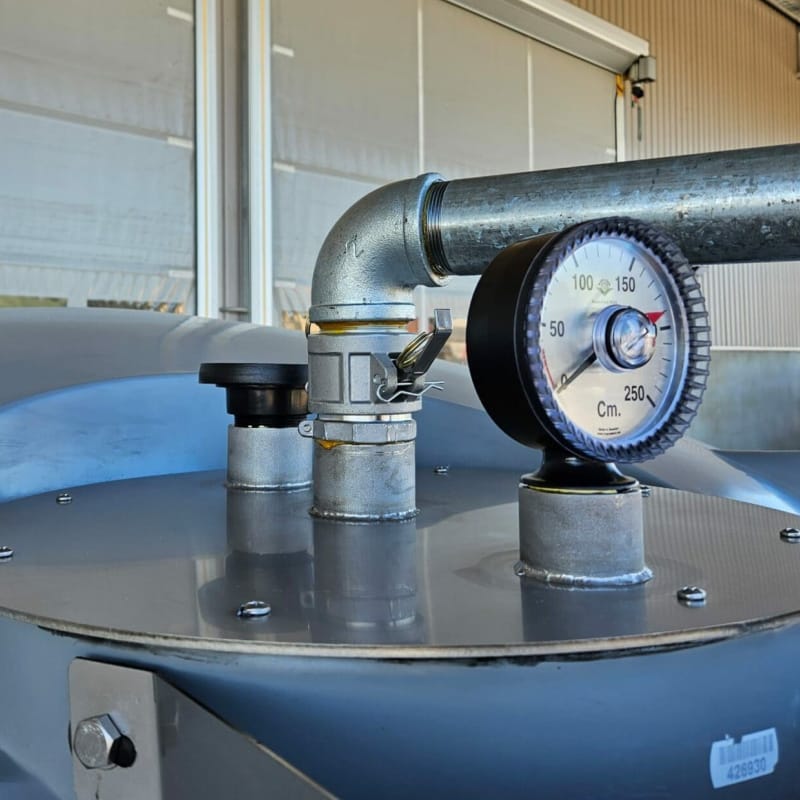

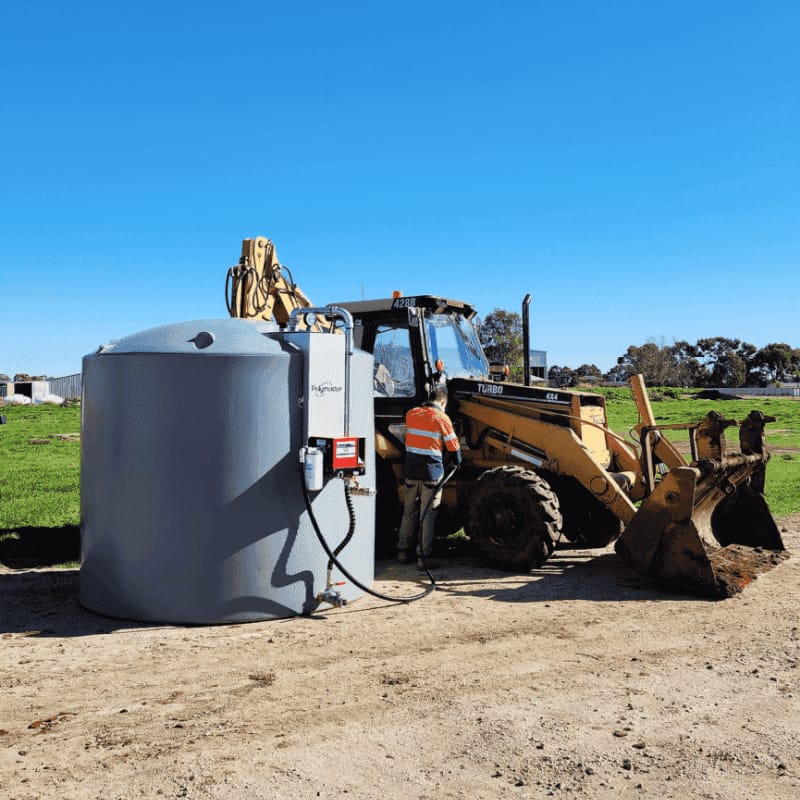

Every tank comes with a clock type level gauge, a 2 inch camlock fill point, a brass outlet with ball valve, mechanical overfill protection, an earthing rod and breathing vents, so it is ready for safe day to day operation whether you are refuelling a tractor, truck or fleet vehicle.
Sizes & Key Specs
- 5000L1800mm Diameter x 2200mm Height
- 7000L2200mm Diameter x 2200mm Height
- 10000L2500mm Diameter x 2380mm Height
- ConfigurationsTank only, or with a 12V or 240V dispensing kit
- BundRequired separately to contain 110% of tank capacity (AS1940:2017), not included
Specifications
Sizes & Pricing
- Tank only: 5000L $6,950, 10000L $8,570
- With dispensing kit, 12V: 5000L $9,600, 10000L $11,250
- With dispensing kit, 240V: 5000L $9,600, 7000L $10,650, 10000L $11,250
Dispensing Kit
Available in 12V or 240V. Quality Italian pump, lockable pump cabinet, hose assembly, dispensing nozzle and meter, in a plug and play setup.
Tank & Fittings
Diesel grade Hexathene construction, UV stabilised. Clock type level gauge, 2 inch camlock fill point, brass outlet with ball valve, mechanical overfill protection, earthing rod and breathing vents.
Origin, Compliance & Warranty
Australian made, with a 5 year warranty. Certified to AS/NZS 4766 and complies to AS1940:2017 when installed in an approved bund, which is required separately and is not included.
Freight & Delivery
Freight is quoted based on your location. Contact us on 1300 970 390 or info@homesteadhaven.com.au for a delivery quote.
Frequently Asked Questions
Does this come with a bund?
No. This is a single wall tank, so it has no built in secondary containment. Above ground diesel storage needs a bund capable of containing 110% of the tank's capacity to comply with AS1940:2017, and the bund is not included.
What is the difference between the tank only and dispensing kit options?
The tank only option is the storage tank with its standard fittings. The dispensing kit options add a quality Italian pump in a lockable cabinet with a hose assembly, nozzle and meter, in either 12V or 240V, ready for plug and play use.
Should I choose the 12V or 240V dispensing kit?
Choose 240V if you have mains power at the tank site, or 12V if you are running the pump from a battery or vehicle supply. Contact us if you are not sure which suits your site.
Do you offer a price match guarantee?
Yes. Found it cheaper elsewhere? Let us know and we will do our best to beat it.
