Self Bunded Diesel Storage Tank, 10,000L, 240V Dispenser
Polymaster Essential Self Bunded Diesel Tank (240V)
A tank within a tank. Double poly walls contain any spill, giving you 110% secondary containment in a single unit with no separate bund to build. The Essential 10,000L comes with a plug and play 240V dispenser, making it a straightforward fuel storage solution for farms, mining, construction, fleet and trade sites.
✓ 10,000L Capacity
✓ 110% Secondary Containment
✓ 240V Piusi Pump
✓ 5 Year Warranty
-
✓Self bunded, double wall
110% secondary containment in one unit -
✓Italian Piusi 240V pump
Rated to 70LPM, with an auto shutoff trigger nozzle -
✓30 micron water capture filter
Helps keep water out of your fuel -
✓Lockable equipment cabinet
Keeps the pump and fittings secure

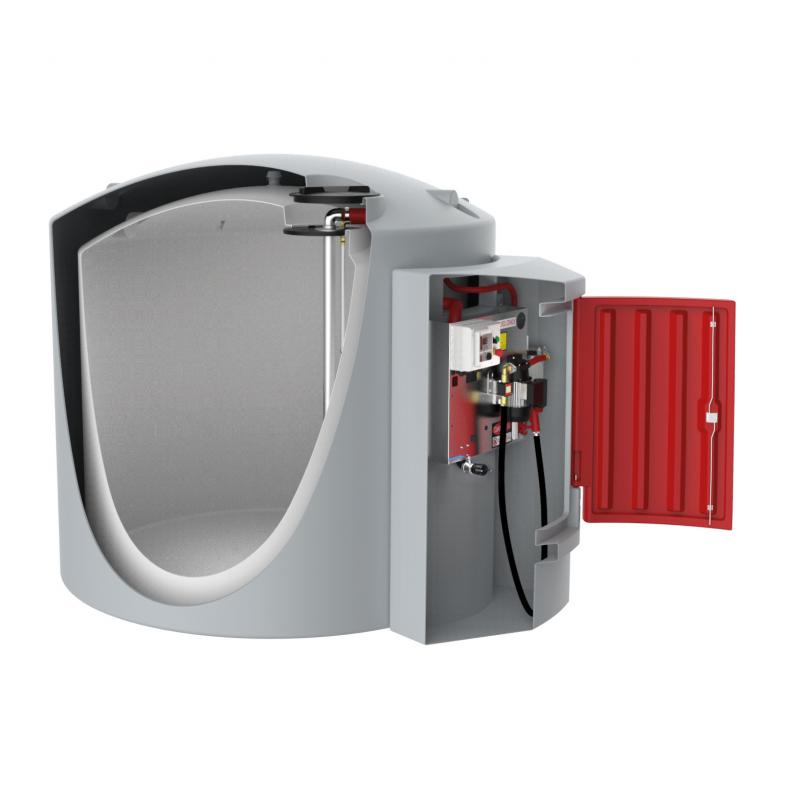

A Tank Within A Tank
The self bunded design puts one poly tank inside another, so any spill from the inner tank is contained by the outer wall. It is made from UV sun tough, flame retardant material, manufactured in Australia, and provides the 110% secondary containment that AS1940:2017 calls for.

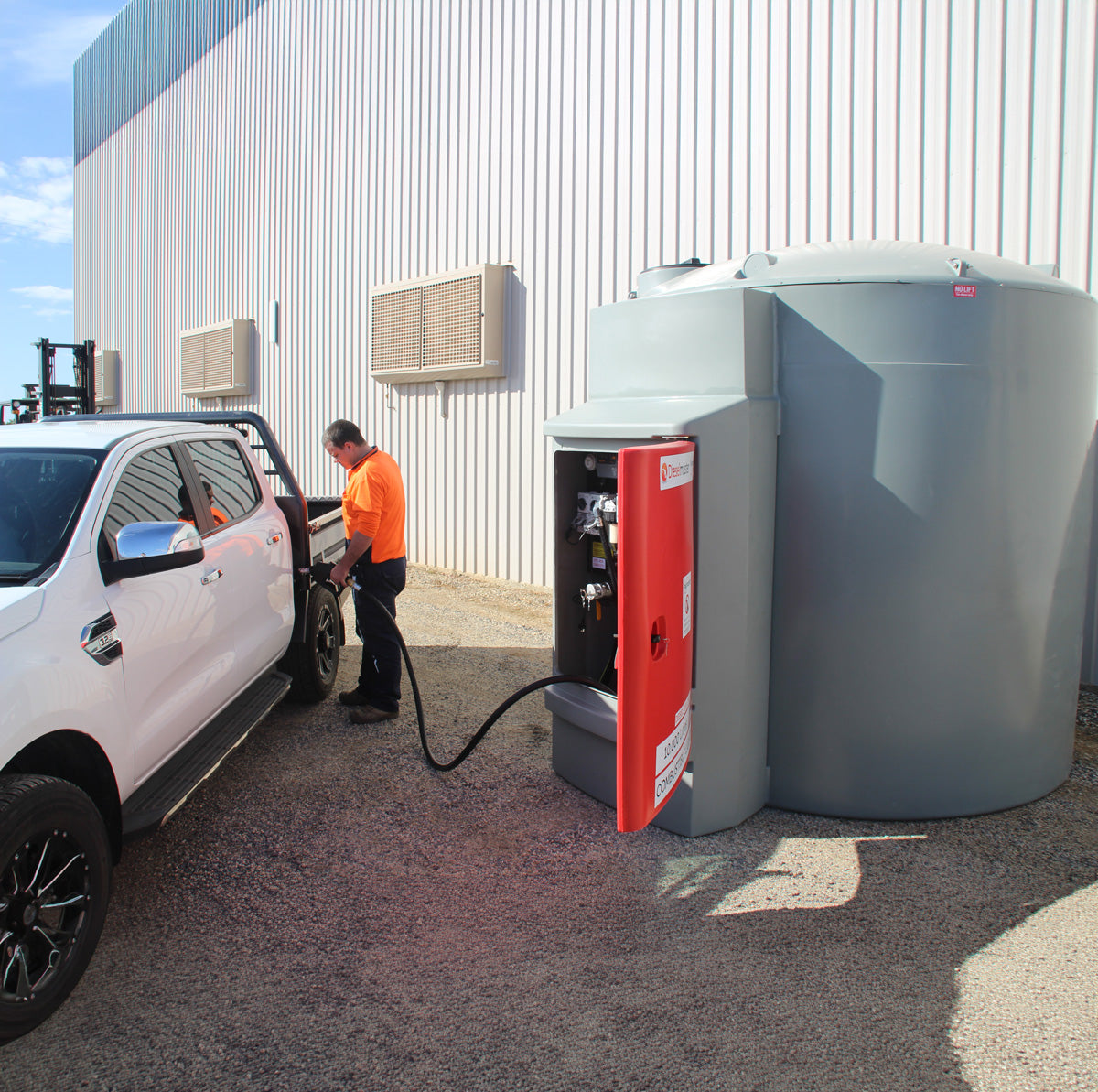

Dispenser Ready To Go
The dispenser is a plug and play setup with an Italian Piusi 240V pump rated to 70LPM, a 30 micron water capture filter, an auto shutoff trigger nozzle and a digital level indicator, all behind a lockable equipment cabinet. A licensed electrician is required for all electrical connections.
Simple To Set Up On Site
Place it on a firm, level surface, as a concrete pad is not mandatory. A 2 inch camlock ball valve fill point and mechanical overfill protection make filling safer. Separation distances from buildings, boundaries and ignition sources set out in AS1940:2017 must be observed, so check your site requirements before installing.
Key Specs
- Capacity10,000L
- Power240V
- PumpItalian Piusi, rated to 70LPM
- Containment110% secondary containment, self bunded
- Fill Point2 inch camlock ball valve
Specifications
Size & Pricing
- 10,000L, $18,990
Dispenser
Italian Piusi 240V pump rated to 70LPM, 30 micron water capture filter, auto shutoff trigger nozzle, lockable equipment cabinet and digital level indicator. Plug and play setup.
Tank & Fittings
Double poly wall, self bunded construction in UV sun tough, flame retardant material. Mechanical overfill protection and a 2 inch camlock ball valve fill point.
Origin, Compliance & Warranty
Australian made, with a 5 year manufacturer's warranty. Provides 110% secondary containment in line with AS1940:2017.
Freight & Delivery
Freight is quoted based on your location. Contact us on 1300 970 390 or info@homesteadhaven.com.au for a delivery quote.
Frequently Asked Questions
Do I need to build a separate bund?
No. This is a self bunded tank, with double poly walls that provide 110% secondary containment in a single unit.
What is the difference between the Essential, Ranger and Quantum?
The Essential is the entry level model. The Ranger adds a power control box, emergency stop, 10 minute auto timeout, a digital fluid meter and high and low alarms. The Quantum adds a 10 metre retractable hose reel and the Piusi MCBox fuel management system for tracking use across up to 120 users.
Do I need an electrician to install it?
Yes. A licensed electrician is required for all electrical connections.
Do you offer a price match guarantee?
Yes. Found it cheaper elsewhere? Let us know and we will do our best to beat it.
