Hard Frame Solar Panel
iTechWorld 250W Hard Frame Solar Panel 22V

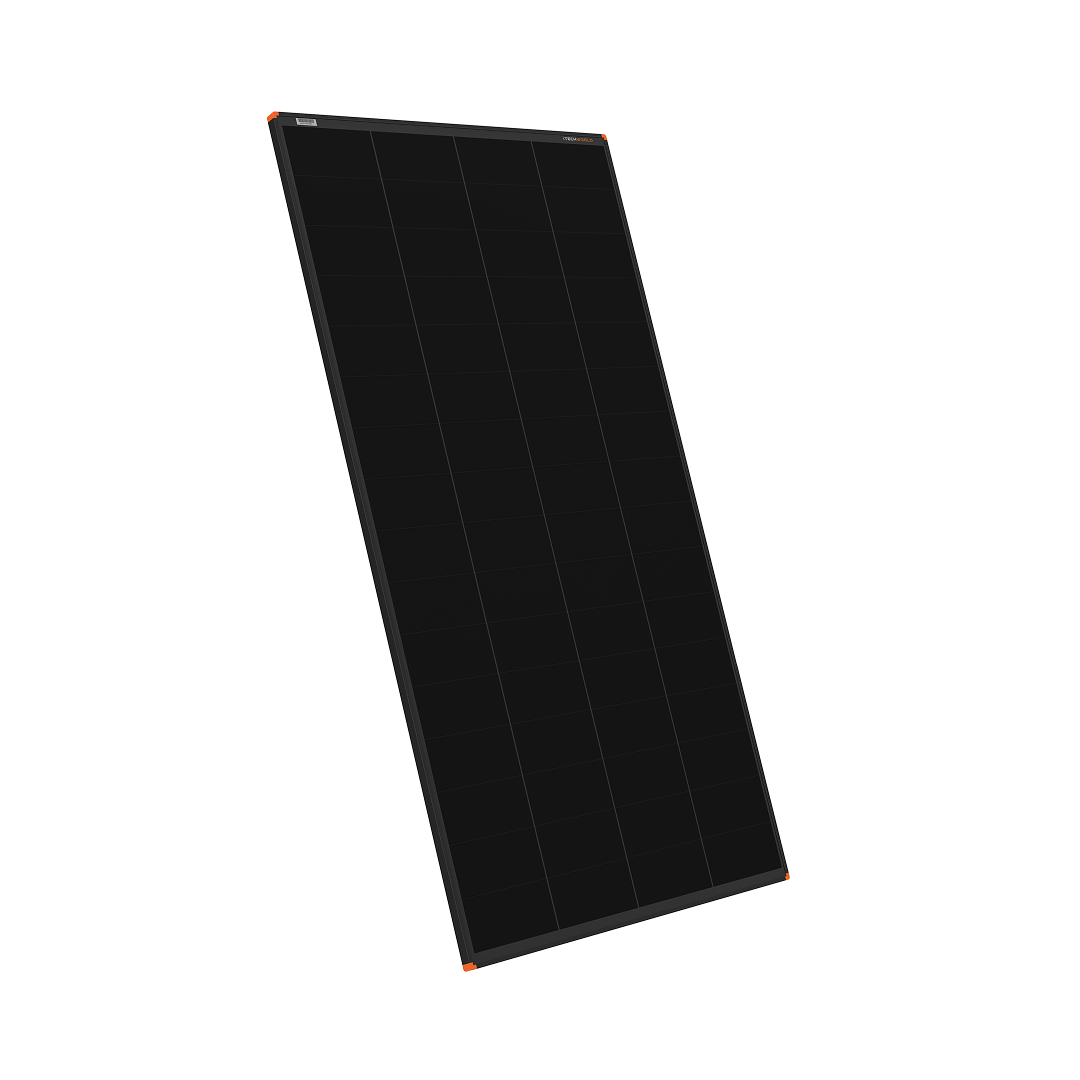

A 250W hard frame solar panel with HPX PRO monocrystalline cells and a tempered glass face. Only 17mm thick and IP67 rated, it is designed for caravans, 4WDs and off-grid systems. Designed and developed in Australia by iTechWorld.
✓ 250W Output✓ 17mm Thin Profile✓ IP67 Waterproof✓ Australian Designed
-
✓High current output
12.89A at maximum power for fast charging -
✓Shade tolerant charging
HPX PRO technology limits power loss in partial shade -

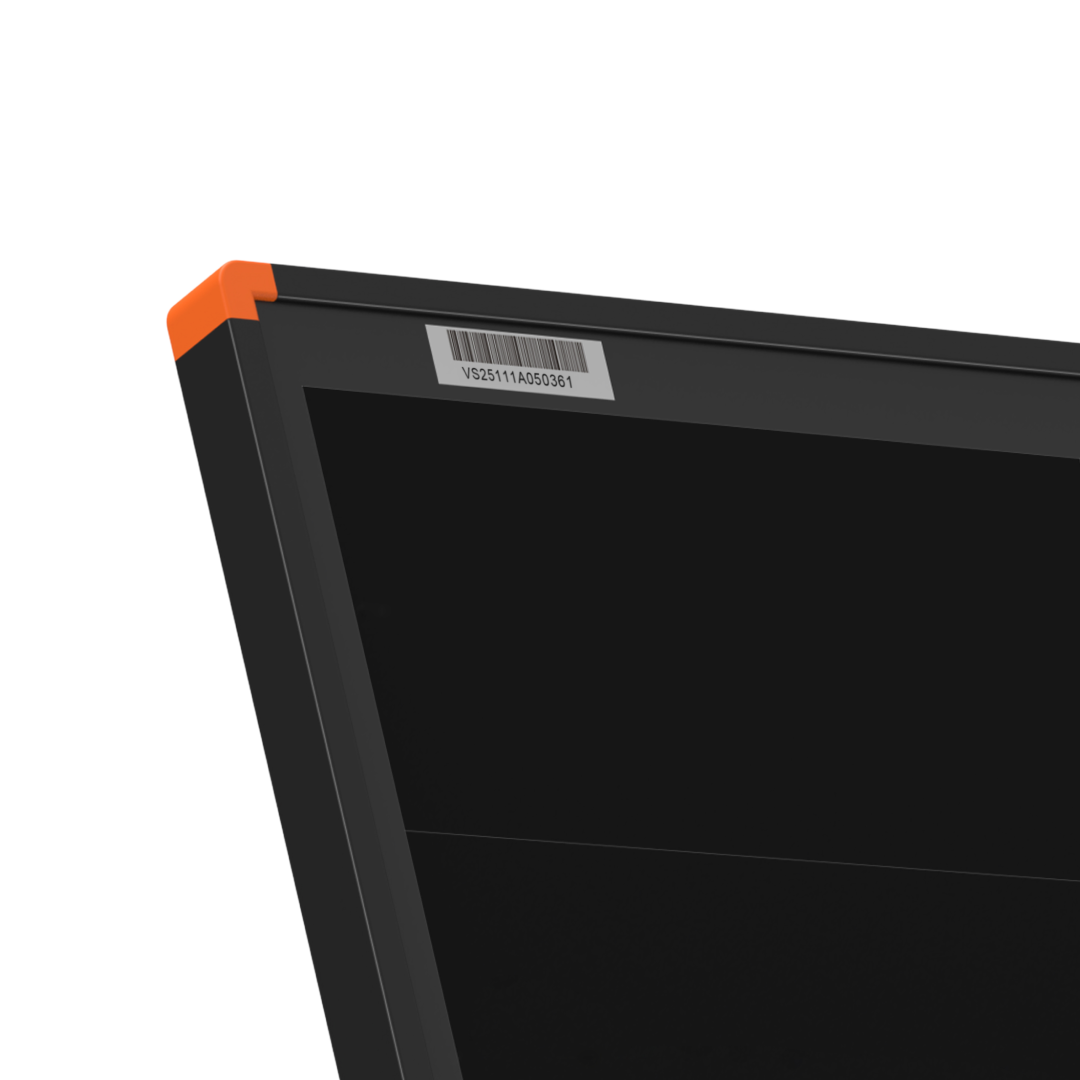

✓Tough hard frame
Tempered glass and a reinforced frame for hail and rough conditions -
✓12V and 24V compatible
Works with most MPPT or PWM solar charge controllers
Built For Roofs And Rough Roads
The slim 17mm profile and reinforced frame make this panel a practical fit for caravan roofs, 4WD canopies and off-grid setups. Mount it flat on a vehicle or angle it 15 to 30 degrees toward the sun for a fixed installation. Mounting brackets are sold separately.
Specifications
- Rated Power250W (±3%)
- Voltage at Max Power (Vmp)19.4V
- Current at Max Power (Imp)12.89A
- Open Circuit Voltage (Voc)22.97V
- Short Circuit Current13.65A
- Cell TypeMonocrystalline, HPX PRO
- LaminationTempered glass
- Dimensions1600mm L x 770mm W x 17mm H
- Weight12.3kg
- Max System Voltage1000VDC
- Max Series Fuse Rating20A
- Operating Temperature-40°C to 85°C

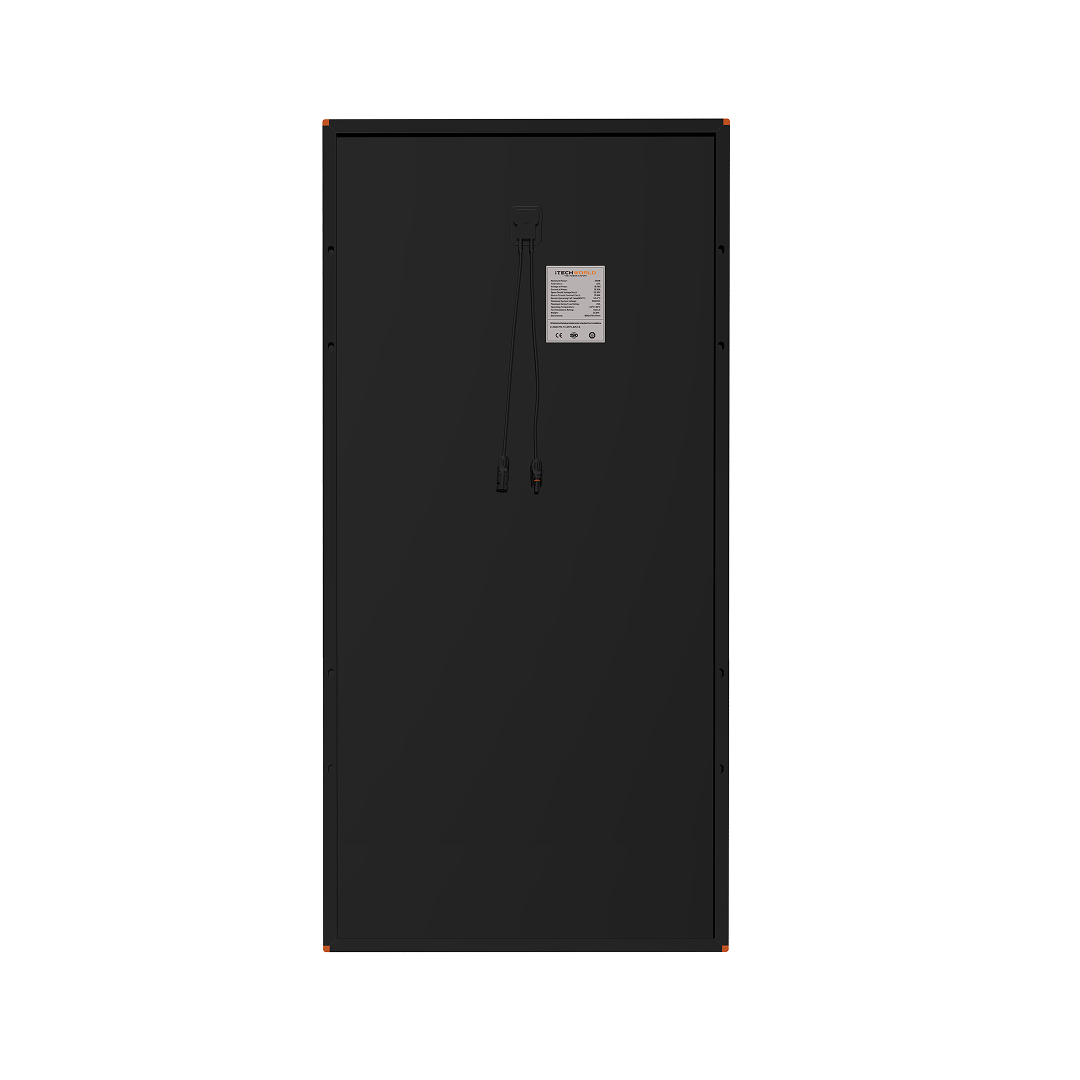

- CablesTwo downward cables with junction box
- Waterproof RatingIP67
- Warranty1 year
Frequently Asked Questions
What is HPX PRO technology?
HPX PRO cells are designed for better efficiency and durability, and to keep performing in real world conditions such as partial shade.
Is it suitable for coastal or marine use?
Yes. The corrosion resistant frame and materials suit coastal and marine environments.
What systems is it compatible with?
It suits most 12V and 24V setups and standard MPPT or PWM solar charge controllers.
How should I clean it?
Use a soft cloth and soapy water. Avoid abrasives and harsh chemicals.
