Short Hard Frame Solar Panel

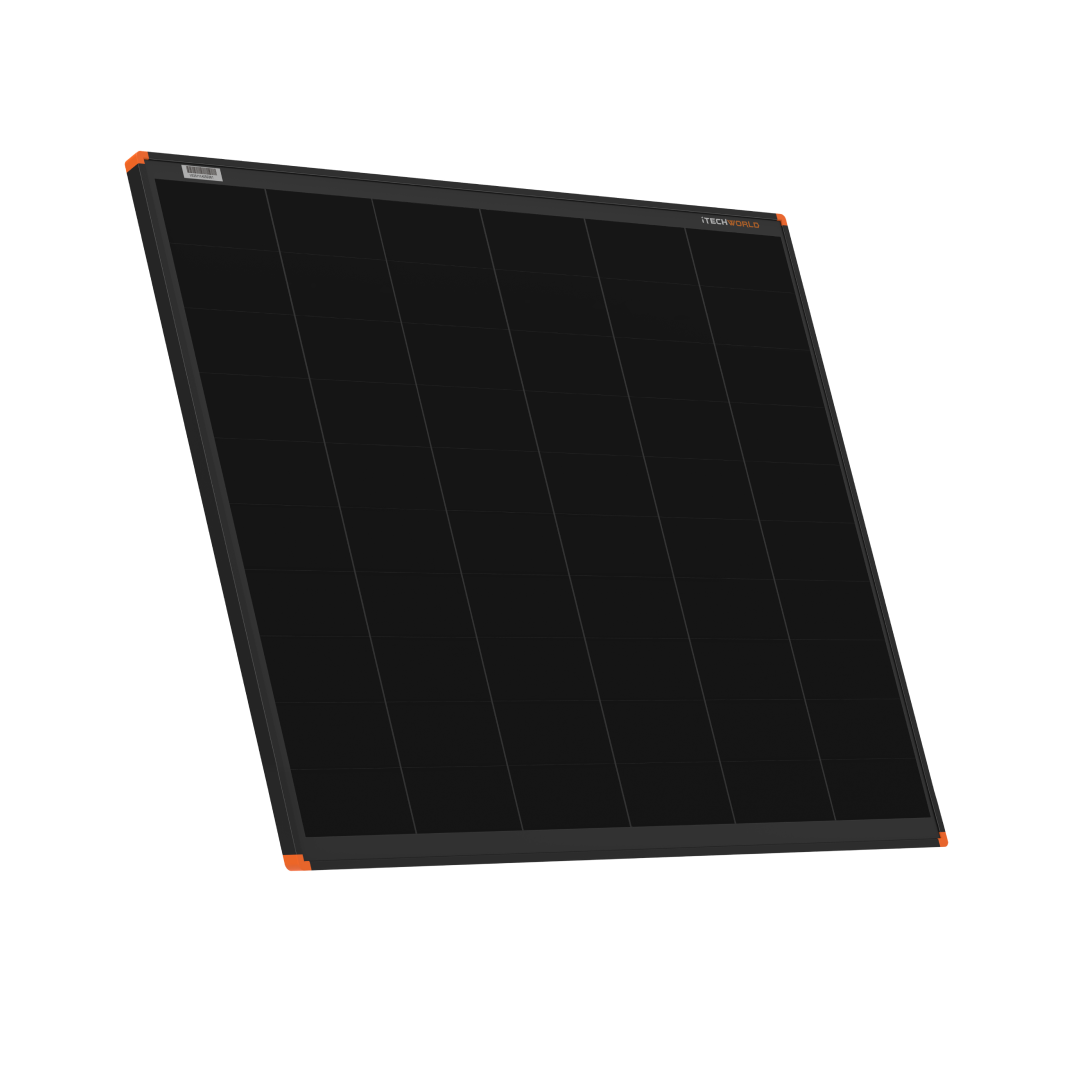

iTechWorld 170W Short Hard Frame Solar Panel 22V

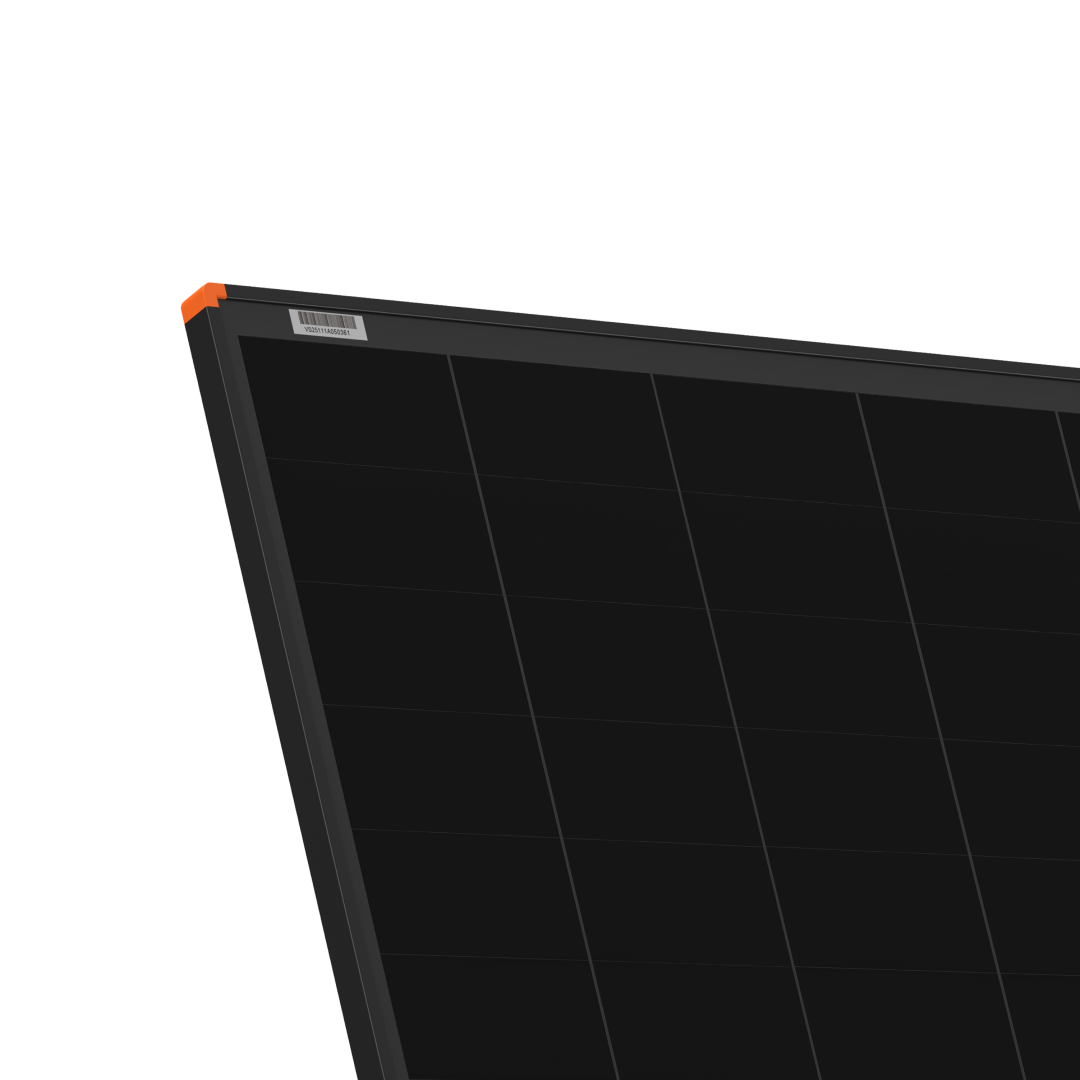

A compact 170W hard frame solar panel with HPX PRO monocrystalline cells and tempered glass, in a shorter, squarer shape. Just 17mm thick and IP67 rated, it is popular for caravan, 4WD and canopy installations. Designed and developed in Australia by iTechWorld.
✓ 170W Output✓ Compact Footprint✓ 17mm Thin Profile✓ IP67 Waterproof
-
✓9.43A output
Strong charging current at maximum power -
✓Shade tolerant charging
HPX PRO technology limits power loss in shade -
✓Lightweight at 9kg
Easy to handle and mount -

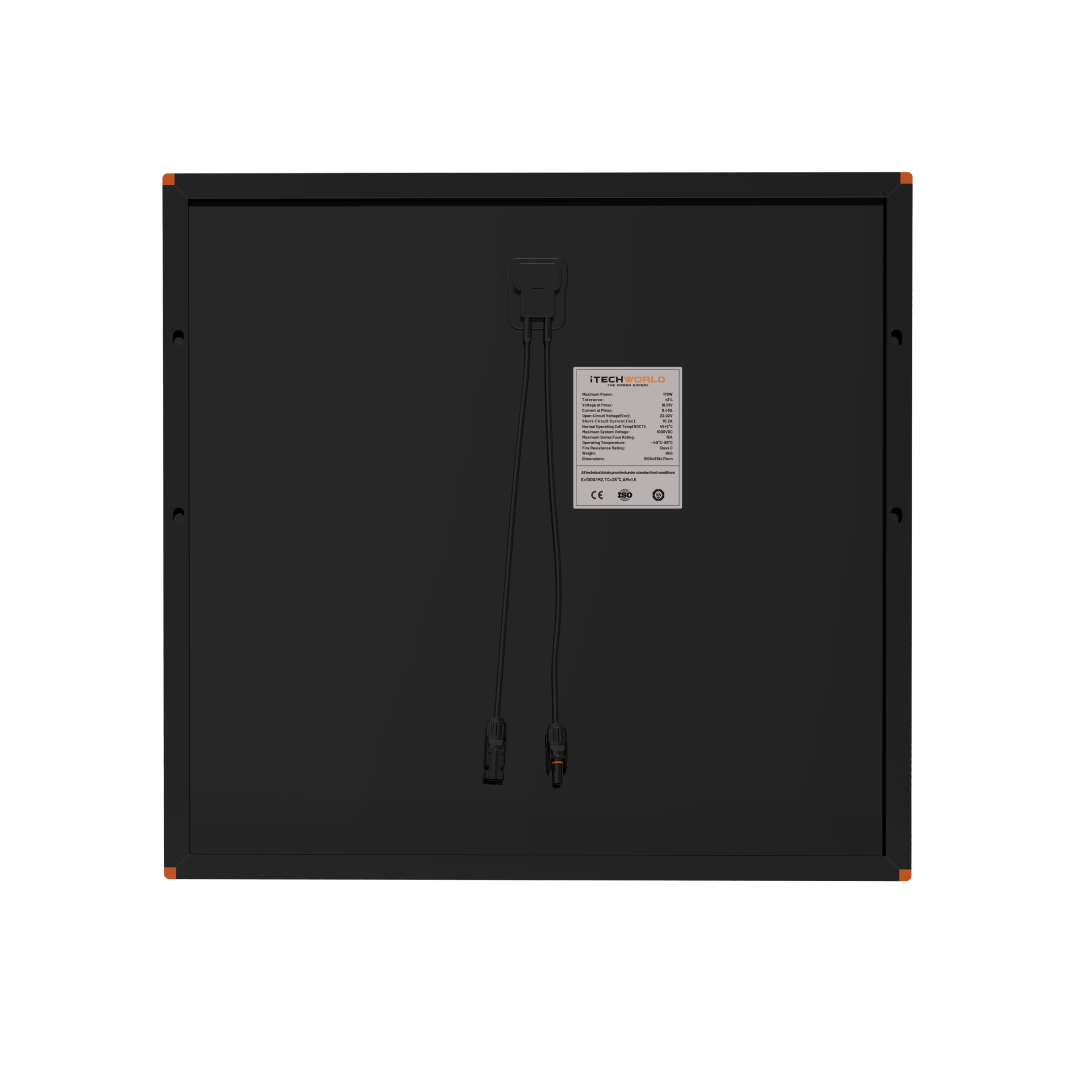

✓Connectors and cables included
Ready to wire into your system
Fits Where Long Panels Cannot
At 1000mm by 910mm, the short format suits compact roofs and canopies with limited length. It is designed for roof and external mounting. Mounting brackets are sold separately.
Specifications
- Rated Power170W (±3%)
- Voltage at Max Power (Vmp)18.01V
- Current at Max Power (Imp)9.43A
- Open Circuit Voltage (Voc)22.02V
- Short Circuit Current10.2A
- LaminationTempered glass
- Dimensions1000mm x 910mm x 17mm
- Weight9kg
- Max System Voltage1000VDC
- Max Series Fuse Rating15A
- Operating Temperature-40°C to 85°C
- Waterproof RatingIP67
- Warranty1 year
Frequently Asked Questions
How is this different from the standard 170W panel?
It has the same 170W rating but a shorter, squarer shape, which suits roofs and canopies with limited length.
Does it work in partial shade?
HPX PRO technology is designed to limit power loss under shade. Output is still best in direct sun.
Are mounting brackets included?
No. Mounting brackets are sold separately.
