Hard Frame Solar Panel

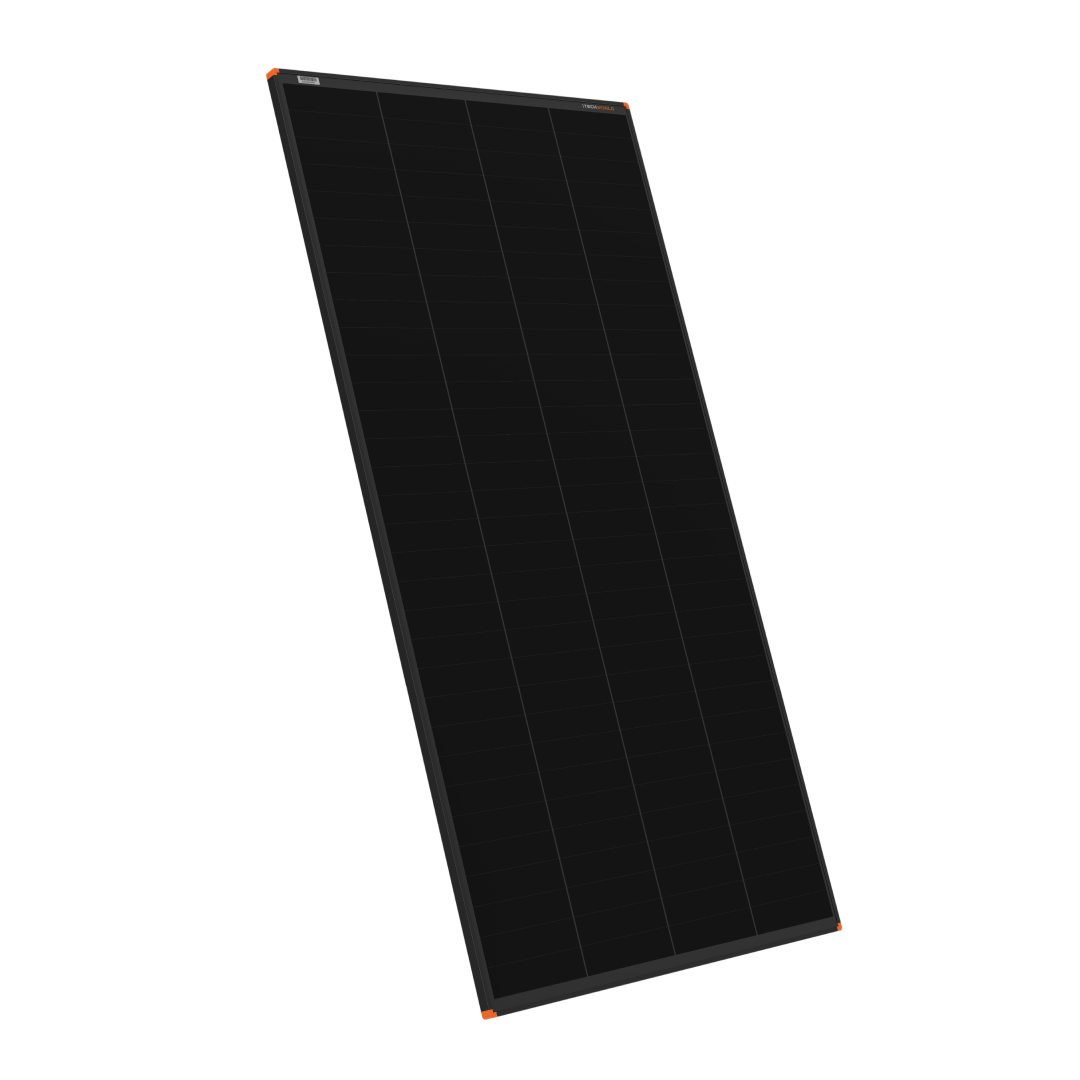

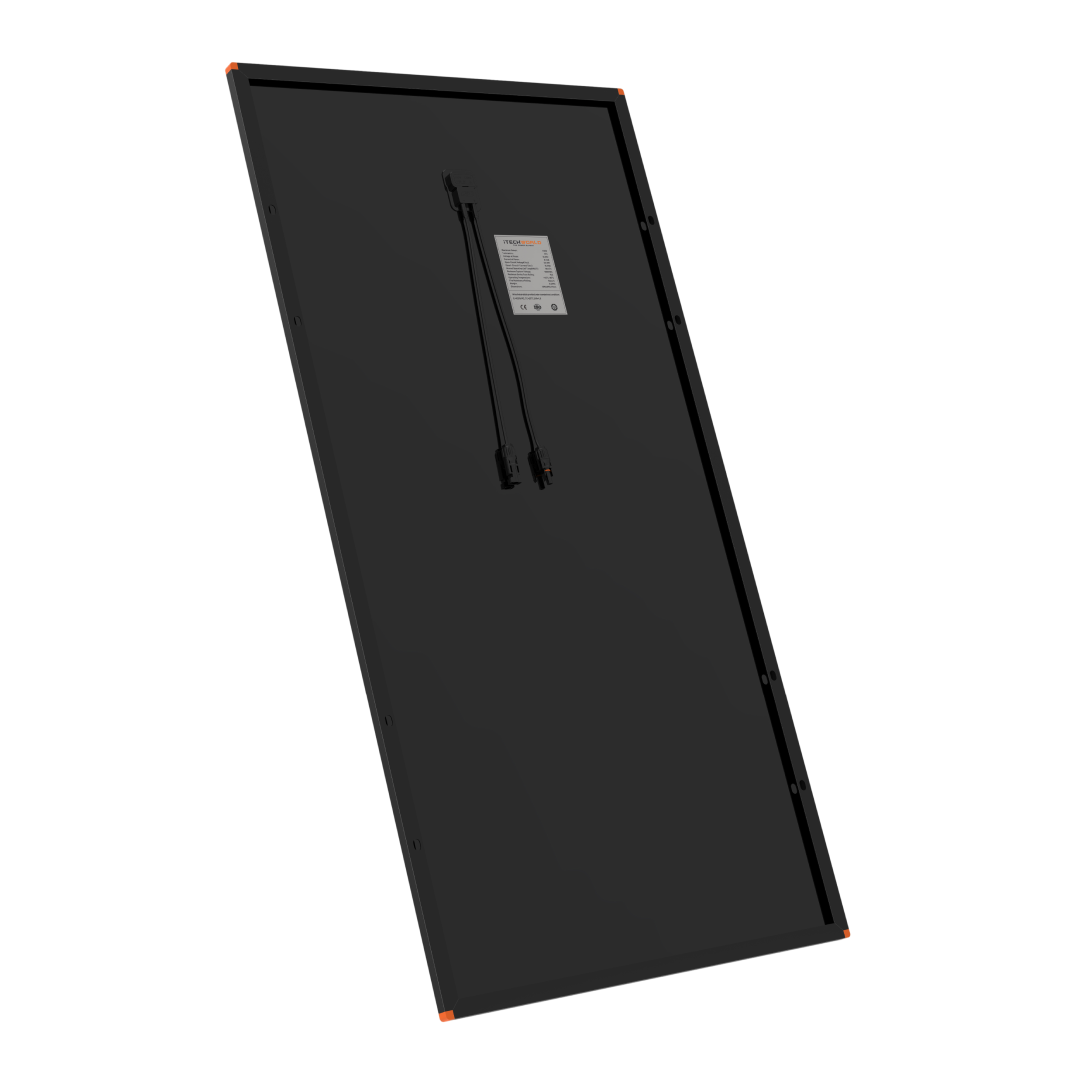

iTechWorld 170W Hard Frame Solar Panel 22V
A compact 170W hard frame solar panel with HPX PRO monocrystalline cells and tempered glass. Only 17mm thick and IP67 rated, it is built for off-grid charging on caravans and 4WDs. Designed and developed in Australia by iTechWorld.
✓ 170W Output✓ 17mm Thin Profile✓ IP67 Waterproof✓ Australian Designed
-
✓9.42A output
Solid charging current at maximum power -
✓Shade tolerant charging
Useful output on overcast days, early mornings and shaded campsites -
✓Lightweight at 9.12kg
Easier to lift, carry and mount -

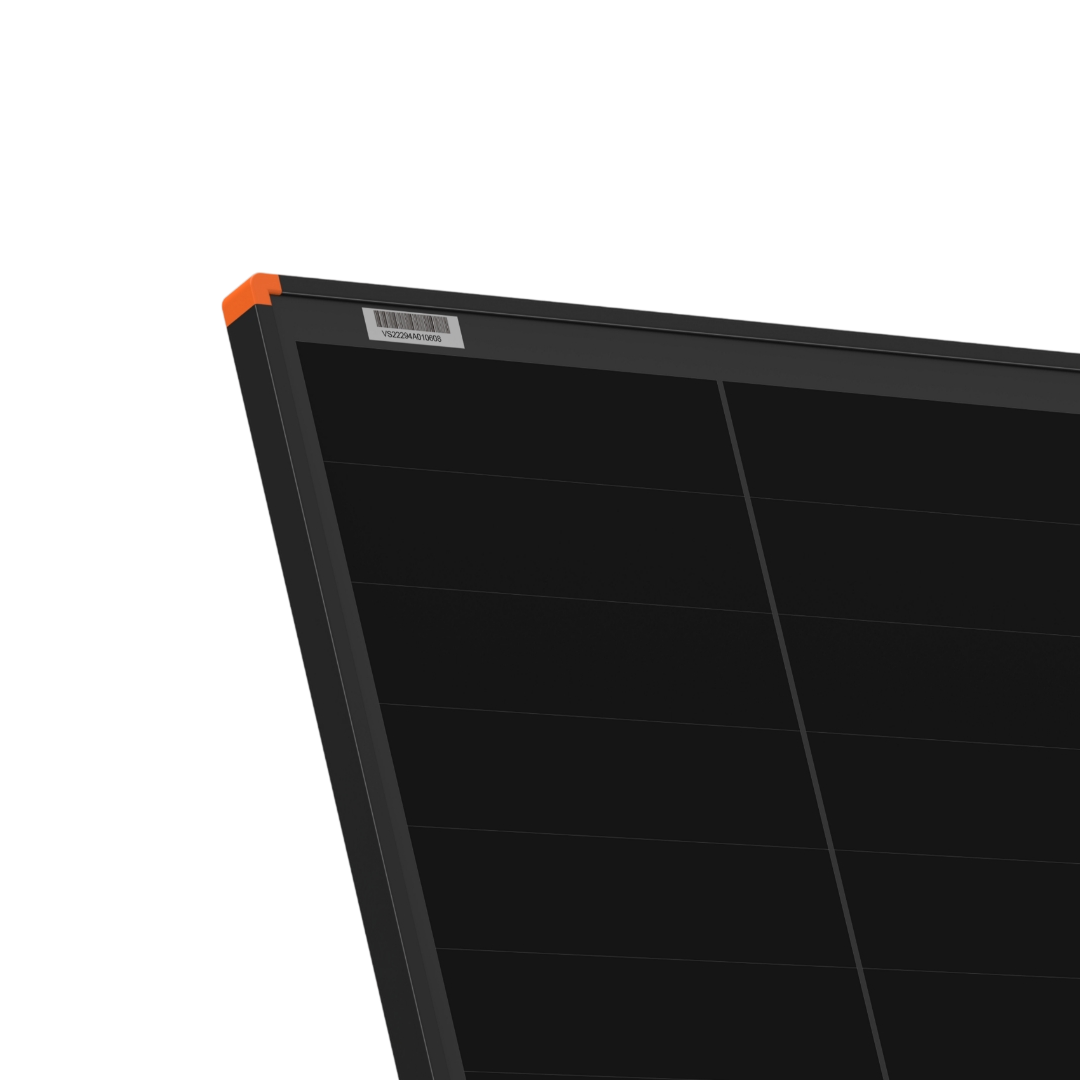

✓Tempered glass, hard frame
Built for corrugated roads and permanent mounting
A Sensible Size For Smaller Roofs
At 1310mm by 670mm, the 170W panel fits where a larger panel will not, and it charges a battery system through any suitable solar regulator or charge controller. Fit it with purpose built mounting brackets and leave airflow underneath for cooling. Brackets are sold separately.
Specifications
- Rated Power170W (±3%)
- Voltage at Max Power (Vmp)18.03V
- Current at Max Power (Imp)9.42A
- Open Circuit Voltage (Voc)22.28V
- Short Circuit Current10.3A
- Cell TypeMonocrystalline, HPX PRO
- LaminationTempered glass
- Dimensions1310mm L x 670mm W x 17mm H
- Weight9.12kg
- Max System Voltage1000VDC
- Max Series Fuse Rating15A
- Operating Temperature-40°C to 85°C
- Waterproof RatingIP67
- Warranty12 months
Frequently Asked Questions
Does it work in partial shade?
HPX PRO cells produce useful power in overcast conditions, light cloud, early mornings and shaded campsites.
Do I need mounting brackets?
Purpose built fixed or adjustable brackets work best, with airflow underneath. Brackets are sold separately.
Can it charge my battery system?
Yes, through a suitable solar regulator or charge controller.
What is included?
One 170W 22V hard frame solar panel.
