Hard Frame Solar Panel

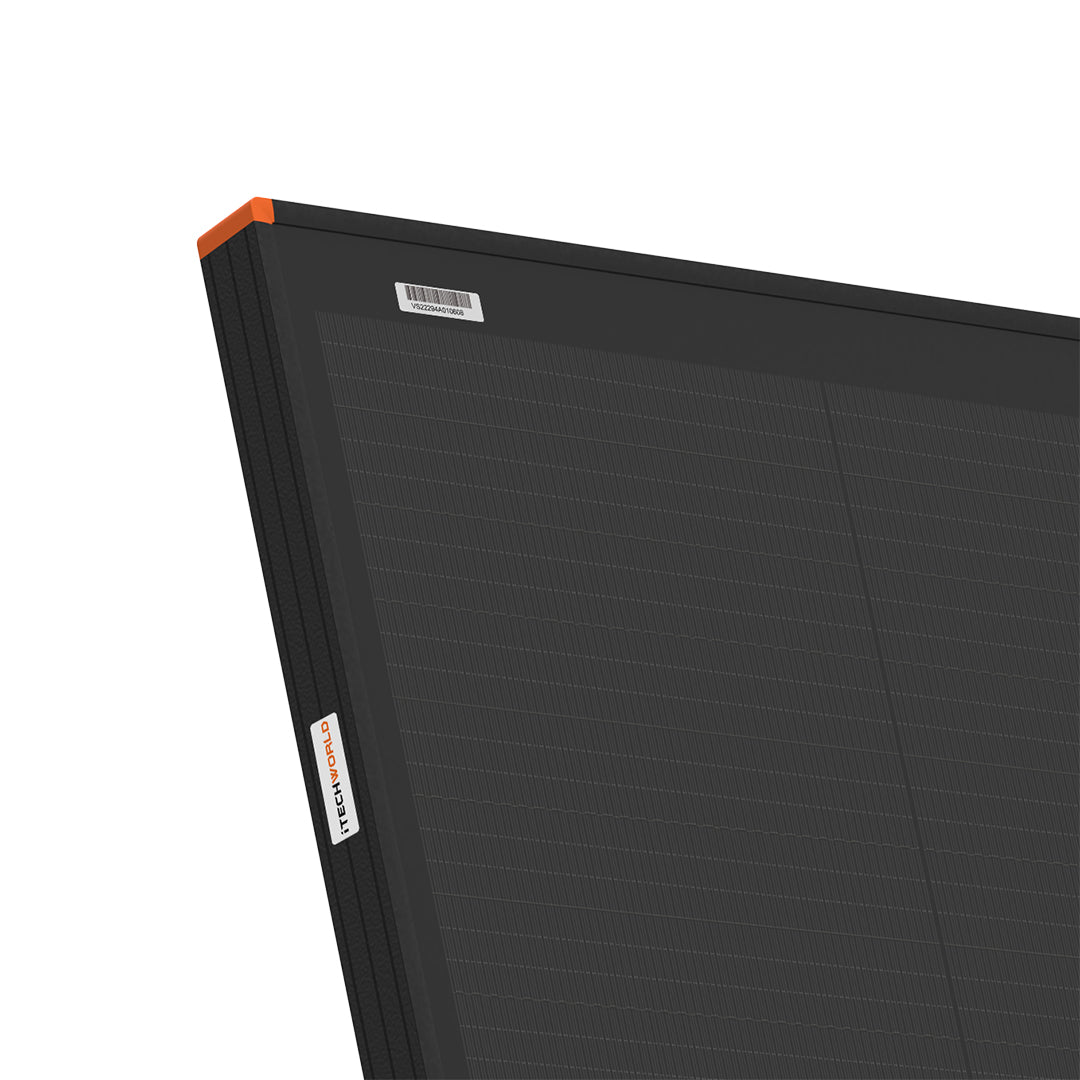

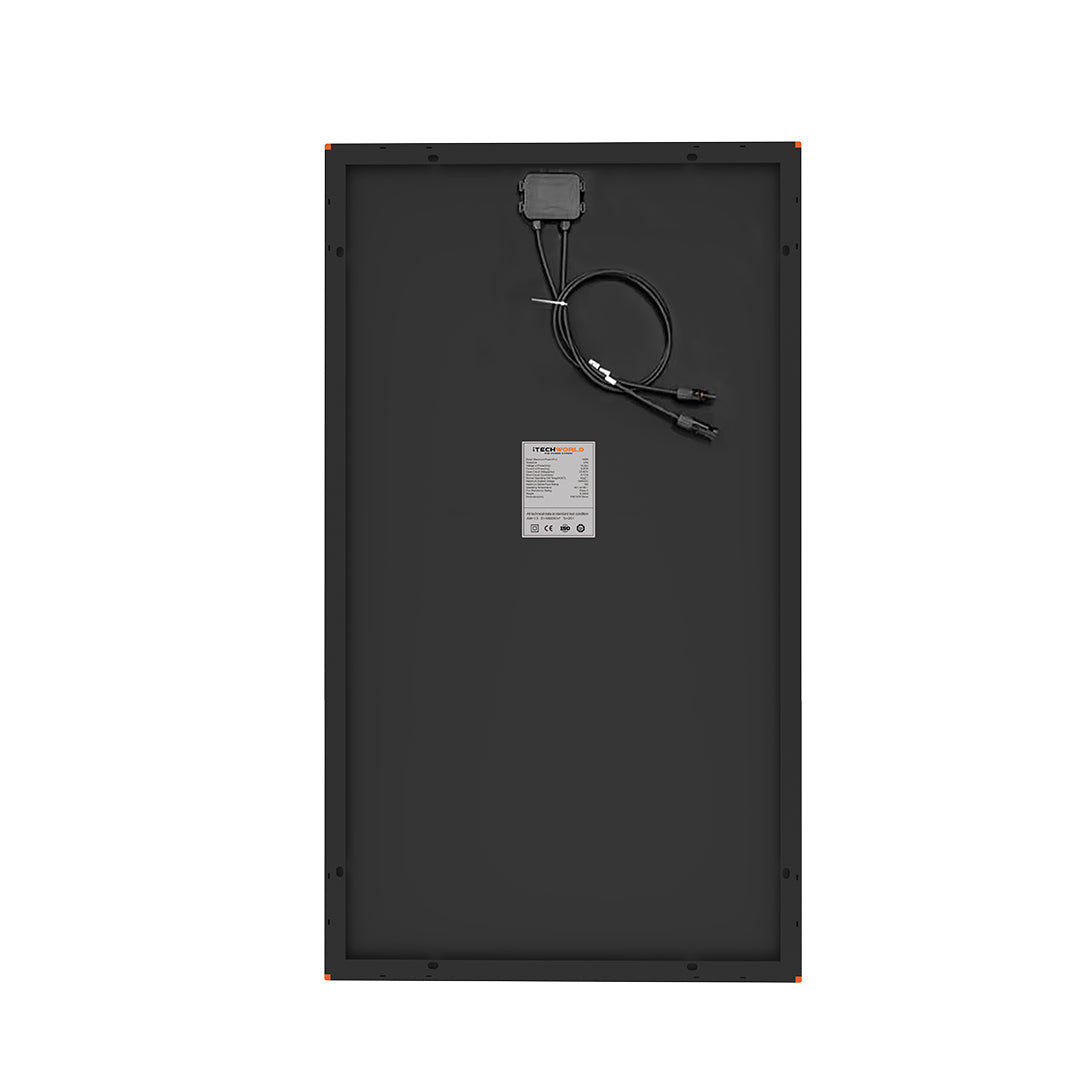

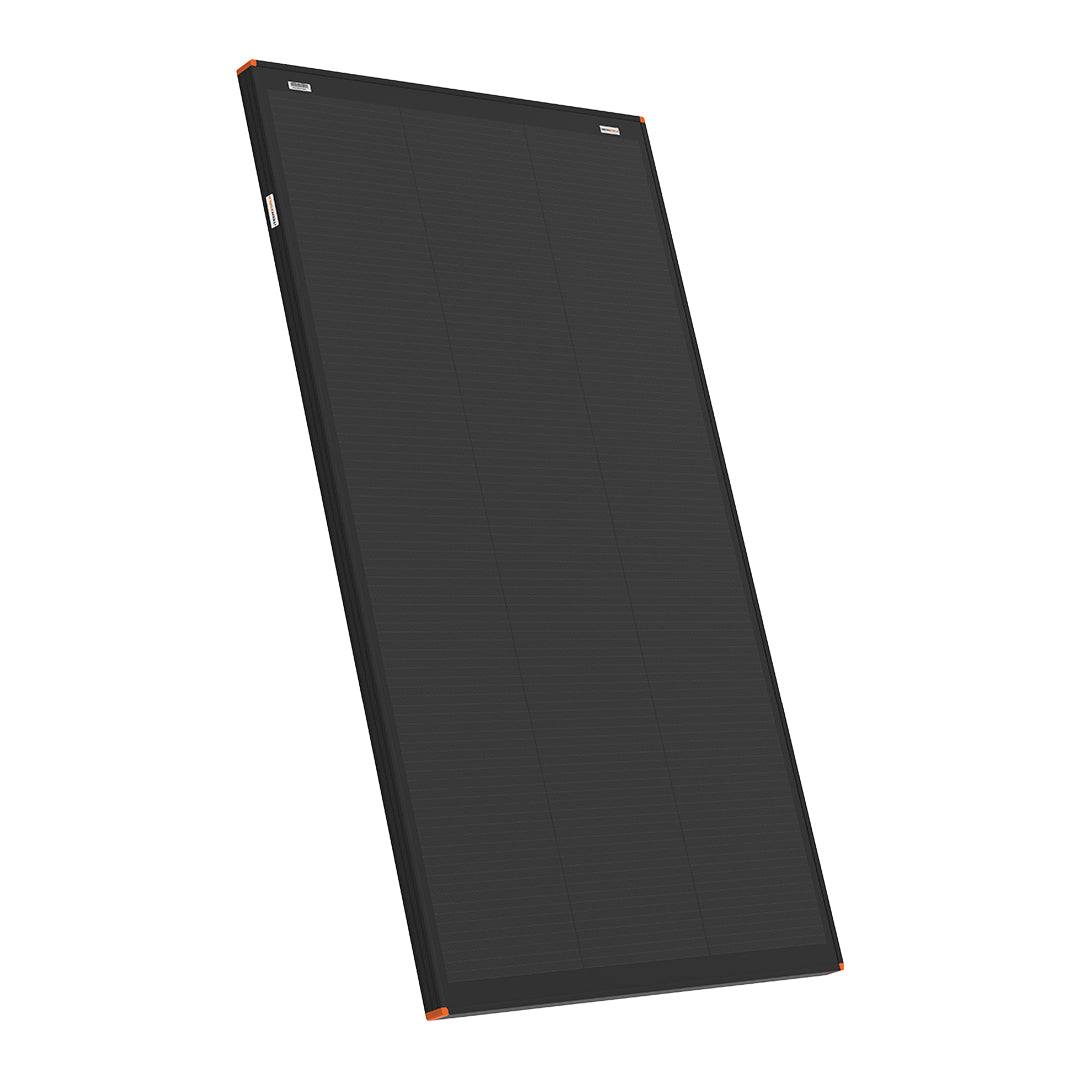

iTechWorld 150W Hard Frame Solar Panel 22V / 27V

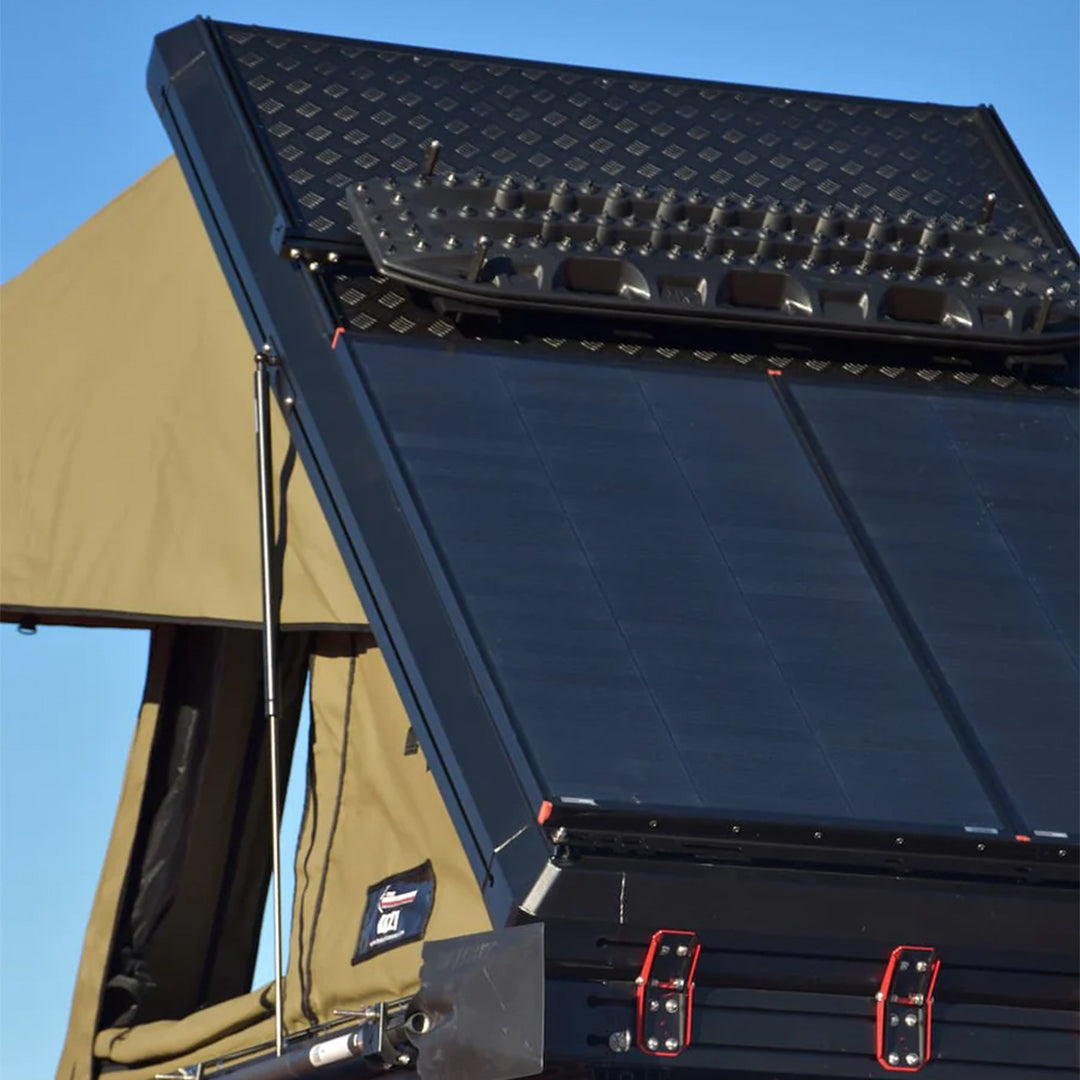

A compact 150W hard frame solar panel with HPX PRO cells and a tempered glass face, available in 22V or 27V open circuit voltage. Just 17mm thick and IP67 rated, it suits caravans, 4WDs and off-grid systems. Designed and developed in Australia by iTechWorld.
✓ 150W Output✓ 17mm Thin Profile✓ IP67 Waterproof✓ 22V or 27V
-
✓HPX PRO technology
Higher efficiency and better low light performance -
✓Shade tolerant charging
Limits the drop in output when partly shaded -
✓Suits all battery types
Connects to your battery system through a charge controller -
✓Slim black frame
Thinner and lighter than comparable framed panels
Choose The Right Voltage
Select 22V or 27V before you add to cart. All panels in a system must have a matching open circuit voltage, so do not connect panels of different voltages in series or parallel. Mounting brackets are sold separately.
Specifications
22V Panel
- Rated Power150W (±3%)
- Voltage at Max Power (Vmp)18.3V
- Current at Max Power (Imp)8.2A
- Open Circuit Voltage (Voc)22.4V
- Short Circuit Current8.7A
- Weight9.3kg
27V Panel
- Rated Power150W (±3%)
- Voltage at Max Power (Vmp)22.2V
- Current at Max Power (Imp)6.8A
- Open Circuit Voltage (Voc)27.5V
- Short Circuit Current7.3A
- Weight7.8kg
Both Versions
- Dimensions1160mm L x 670mm W x 17mm H
- LaminationTempered glass
- Max System Voltage1000VDC
- Max Series Fuse Rating15A
- Operating Temperature-40°C to 85°C
- Waterproof RatingIP67
- Warranty1 year
Configuration & Pricing
- 22V$149
- 27V$199
Frequently Asked Questions
Which voltage should I choose?
Match the open circuit voltage of any panels already in your system. Panels of different voltages must not be connected in series or parallel.
What makes HPX PRO technology different?
HPX PRO cells are built for higher efficiency and better low light performance, so you get more usable power through the day.
How does it perform in partial shade?
HPX PRO cells handle shading better than older designs by limiting the overall drop in efficiency.
How do I maintain it?
Rinse with fresh water and wipe with a soft cloth. No harsh chemicals are needed.
Do you offer a price match guarantee?
Yes. Found it cheaper elsewhere? Let us know and we will do our best to beat it.
