Ultra Thin Hard Frame Solar Panel

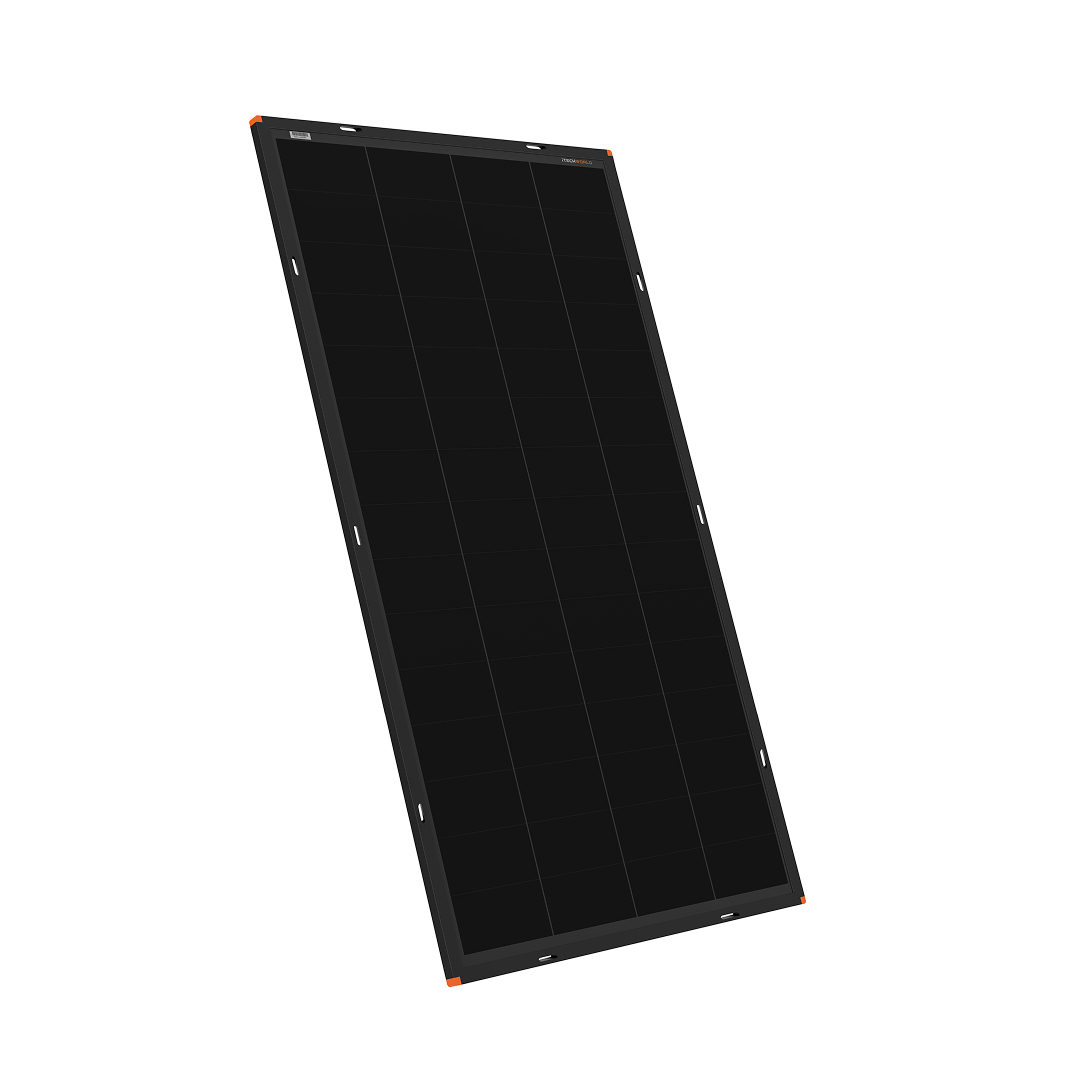

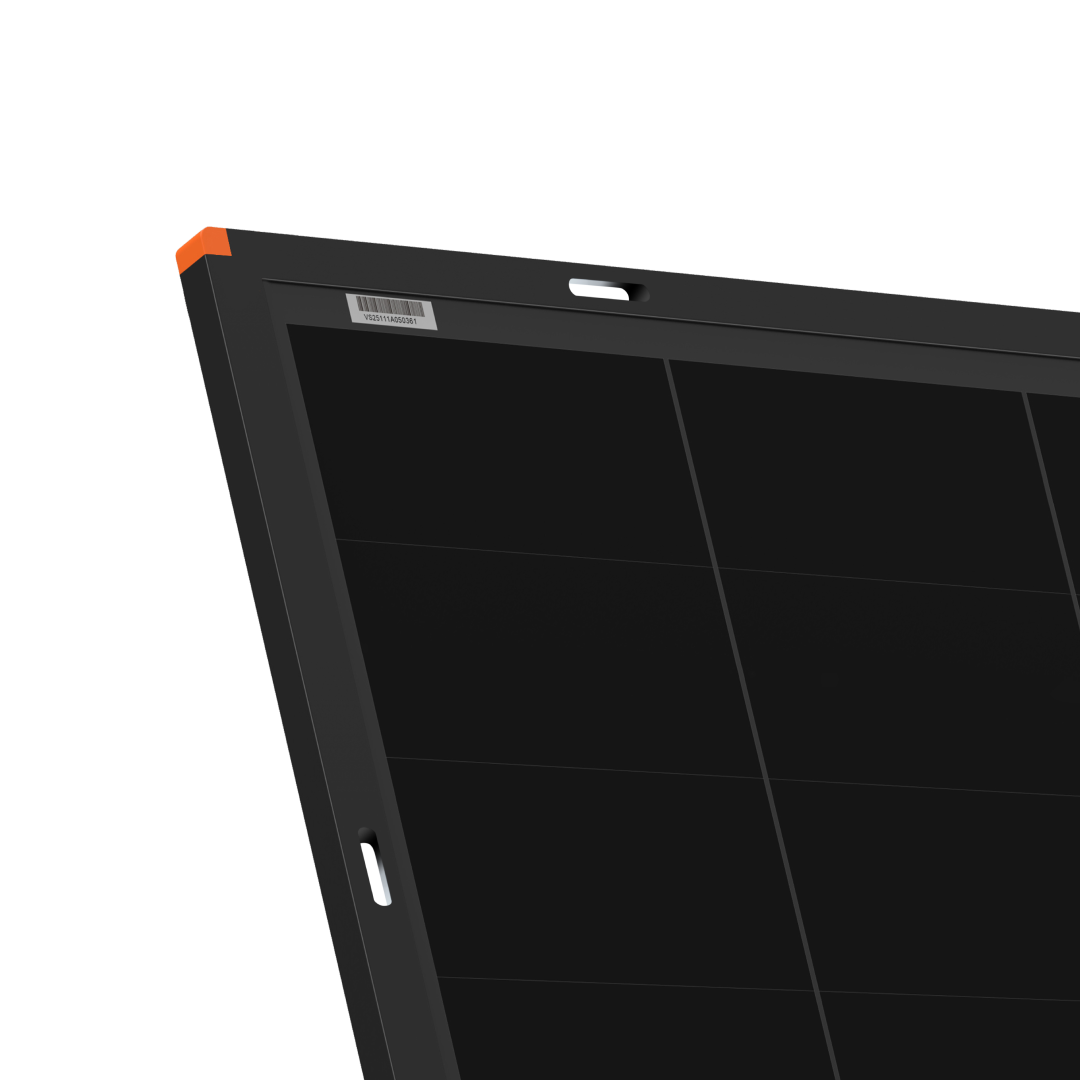

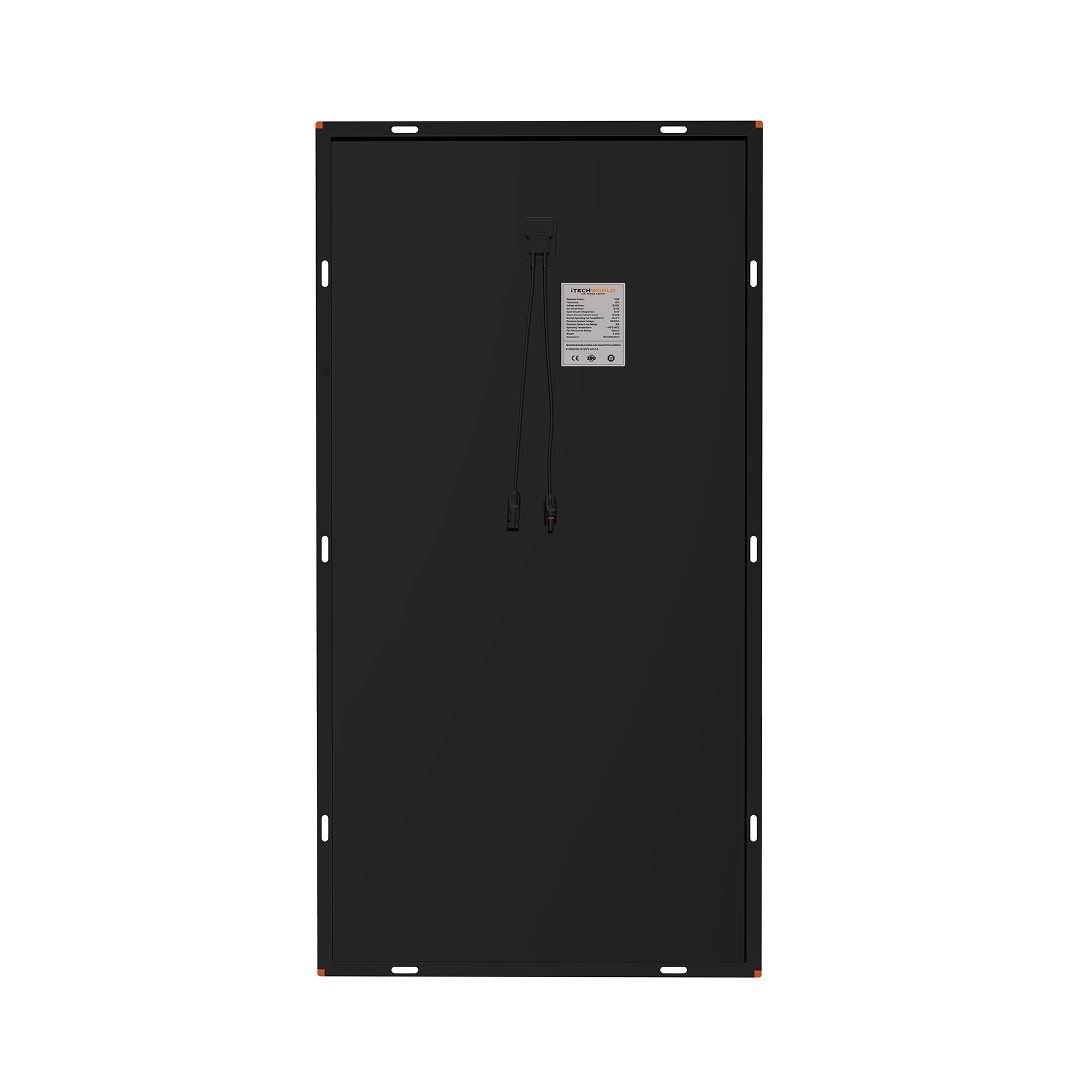

iTechWorld 170W 6mm Hard Frame Solar Panel 22V
A 170W hard frame solar panel with HPX PRO monocrystalline cells and tempered glass, just 6mm thick and 6.4kg. Designed for roof and external mounting on caravans, 4WDs and outdoor setups. Proudly designed and developed in Australia by iTechWorld.
✓ 170W Output✓ Only 6mm Thick✓ 6.4kg Lightweight✓ IP67 Waterproof
-
✓Ultra slim 6mm profile
Sits low and adds very little weight to your roof -
✓9.41A output
High performance charging current -
✓Shade tolerant charging
HPX PRO cells keep output up in partial shade -
✓Reinforced construction
Durable build with a modern look for caravans and 4WDs
Light And Low Profile
At 1330mm by 690mm and only 6mm thick, this is the slimmest and lightest rigid panel in our iTechWorld range. For high vibration environments, iTechWorld recommends using 2 sets of mounting brackets for 6 point mounting. Brackets are sold separately.
Specifications
- Rated Power170W (±3%)
- Voltage at Max Power (Vmp)18.05V
- Current at Max Power (Imp)9.41A
- Open Circuit Voltage (Voc)21.5V
- Short Circuit Current10.22A
- Cell TypeMonocrystalline, HPX PRO
- LaminationTempered glass
- Dimensions1330mm L x 690mm W x 6mm H
- Weight6.4kg
- Max System Voltage1000VDC
- Max Series Fuse Rating15A
- Operating Temperature-40°C to 85°C
- Waterproof RatingIP67
- Warranty1 year
Frequently Asked Questions
How is this different from the standard 170W panel?
It delivers the same 170W but is only 6mm thick and 6.4kg, compared with 17mm and 9.12kg for the standard hard frame version.
How should I mount it?
iTechWorld recommends 2 sets of mounting brackets for 6 point mounting in high vibration environments. Brackets are sold separately.
Is it waterproof?
Yes. It has an IP67 rating for outdoor use.
