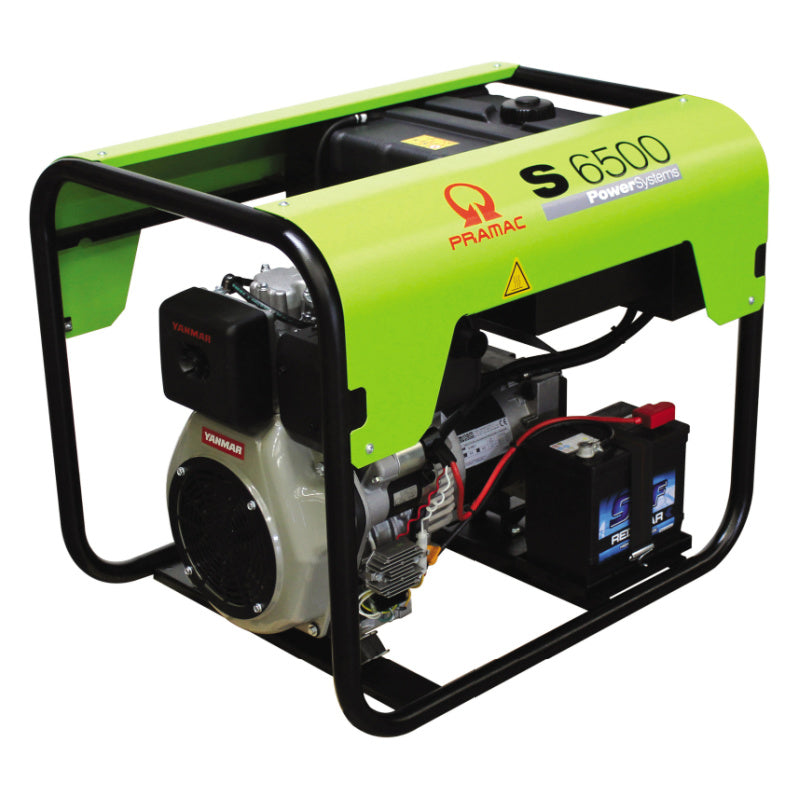

Diesel Generator, Yanmar L100N Engine, 5.9kVA ESP, Single Phase
A robust, professional-grade diesel generator built on a genuine Yanmar L100N engine, delivering 5.9kVA emergency standby power and 4.8kVA continuous power. A full-featured control panel with differential protection, a long-run 24-litre fuel tank and electric start make it a solid choice for intensive use at home, on the farm or on site.
Rated at 5.9kVA (5.3kW) emergency standby power and 4.8kVA (4.4kW) continuous power, this single-phase diesel generator is built for intensive use on farms, as home backup, or on site. A genuine Yanmar L100N diesel engine drives it, backed by a strong steel frame and a long run, easy-filling fuel tank.
The control panel includes a start selector switch with key (OFF, ON, START), a voltmeter, hours-counter and frequency-meter, plus circuit breaker, differential protection, a DC 10A fuse and low oil pressure protection. A CONNector allows an optional AMF automatic control panel or RSS wireless remote start and stop to be added as accessories for further automation.
A 24 liter diesel tank gives up to 16.44 hours of running at 75 percent load or 12.37 hours at full load, so a single fill covers days of intermittent use. Three AS/NZS 3112 15A 250V sockets let you connect multiple devices at once, plus a 12V 10A battery charger output.
Genuine Yanmar L100N, 435cm³, air-cooled, natural aspiration, 3000rpm nominal operating speed, mechanical speed governor, diesel-fuelled, electric start, 1.6L oil capacity. Brushless alternator, class H, IP23 protection, 2 poles, capacitor voltage regulation, voltage tolerance +5/-10 percent.
Start selector switch with key (OFF, ON, START), CONNector for optional AMF or RSS accessories. Voltmeter, hours-counter and frequency-meter. Circuit breaker, differential protection, DC 10A fuse and low oil pressure protection. Battery charger 12V 10A. Three AS/NZS 3112 15A 250V sockets.
24L diesel fuel tank, consuming 1.46L per hour at 75 percent load or 1.94L per hour at full load, giving 16.44 hours runtime at 75 percent load or 12.37 hours at full load.
A genuine Yanmar L100N diesel engine, 435cm³, air cooled with a mechanical speed governor and electric start.
No, the AMF automatic control panel and the RSS wireless remote start and stop are optional accessories, not included as standard. The generator's control panel has a CONNector ready to accept either accessory if you want to add one.
Up to 16.44 hours at 75 percent load, or 12.37 hours at full load, from the 24 liter diesel tank.
Yes. Found it cheaper elsewhere? Let us know and we will do our best to beat it.
