iTechWorld Mini Power Core + Ultra Slim 200Ah

Save $612.18
Original Price $2,748.00
Current Price $2,135.82

Notify me when back in stock

Stocked by Homestead Haven • 100% Aussie Owned & Operated • Australia Wide Delivery
Mini Power Core Bundle

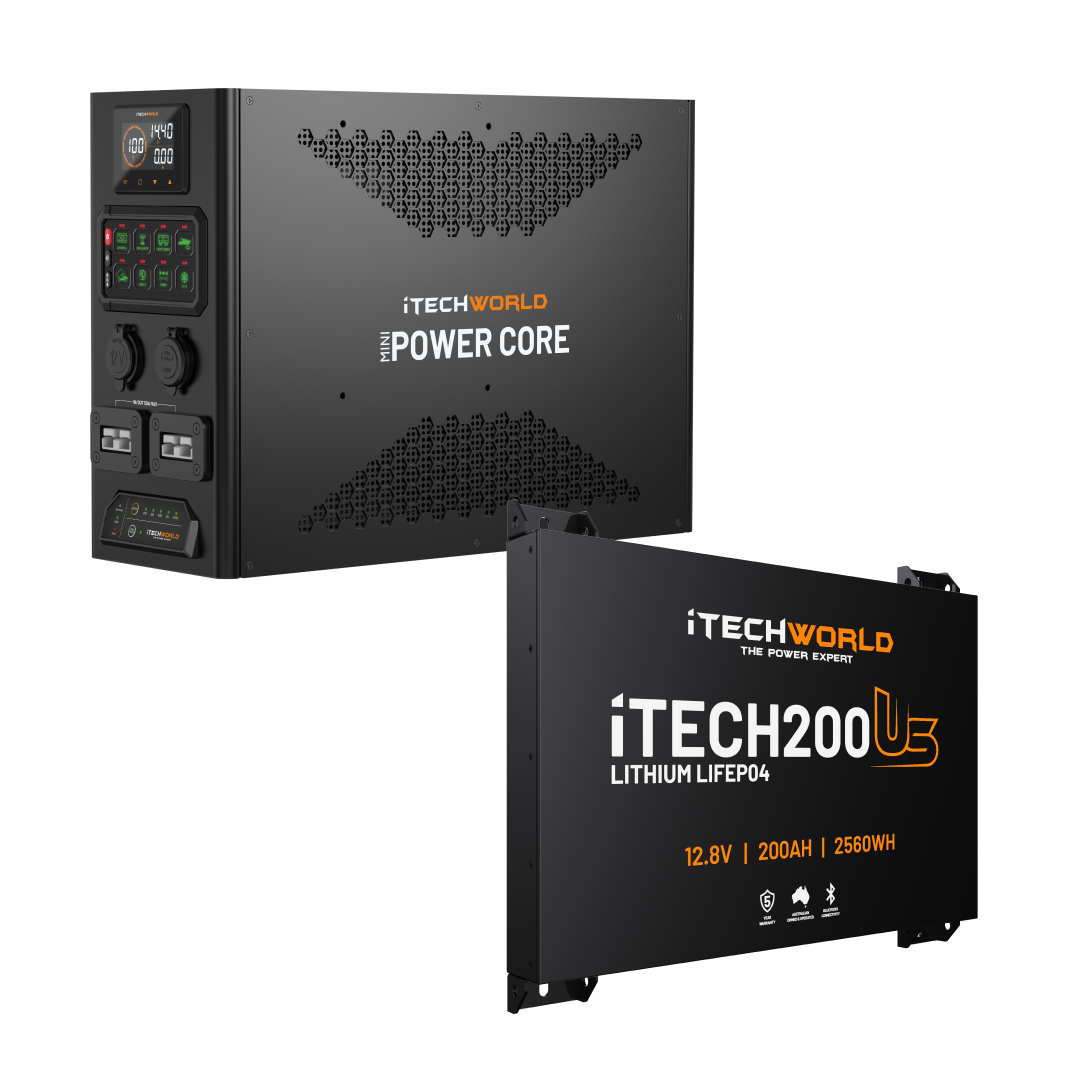

iTechWorld Mini Power Core + Ultra Slim 200Ah

The Mini Power Core all-in-one 12V system pre-bundled with a 200Ah Ultra Slim lithium battery, just 62mm thick with a reinforced internal structure. Bluetooth app monitoring lets you check state of charge without opening up the install, and the slim profile suits tighter canopy and drawer spaces than the Super Slim battery.

✓ 200Ah Ultra Slim LiFePO4 Battery✓ Just 62mm Thick✓ Bluetooth App Monitoring✓ 5 Year Battery Warranty
  • ✓Mini Power Core included
    40A DC-DC charging, 500A battery monitor and an 8-gang RGB switch panel, prewired in one case
  • ✓200Ah Ultra Slim battery
    Just 62mm thick with a reinforced internal structure
  • ✓10,000+ cycles
    Rated at 40% depth of discharge
  • ✓Bluetooth app monitoring
    Check state of charge and battery health from your phone

A Slimmer Profile For Tighter Spaces

This bundle pairs the Mini Power Core with a 200Ah Ultra Slim LiFePO4 battery, built with a reinforced internal structure in a case just 62mm thick, narrower than the equivalent Super Slim battery. Bluetooth app monitoring lets you keep an eye on state of charge and battery health from your phone, and the battery delivers a continuous discharge of 200A with a 640A peak for 5 seconds, backed by a 5 year Australian warranty.

Mini Power Core Specifications

  • Dimensions440 x 160 x 320mm
  • Weight8.3kg
  • DC-DC Charger40A continuous, alternator input 9V to 32V, solar input 10V to 32V
  • Battery Monitor500A max input, 10V to 100V
  • Switch Panel8-gang, RGB backlit, max 600W / 50A

200Ah Ultra Slim Battery Specifications

  • Capacity200Ah, 12.8V nominal
  • Dimensions554 x 62 x 374mm (572mm including terminals)
  • Weight23.1kg
  • Discharge200A continuous, 640A peak (5 seconds)
  • Operating Temperature5°C to 60°C
  • Cycle Life10,000+ cycles at 40% DoD
  • FeaturesBluetooth app monitoring, reinforced structure, stainless steel case
  • Warranty5 years

What's In The Box

  • Mini Power Core1
  • 200Ah Ultra Slim battery1
  • Mounting kit, spare fuses and user guides1 set

Frequently Asked Questions

Does this include the battery?

Yes. This bundle includes both the Mini Power Core and a 200Ah Ultra Slim lithium battery, ready to install together.

What makes this different from the Super Slim bundle?

The Ultra Slim battery is just 62mm thick compared to the Super Slim's 126mm, trading some width for a narrower, deeper profile that suits different install spaces.

Can I monitor the battery remotely?

Yes. The battery has built-in Bluetooth so you can check state of charge and battery health from your phone.

Can I add AC charging later?

Yes. The Mini Power Core case is pre-drilled to accept an optional iTECHBC40 40A AC charger, sold separately.

Do you offer a price match guarantee?

Yes. Found it cheaper elsewhere? Let us know and we will do our best to beat it.
