Mini Power Core Bundle

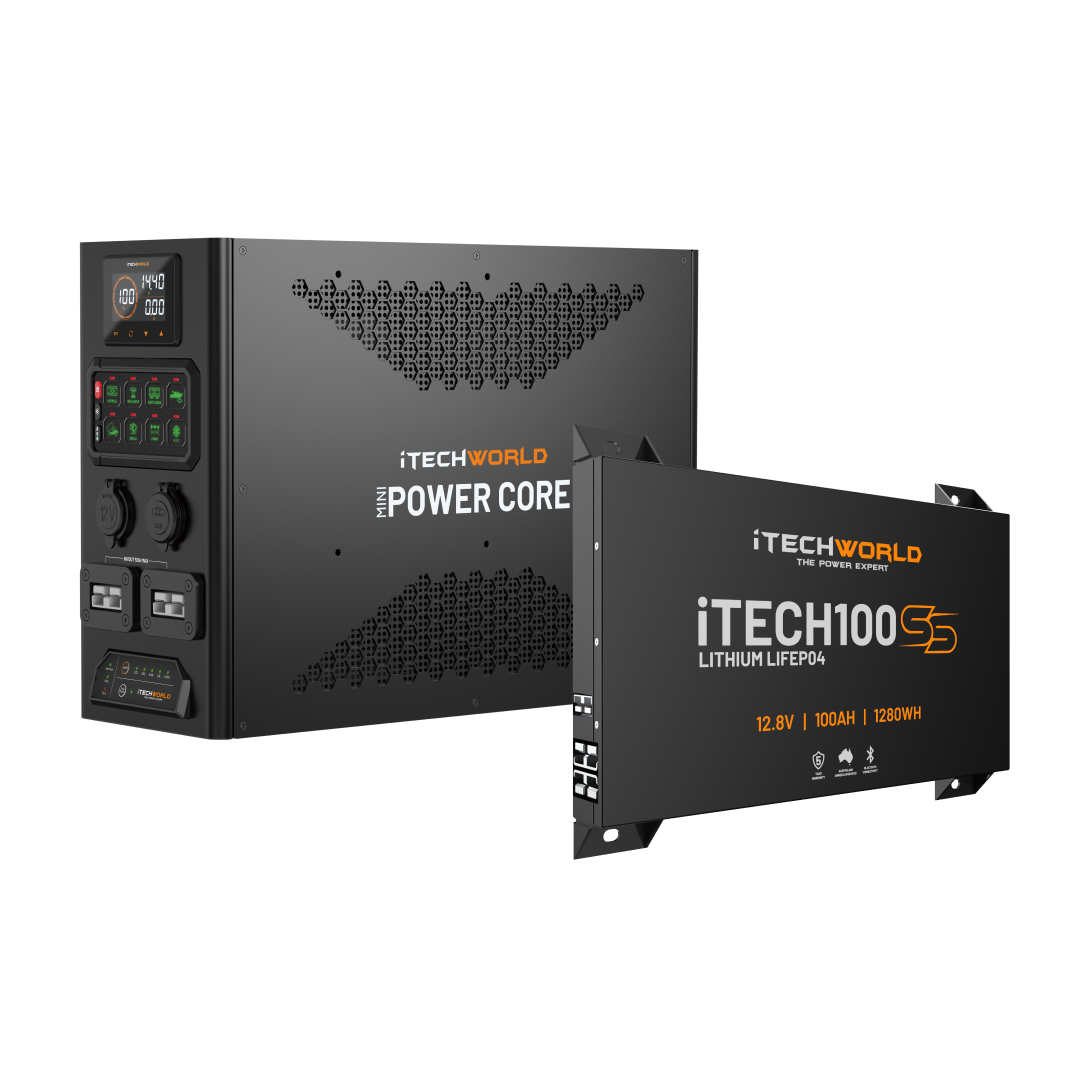

iTechWorld Mini Power Core + Super Slim 100Ah
The Mini Power Core all-in-one 12V system pre-bundled with a 100Ah Super Slim lithium battery, so you get the DC-DC charging, battery monitor, switch panel and battery in one order. A stainless steel case and 100% usable capacity make it a straightforward entry point into lithium power for a canopy or touring setup.
✓ 100Ah Super Slim LiFePO4 Battery✓ 40A DC-DC Charging✓ 8-Gang RGB Switch Panel✓ 5 Year Battery Warranty
-
✓Mini Power Core included
40A DC-DC charging, 500A battery monitor and an 8-gang RGB switch panel, prewired in one case -
✓100Ah Super Slim battery
100% usable capacity in a stainless steel case -
✓5,000+ cycles
Rated to 80% depth of discharge, or 10,000+ cycles at 40% DoD -
✓Series and parallel capable
Connect up to four in series for 48V, or unlimited in parallel
A Simple Way Into Lithium Power

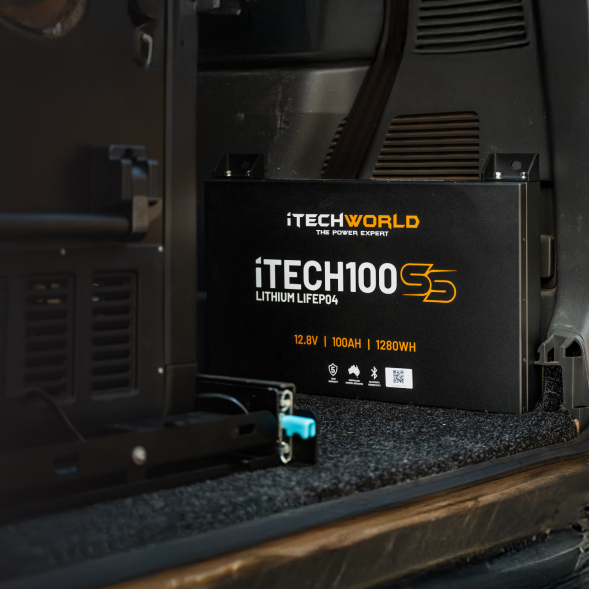

This bundle pairs the Mini Power Core with a 100Ah Super Slim LiFePO4 battery in a stainless steel case, giving you a full 12V accessory system and a lithium battery in one order. The battery delivers 100% usable capacity with a continuous discharge of 100A and a 250A peak for 5 seconds, backed by a 5 year Australian warranty covering 3 years full replacement and 2 years pro-rata.
Mini Power Core Specifications
- Dimensions440 x 160 x 320mm
- Weight8.3kg
- DC-DC Charger40A continuous, alternator input 9V to 32V, solar input 10V to 32V
- Battery Monitor500A max input, 10V to 100V
- Switch Panel8-gang, RGB backlit, max 600W / 50A
100Ah Super Slim Battery Specifications
- Capacity100Ah, 12.8V nominal, 100% usable
- Dimensions487 x 55 x 290mm (358mm including terminals)
- Weight14.3kg
- Discharge100A continuous, 250A peak (5 seconds)
- Operating Temperature5°C to 60°C
- Cycle Life5,000+ cycles at 80% DoD, 10,000+ cycles at 40% DoD
- CertificationIEC 62619, stainless steel case
- Warranty5 years (3 years full replacement, 2 years pro-rata)
What's In The Box
- Mini Power Core1
- 100Ah Super Slim battery1
- Mounting kit, spare fuses and user guides1 set
Frequently Asked Questions
Does this include the battery?
Yes. This bundle includes both the Mini Power Core and a 100Ah Super Slim lithium battery, ready to install together.
Is 100Ah enough for my setup?
100Ah suits lighter accessory loads like a fridge and lighting. If you need more capacity, we also stock 200Ah Mini Power Core bundles.
Can I connect more than one battery?
Yes. Up to four can be connected in series for 48V systems, or an unlimited number in parallel for extra capacity.
Can I add AC charging later?
Yes. The Mini Power Core case is pre-drilled to accept an optional iTECHBC40 40A AC charger, sold separately.
Do you offer a price match guarantee?
Yes. Found it cheaper elsewhere? Let us know and we will do our best to beat it.
