Folding Solar Blanket Kit

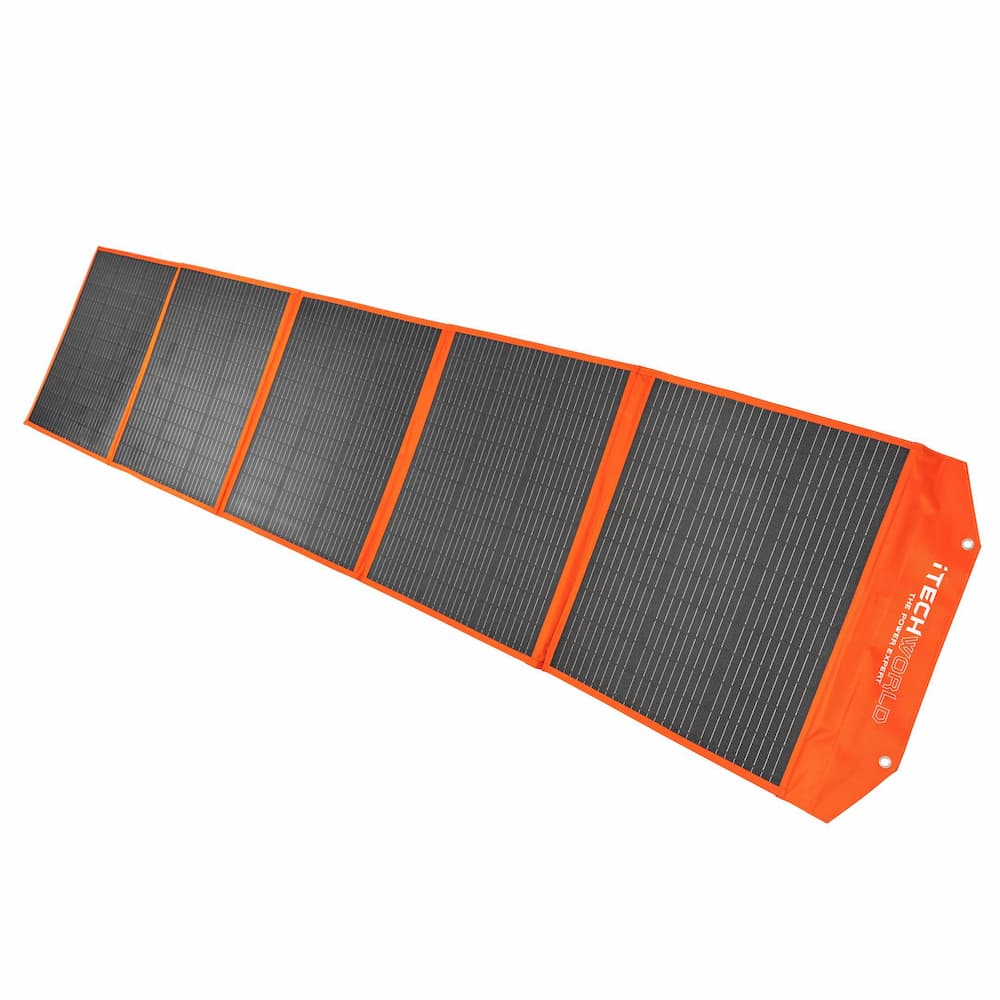

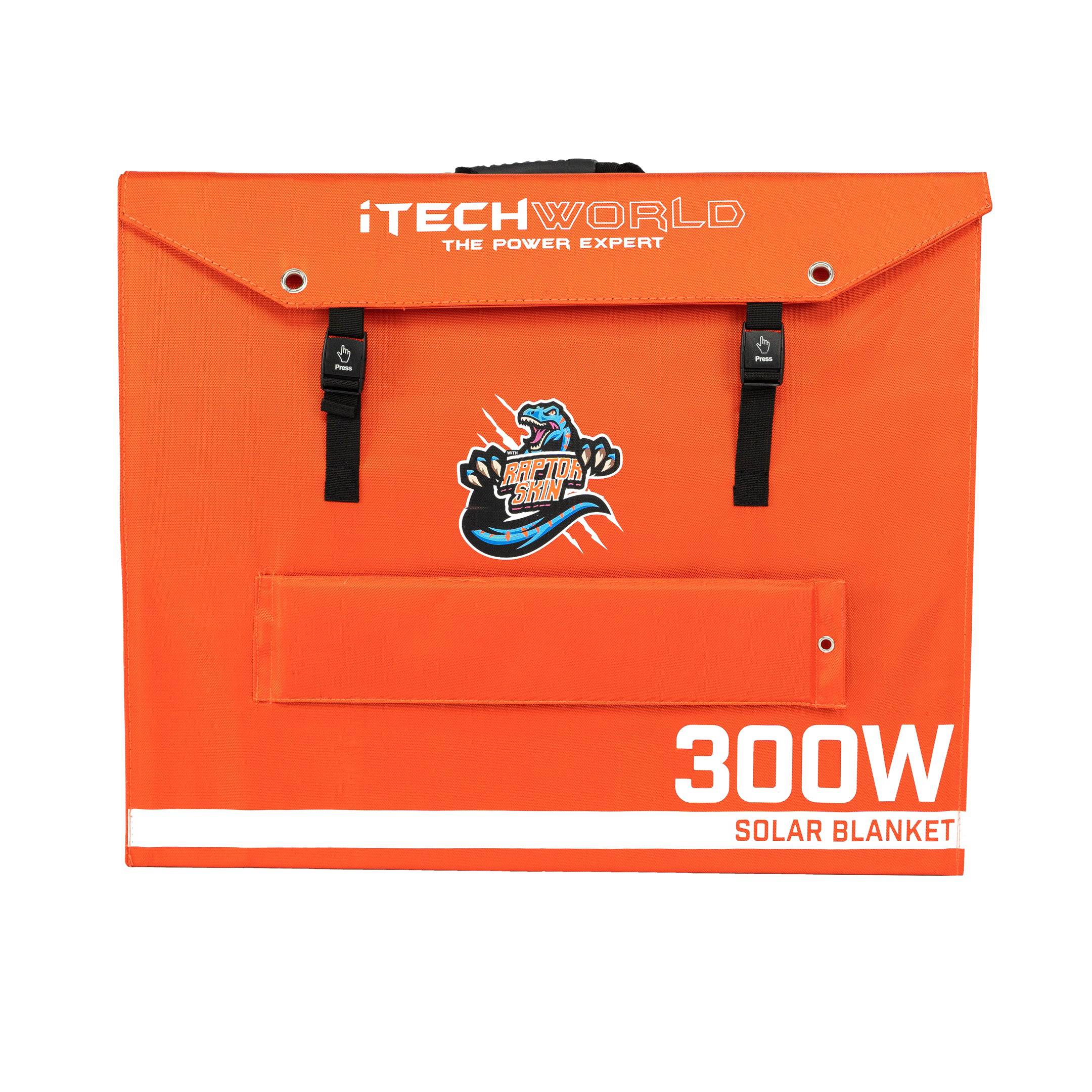

iTechWorld 300W Solar Blanket with Raptor Skin
A 300W portable folding solar blanket with A-grade monocrystalline cells, an ETFE Raptor Skin coating and an integrated fold-out stand. It comes as a kit with a PWM regulator, extension lead and clamps for camping, caravans and off-grid power. Designed in Australia by iTechWorld.
✓ 300W / 16A Output✓ Fold-Out Stand✓ IP64 Weatherproof✓ PWM Regulator Included
-
✓Shade tolerant charging
Blocking diodes help keep output up when partly shaded -

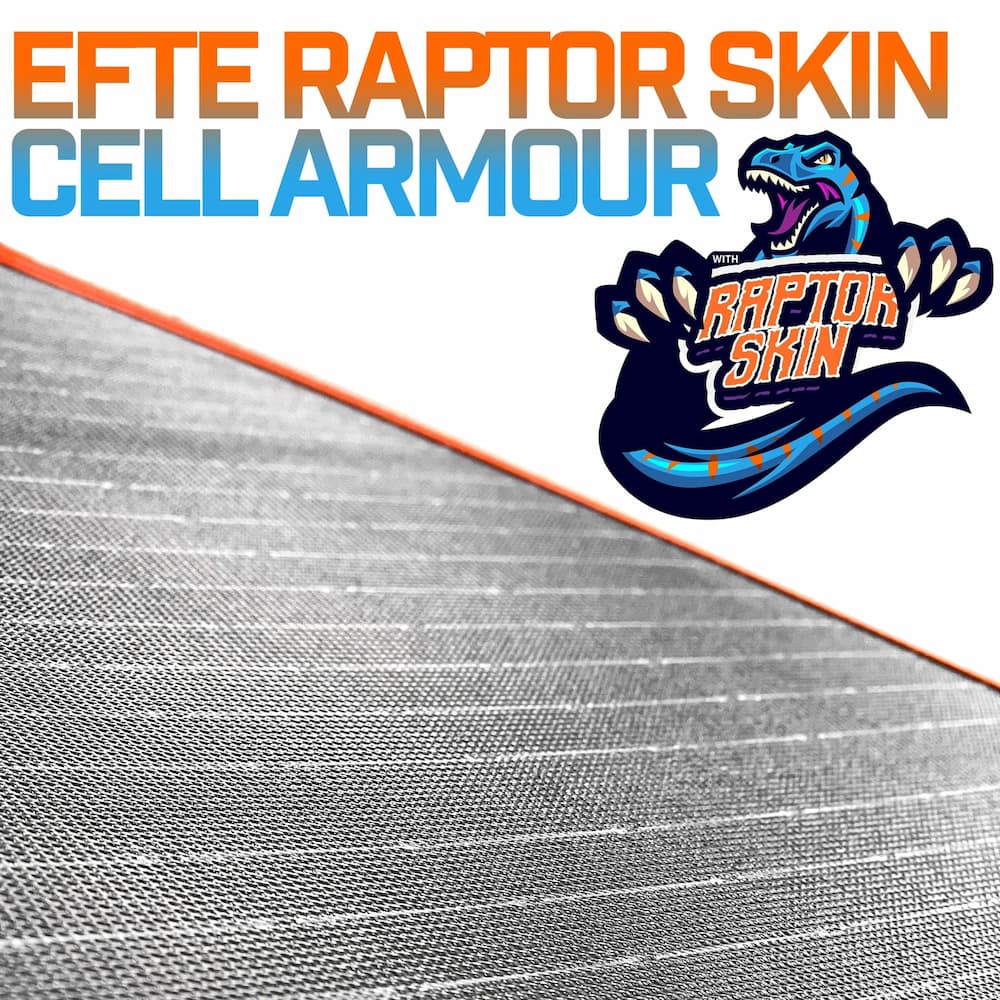

✓Self cleaning Raptor Skin
Anti-reflective, scratch resistant and UV stable -
✓Heavy duty build
Copper backing, 10AWG cabling and 600D ballistic nylon canvas -
✓Hail proof and shock resistant
Built for camping and touring
Set Up Fast, Angle It Right
Open the blanket, pop out the integrated stand and aim it at the sun. For best results, position it at 30 to 45 degrees toward the sun and adjust as the sun moves. You can connect multiple blankets in parallel using Anderson connectors to increase total wattage, and it can power 12V gear such as fridges and LED lighting through the regulator.
Specifications
- Rated Power300W (±5%)
- Voltage at Max Power18.8V
- Current at Max Power16A
- Open Circuit Voltage22.4V
- Short Circuit Current17.2A
- Cell TypeMonocrystalline
- LaminationETFE Raptor Skin
- Canvas Material600D ballistic nylon
- Open Dimensions2980mm x 680mm x 5mm
- Closed Dimensions680mm x 540mm x 50mm
- Weight11.5kg
- Operating Temperature-40°C to 85°C
- IP RatingIP64
- Warranty1 year
What's In The Box
- 300W solar blanket with integrated fold-out stand1
- PWM regulator1
- Extension lead1
- Clamps1 set
Frequently Asked Questions
What angle should I set it at?
Position it at 30 to 45 degrees toward the sun. The integrated stand lets you adjust as the sun moves through the day.
Can I connect more than one blanket?
Yes. Multiple blankets can be connected in parallel using Anderson connectors to increase total wattage.
Does it work on cloudy days?
High efficiency A-grade cells capture a broad light spectrum, so it can keep charging on overcast days, though output is lower than in full sun.
How do I keep it clean?
The self cleaning surface lets dirt and dust slide off with rain or wind, so it needs very little upkeep.
