Short Hard Frame Solar Panel

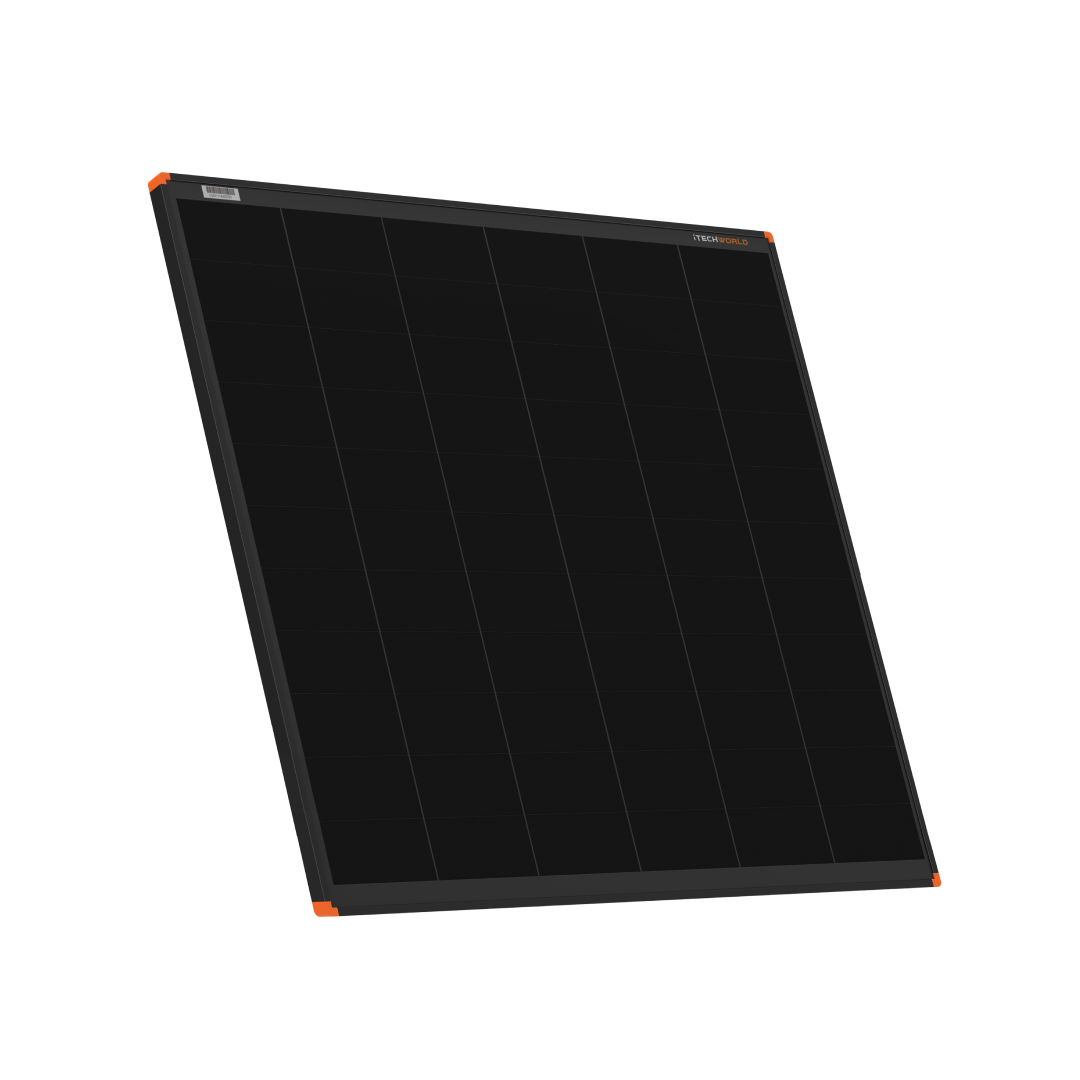

iTechWorld 250W Short Hard Frame Solar Panel 22V
A compact, squarer 250W hard frame solar panel with HPX PRO monocrystalline cells and tempered glass. Just 17mm thick and IP67 rated, it packs 250W into a shorter footprint for caravans, 4WDs and off-grid setups. Designed and developed in Australia by iTechWorld.
✓ 250W Output✓ Compact Footprint✓ 17mm Thin Profile✓ IP67 Waterproof
-
✓12.89A output
High performance charging current -
✓Shade tolerant charging
HPX PRO technology limits power loss in shade -

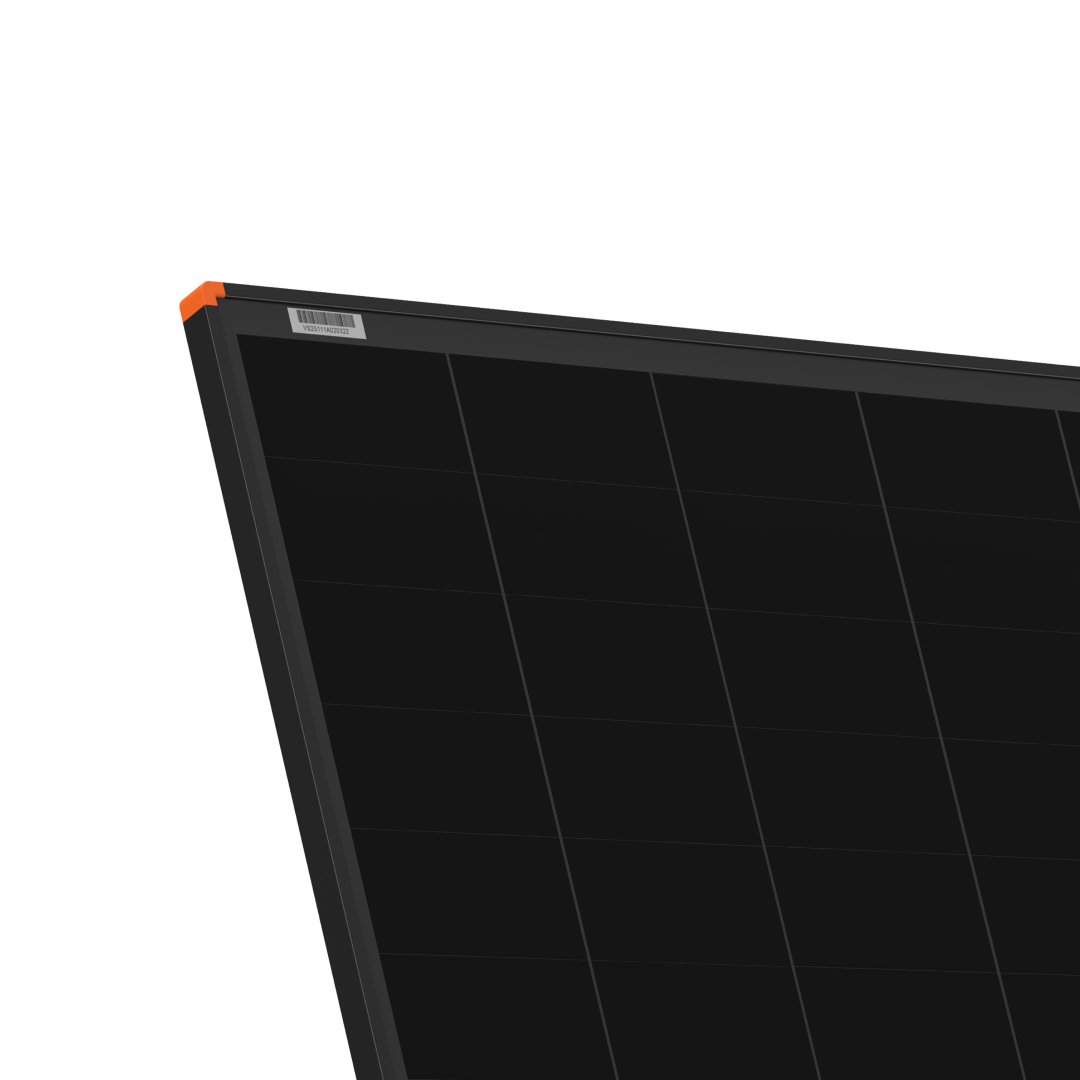

✓Reinforced hard frame
Tempered glass lamination for durability -

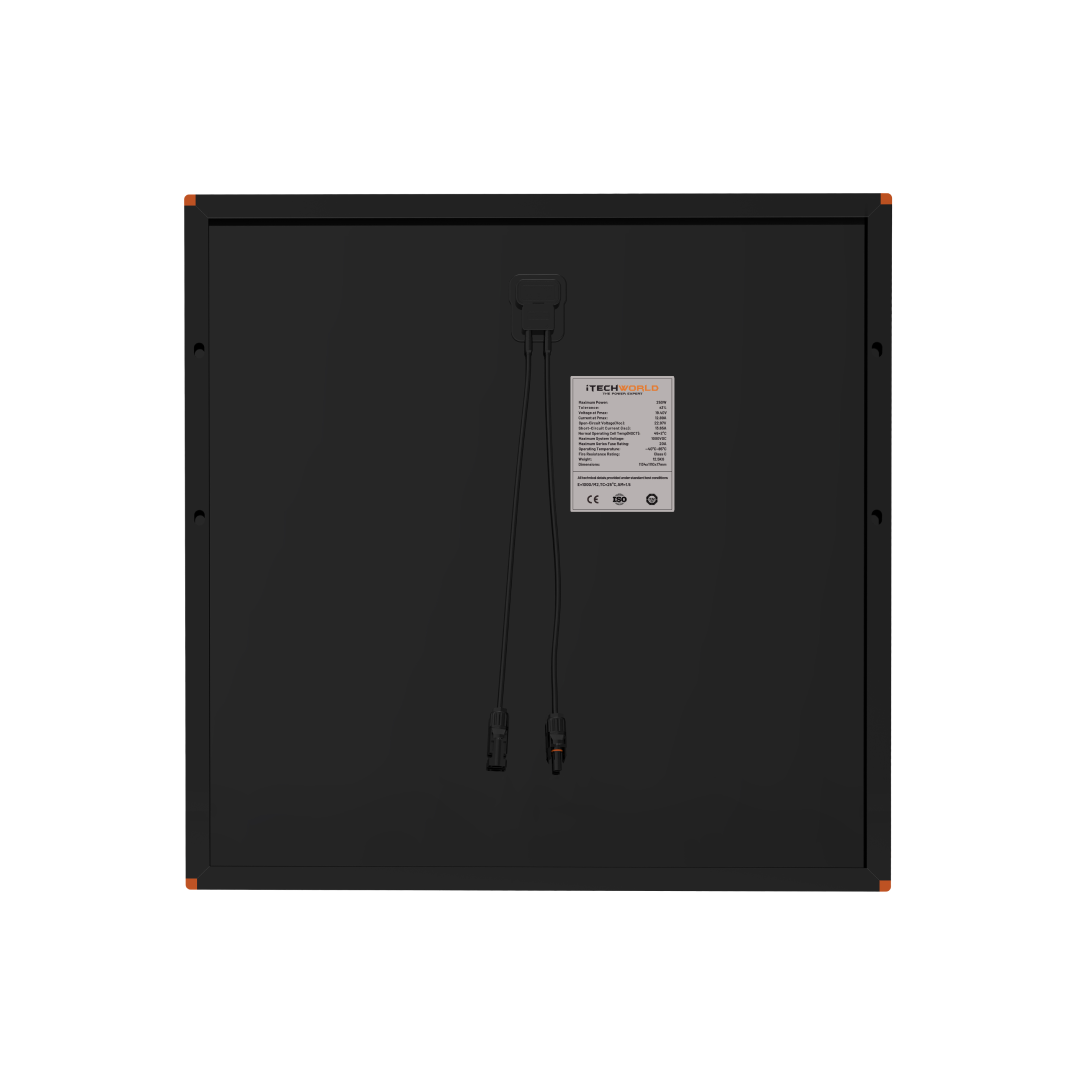

✓Two pre-attached cables
Ready to wire into your system
Big Power In A Shorter Panel
The short format suits roofs and canopies where a long 250W panel will not fit. It is designed for roof and external mounting and delivers the same 250W rating in a more compact shape. Mounting brackets are sold separately.
Specifications
- Rated Power250W (±3%)
- Voltage at Max Power (Vmp)19.4V
- Current at Max Power (Imp)12.89A
- Open Circuit Voltage (Voc)22.97V
- Short Circuit Current13.65A
- Cell TypeMonocrystalline, HPX PRO
- LaminationTempered glass
- Dimensions1134mm x 1110mm x 17mm
- Weight12.5kg
- Max System Voltage1000VDC
- Max Series Fuse Rating20A
- Operating Temperature-40°C to 85°C
- Waterproof RatingIP67
- Warranty1 year
Frequently Asked Questions
How is this different from the standard 250W panel?
It has the same 250W rating but a shorter, squarer shape, which suits roofs and canopies with limited length.
Does it work in partial shade?
HPX PRO technology is designed to limit power loss under shade. Output is still best in direct sun.
Are mounting brackets included?
No. Mounting brackets are sold separately.
Do you offer a price match guarantee?
Yes. Found it cheaper elsewhere? Let us know and we will do our best to beat it.
