Folding Solar Mat

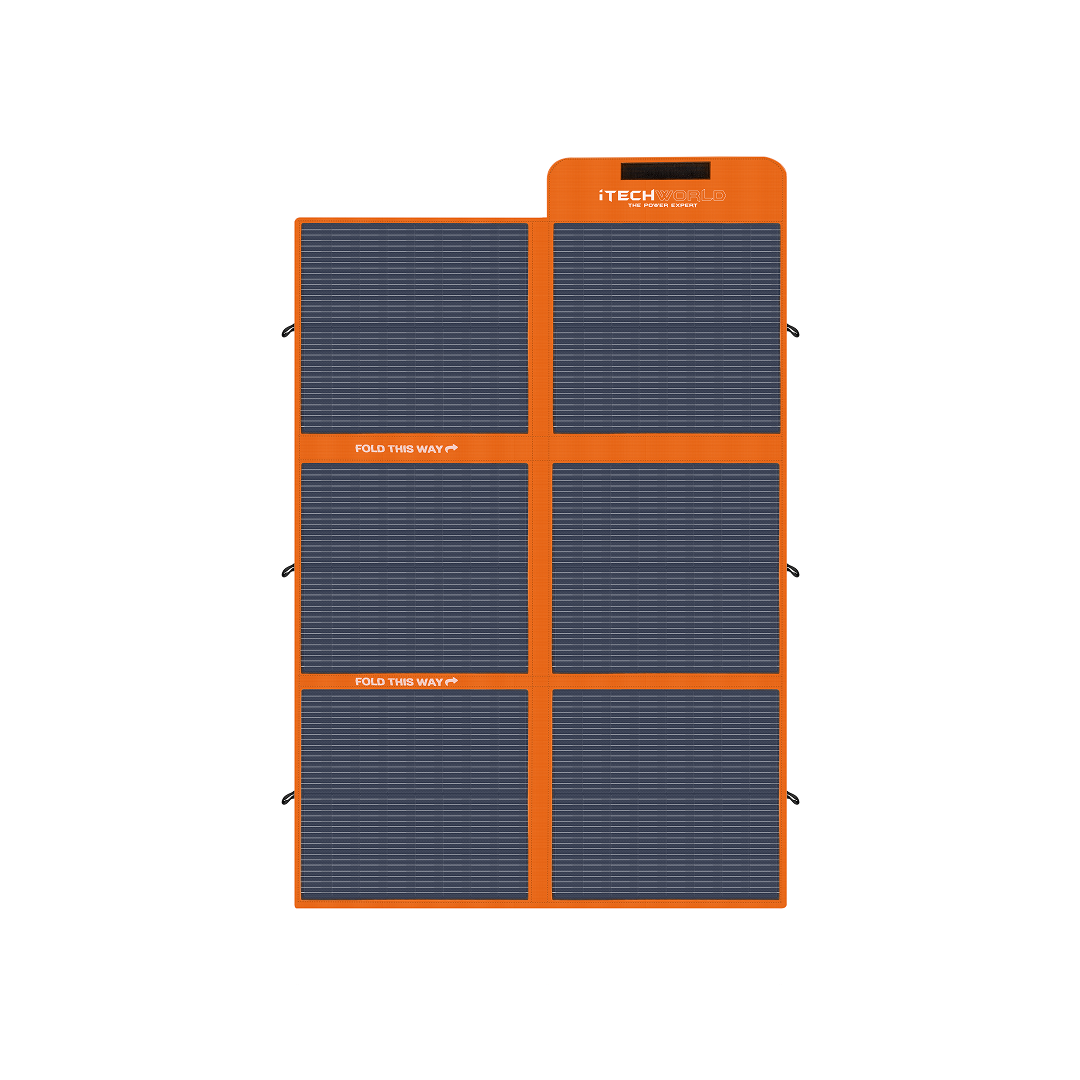

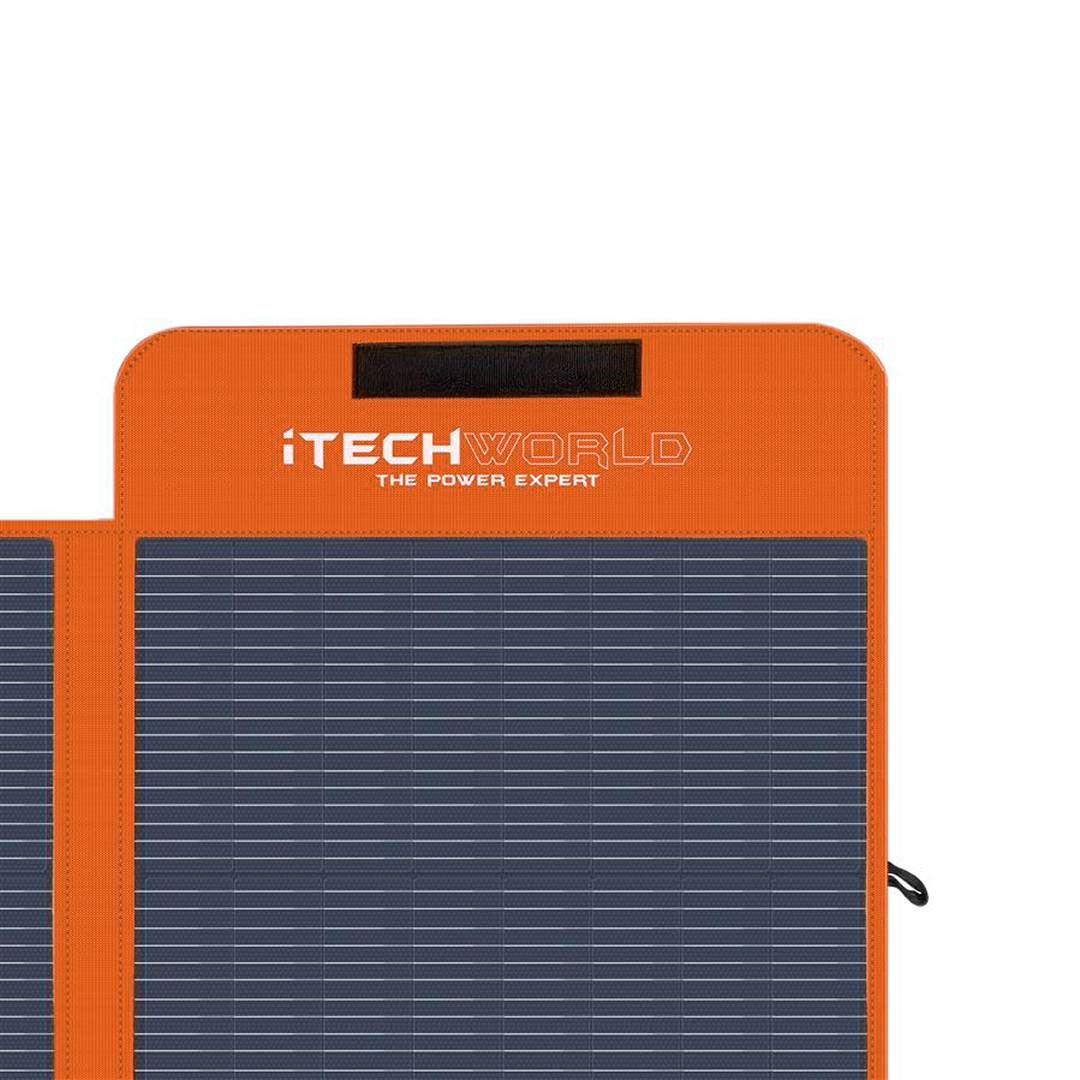

iTechWorld 200W Solar Mat with Raptor Skin

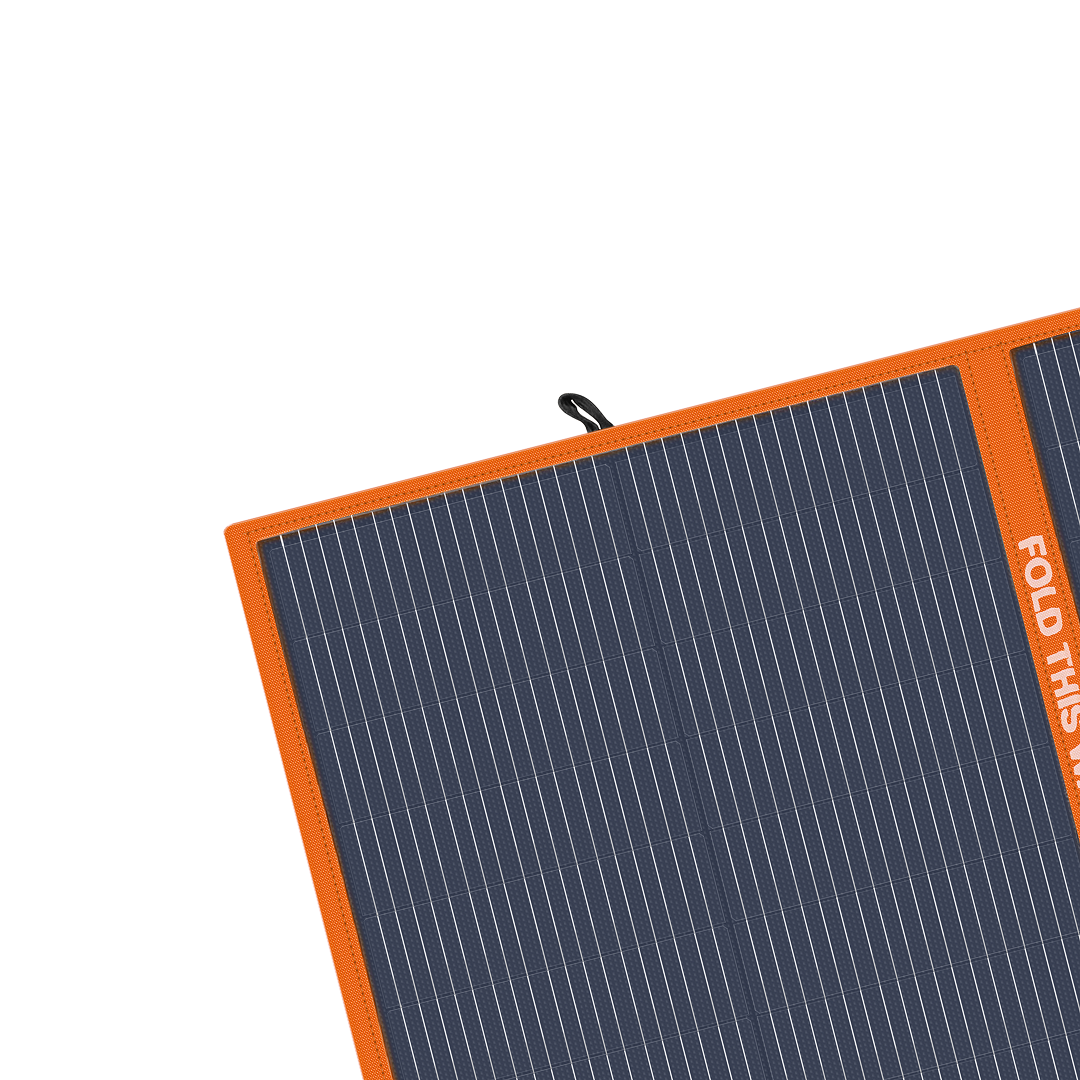

A 200W portable folding solar mat with A-grade monocrystalline cells and an ETFE Raptor Skin coating on a tough 600D ballistic nylon backing. It folds to a slim 480mm by 490mm package and comes with a PWM regulator and carry bag. Designed in Australia by iTechWorld.
✓ 200W / 11.1A Output✓ Slim Folding Design✓ PWM Regulator Included✓ Carry Bag Included
-
✓Raptor Skin ETFE coating
UV resistant, non-yellowing and self cleaning -
✓Rugged canvas backing
600D ballistic nylon resists abrasion and punctures -
✓Lightweight at 7.5kg
Easy to carry and pack away -
✓Protected charging
PWM regulator guards against overcharging, reverse polarity and short circuits
Lay It Out And Charge
Unfolded, the mat measures 1560mm by 980mm. It works with most 12V systems through the regulator, but cannot run appliances directly and is not suitable for 24V without a compatible controller. Use the eyelets or grommets to tie it down in windy conditions. It is weather resistant rather than waterproof, so dry the connectors after rain to prevent corrosion.
Specifications
- Rated Power200W (±5%)
- Voltage at Max Power18.04V
- Current at Max Power11.09A
- Open Circuit Voltage22.1V
- Short Circuit Current11.7A
- Cell TypeMonocrystalline
- LaminationETFE Raptor Skin
- Canvas Material600D ballistic nylon
- Open Dimensions1560mm x 980mm x 5mm
- Folded Dimensions480mm x 490mm x 50mm
- Weight7.5kg
- Operating Temperature-40°C to 85°C
- Warranty1 year
What's In The Box
- 200W solar mat (foldable panel)1
- PWM solar regulator1
- Power cables with connectors1 set

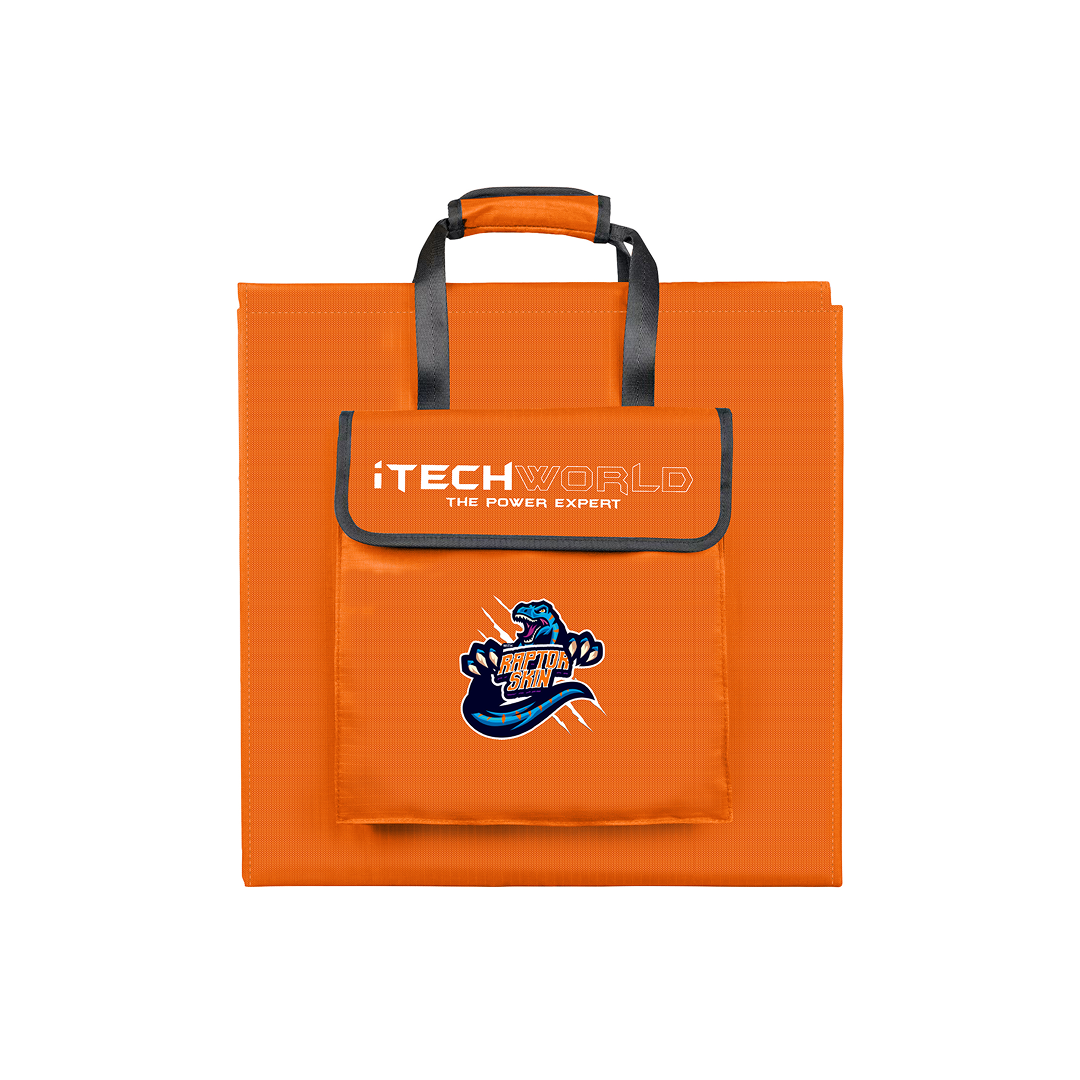

- Orange carrying bag with handles1
Frequently Asked Questions
What happens if part of the mat is shaded?
Output can drop by more than half if one section is shaded, so place it fully in the sun where you can.
Is it waterproof?
It is weather resistant, not waterproof. Dry the connectors after rain to prevent corrosion.
Can I connect more than one mat?
Yes. Multiple iTechWorld solar panels can be connected in parallel to increase total current output.
How do I clean and keep it steady in wind?
Clean it with water and a soft cloth, and avoid solvents or detergents. The folding design can catch the wind, so tie it down using the eyelets or grommets.
