Home Standby Gas Generator, 10kVA / 13kVA / 20kVA, Automatic Backup Power

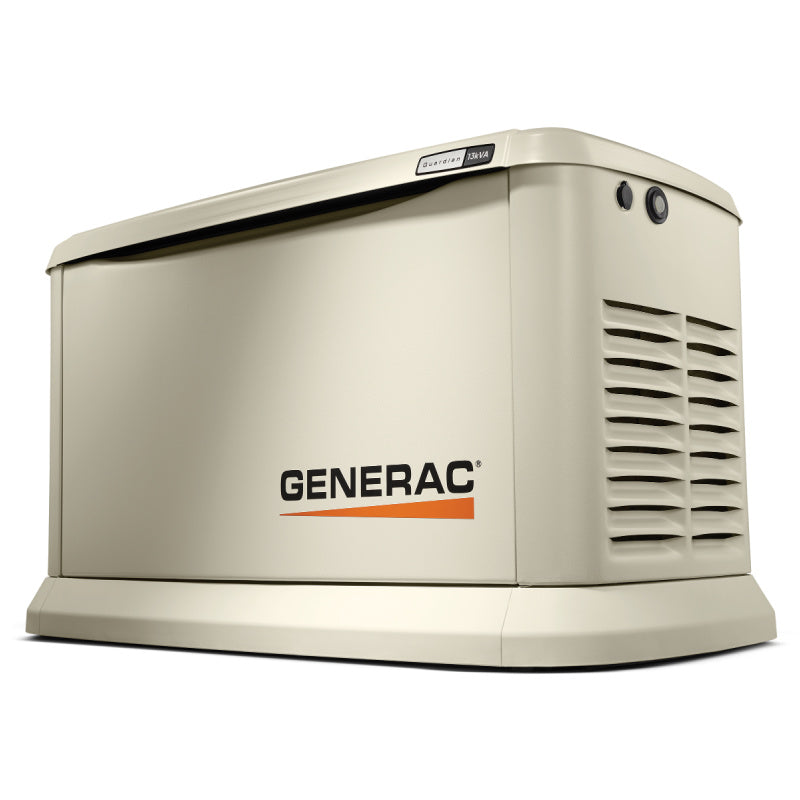

Generac Guardian 10 / 13 / 20 kVA Gas Standby Generator
A fully automatic home standby generator that detects a utility power outage and takes over hands-off, with no need to be home or lift a finger. Built on Generac's G-Force engine, it delivers True Power Technology for clean, utility-quality output, and Mobile Link remote monitoring so you can check on it from your phone. Runs on natural gas or LP, and is available in 10kVA, 13kVA or 20kVA to suit the size of the job.
✓ Fully Automatic Operation ✓ True Power™, Less Than 5% THD ✓ Mobile Link Remote Monitoring ✓ 5 Year Limited Warranty
-
✓Generac G-Force engine
Purpose built for extended run times in extreme conditions -
✓Digital Evolution™ controller
Two line LCD display, Auto/Manual/Off illuminated buttons -
✓Natural gas or LP gas operation
Runs on whichever gas supply you already have -
✓Sound attenuated enclosure
Weather protective, quiet running, wind rated to 241km/h
Automatic, Hands-Off Protection
The Guardian Series is designed for automatic, hands-off operation. It constantly monitors utility voltage and, the moment power is lost, starts itself and transfers your home or property onto generator power. When the grid comes back, it automatically transfers back and shuts itself down, cooling down first for around a minute before stopping.
True Power Technology, Utility-Quality Output
A skewed stator and displaced phase excitation combine with solid-state, frequency compensated voltage regulation to hold output steady at ±1%. True Power Technology keeps Total Harmonic Distortion under 5%, so sensitive electronics and micro-chip based appliances, including variable speed HVAC systems, run with confidence.
Monitor It From Anywhere With Mobile Link
Mobile Link remote monitoring is included, letting you check operating status and maintenance alerts from a smartphone, tablet or PC, from anywhere in the world. A programmable seven day exerciser runs the unit for 5 minutes every other week to keep oil seals conditioned between outages, and a smart battery charger keeps the starter battery topped up and ready.
Choose Your Size
The 10kVA and 13kVA are single phase, 220V models built around Generac's G-Force engine range. The 20kVA steps up to a three phase, 380/400/416V model for larger properties needing more continuous capacity.
10kVA
$7,730.00
- SKUG007048-1
- Power (LP/NG)10,000VA / 10,000VA
- PhaseSingle, 220V
- Main Breaker50 Amp
- EngineG-Force 1000 Series, 999cc
- Weight176kg
- Sound (7m)64dB(A)
13kVA
$9,220.00
- SKUG007049-1
- Power (LP/NG)13,000VA / 13,000VA
- PhaseSingle, 220V
- Main Breaker63 Amp
- EngineG-Force 1000 Series, 999cc
- Weight193kg
- Sound (7m)64dB(A)
20kVA
$10,545.00
- SKUG007219-0
- Power (LP/NG)20,000VA / 17,000VA
- PhaseThree, 380/400/416V
- Main Breaker32 Amp
- EngineG-Force 1000 Series, 999cc
- Weight220kg
- Sound (7m)65dB(A)
Specifications
Engine (All Sizes)
10kVA: Generac G-Force 1000 Series, 2 cylinders, 999cc, aluminum block with cast iron sleeve, overhead valve, solid-state ignition with magneto, electronic governor, 9.5:1 compression, 12VDC starter, 1.8L oil capacity, 3,000rpm. 13kVA and 20kVA share the same G-Force 1000 Series engine specification.
Fuel Consumption
- 10kVA: NG 3.57m³/h half load, 5.78m³/h full load. LP 4.70L/h half load, 7.24L/h full load.
- 13kVA: NG 4.25m³/h half load, 6.54m³/h full load. LP 5.29L/h half load, 8.32L/h full load.
- 20kVA: NG 4.30m³/h half load, 6.48m³/h full load. LP 7.16L/h half load, 11.11L/h full load.
Dimensions & Battery
All three sizes share the same footprint: 1218mm L x 638mm W x 732mm H. Battery not included; requires a 12V Group 26R (540 CCA minimum) or Group 35AGM (650 CCA minimum) battery.
Controls & Protection
Two line multilingual LCD Evolution controller, Auto/Manual/Off mode buttons, programmable 7 day exerciser, smart battery charger, automatic voltage regulation with over/under voltage protection, automatic low oil pressure and high oil temperature shutdown, overcrank/overspeed shutdown, main line circuit breaker sized per model.
Frequently Asked Questions
What is the difference between the 10kVA, 13kVA and 20kVA models?
The 10kVA and 13kVA are single phase, 220V models, differing mainly in continuous power capacity, main breaker size and weight. The 20kVA is a three phase, 380/400/416V model built for larger properties, with a higher rated power on LP gas and a 32 amp main breaker sized for three phase supply.
Does it run on natural gas or LP gas?
Both. All three sizes are rated for natural gas or LP gas operation, with slightly different maximum continuous power capacity depending on which fuel is connected.
Does it start automatically during a power outage?
Yes. In Auto mode, the generator constantly monitors utility voltage and starts automatically when power is lost, transferring your load across without you needing to be home.
What warranty is included?
A 5 year limited warranty is included on all three sizes, backed by Generac's dealer network for parts and service.
