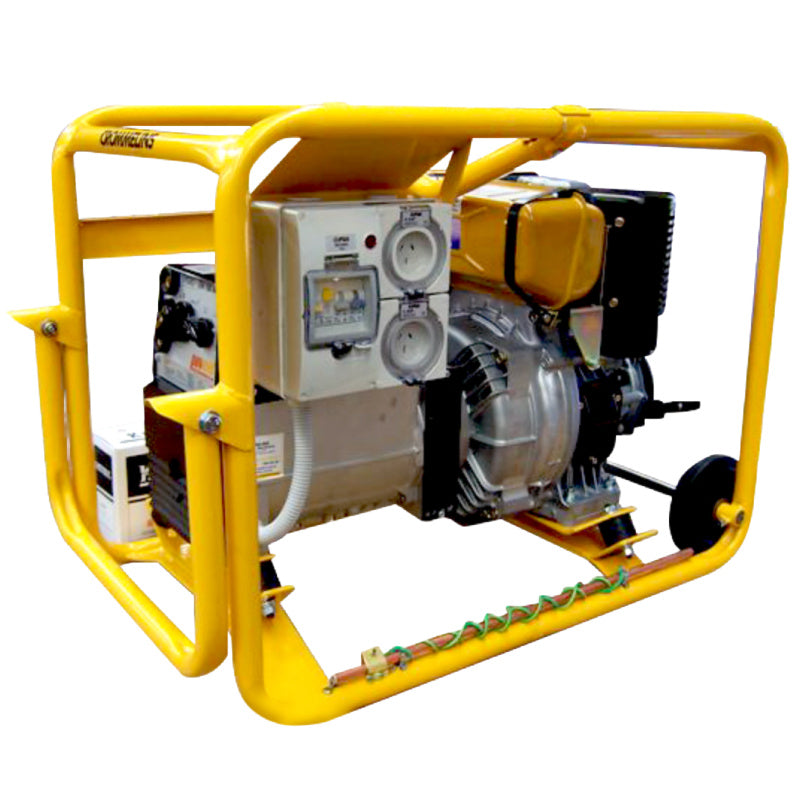

GW180YDE, 180 Amp Diesel Welder Generator
Crommelins Welder Generator 180amp Yanmar Diesel E Start
A convenient combination of arc welding and diesel power generation, electric start for ease of use. Ideal for farming, construction, contractors and mining industries, and designed for onsite welding repairs. The diesel powered unit also runs as a 4.0kW (max) generator for small to medium sized equipment like grinders, drills and lights, or for backup power. Built around a genuine Yanmar diesel engine and a Sincro welder alternator, assembled and tested in Australia.
✓ 60 to 180 Amp Welding Range
✓ 4.0kW Max Diesel Generator
✓ Electric Start with Recoil Backup
✓ Genuine Yanmar Diesel Engine
-
✓Genuine Yanmar diesel engine
10.0hp L100, paired with a Sincro brushless welder alternator -
✓Electric start with AGM battery
Simple key start, with a recoil pull start included as backup -
✓32mm Australian fabricated steel frame
Assembled and tested in Australia, workplace compliant -
✓Customisation options available
Hirepack, mine spec, long range fuel tank, Anderson plugs and recoil start lock, contact us to discuss
Two Machines In One, Weld And Generate On Diesel
This unit welds from 60 to 180 amps for onsite repairs and fabrication, and doubles as a 4.0kW (max) diesel generator for small to medium sized equipment like grinders, drills and lights, or as backup power. A genuine Yanmar 10.0hp L100 diesel engine drives a Sincro brushless welder alternator at 240V, 50Hz, single phase, with a 15amp and a 10amp outlet for connecting tools.
Electric Start, Simple And Reliable
Electric start with an AGM battery lets an operator turn a key rather than pull start the unit, with a recoil start included as backup for added reliability. This is the standard build of the GW180YDE, without a fitted hirepack. If a hirepack, mine specification, long range fuel tank, Anderson plugs or a recoil start lock is needed for a particular site, these are available as customisation options, contact us to discuss before ordering.
Built For Farming, Construction And Mining Use
A 32mm Australian fabricated heavy duty steel frame and full workplace compliance make this unit suited to farms, construction sites, contractors and mining use. Assembled and tested in Crommelins' Australian factory, and backed by a two year manufacturer's warranty. Diesel fuel and a genuine Yanmar engine make it a strong option where diesel is the preferred fuel on site.
Dimensions & Key Specs
- Welding Amps60 to 180 Amp
- Generator Output4,000W max, 3,200W continuous
- Voltage & Frequency240V, 50Hz, single phase
- EngineYanmar 10.0hp L100, electric start
- AlternatorSincro
- Outlets1x 15Amp, 1x 10Amp
- FuelDiesel, 4.7L tank
- Noise Level97dB at 1 metre
- Unit Weight114kg
- Unit Dimensions840mm L x 520mm W x 640mm H
- Package Dimensions980mm L x 530mm W x 600mm H
- Manufacturer's Warranty2 years
Specifications
What's Included
- Crommelins GW180YDE welder generator, standard build
- Earth leakage switch and earth spike
- Hirepack, mine spec and other customisations available on request
Power & Electrical
4,000W max, 3,200W continuous diesel generator output at 240V, 50Hz, single phase, with a 15amp and a 10amp outlet and an earth leakage switch with earth spike.
Welding
60 to 180 amp welding range through a Sincro brushless welder alternator, suited to onsite repairs and fabrication.
Warranty
Covered by a 2 year manufacturer's warranty.
Frequently Asked Questions
Can this unit be used as a generator as well as a welder?
Yes. Alongside 60 to 180 amp arc welding, it runs as a 4.0kW (max) diesel generator for small to medium sized equipment like grinders, drills and lights, or as backup power.
What engine does this unit use?
A genuine Yanmar 10.0hp L100 diesel engine.
Does this model come with a hirepack?
Not as standard. This is the base GW180YDE build. A hirepack, mine specification, long range fuel tank, Anderson plugs or a recoil start lock can all be added as customisation options, contact us to discuss before ordering. If you would rather buy a unit with the hirepack already fitted, see the GW180YDEH Hirepack version.
How do I start the generator?
Electric start with an AGM battery, so you simply turn a key. A recoil pull start is also included as a backup.
Do you offer a price match guarantee?
Yes. Found it cheaper elsewhere? Let us know and we will do our best to beat it.
