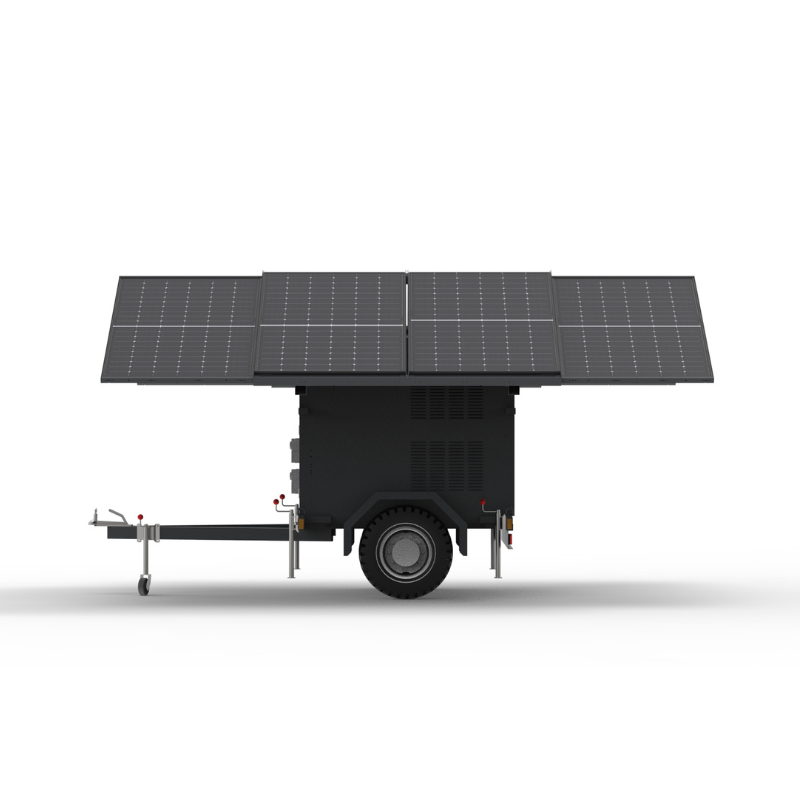

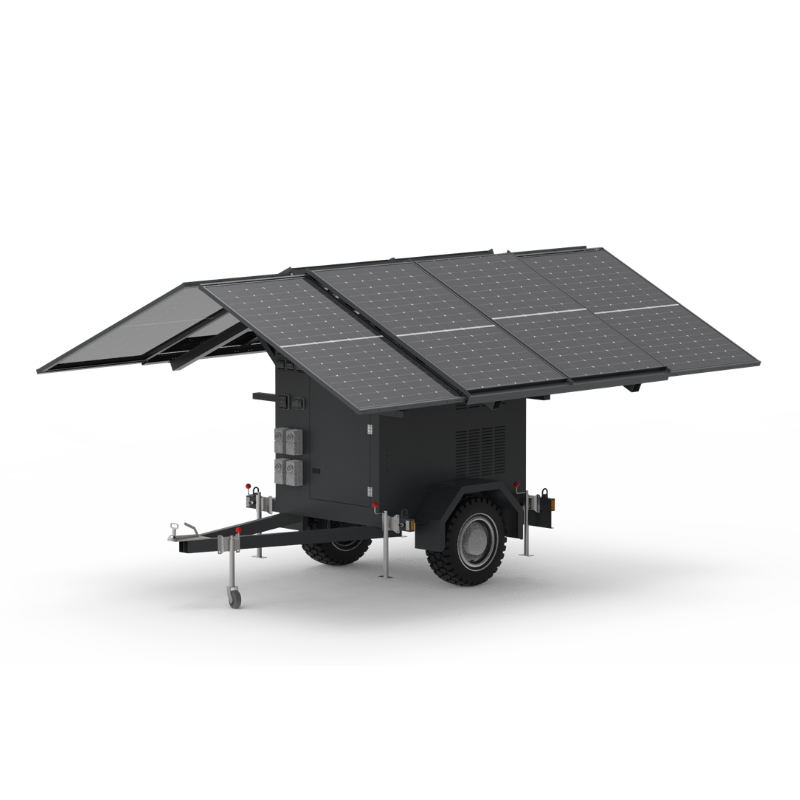

Rover Solar Trailer, Transportable Power System
Rover Solar Trailer Off Grid Power System
A fully road transportable and registrable off-grid power system, deploy to site and plug straight into an existing building or application. Suited to farming, off-grid living, emergency services and off-grid construction sites. Both configurations include a 4.08kW A Grade solar array, a Victron Multiplus II inverter, 4G cellular monitoring with a GPS locator, and an optional built-in petrol backup generator. R 5 runs a 5kVa system with a 10kWh expandable battery, R 8 steps up to an 8kVa system with a 20kWh expandable battery.
✓ 4.08kW A Grade Solar Array ✓ Victron Multiplus II Inverter ✓ 4G Monitoring & GPS Locator ✓ Road Transportable & Registrable
-
✓4.08kW A Grade solar array
8x 510W modules, approximately 20.9kW daily yield -
✓Victron Multiplus II inverter
5kVa on R 5, 8kVa on R 8, with 2x 150/45 MPPT charge controllers -
✓4G cellular monitoring and GPS locator
12 months included, plus guest monitoring access -

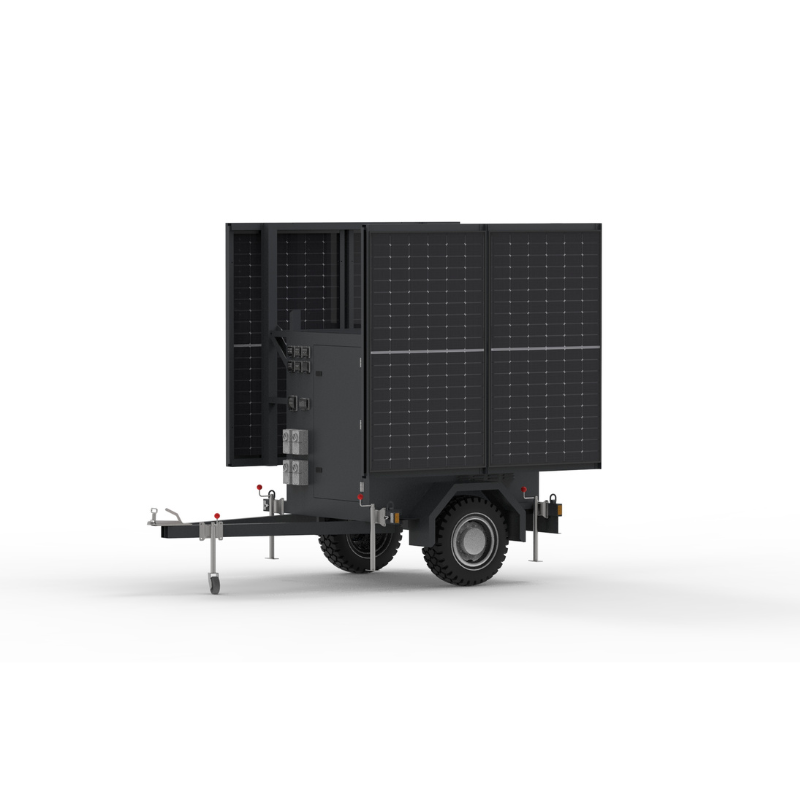

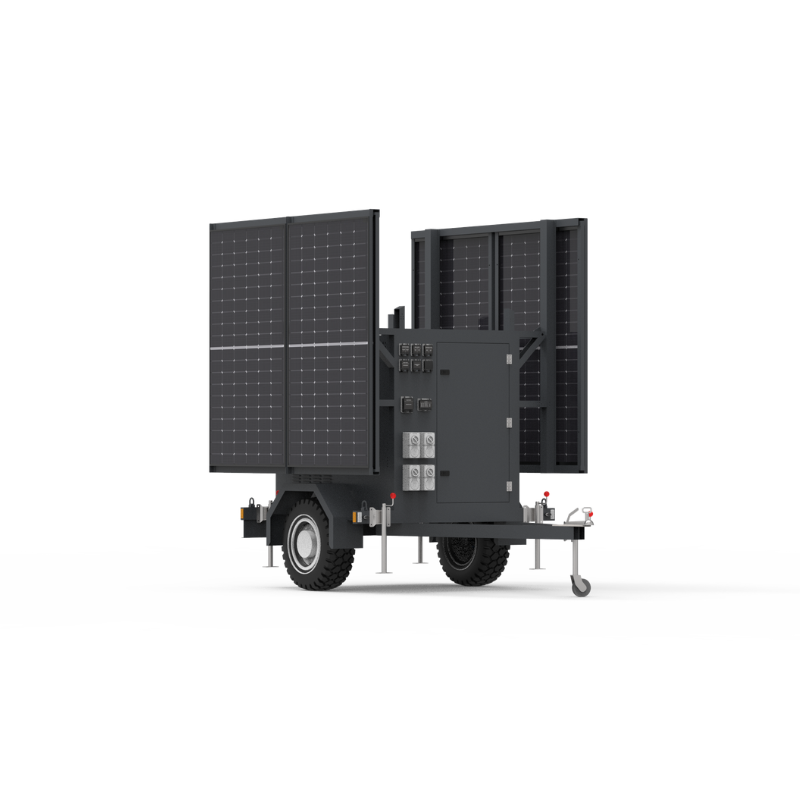

✓Fully road transportable and registrable
Deploy to site and plug straight into an existing building or application

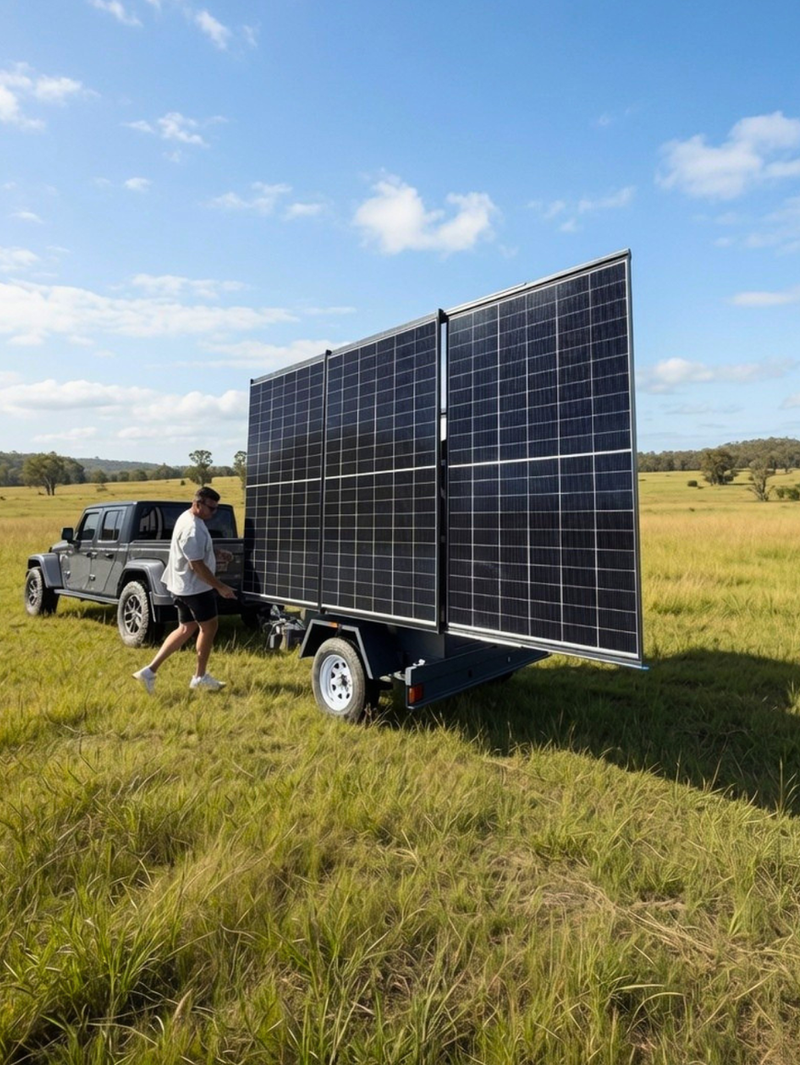

Deploy To Site, Plug In And Go

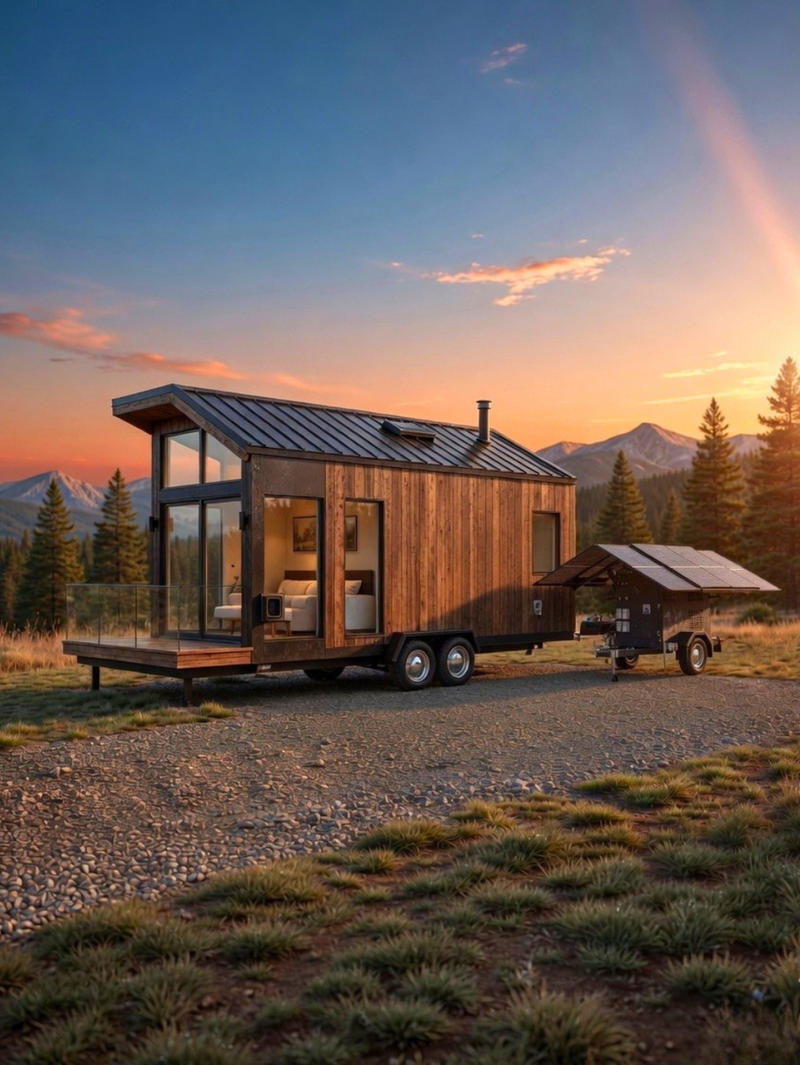

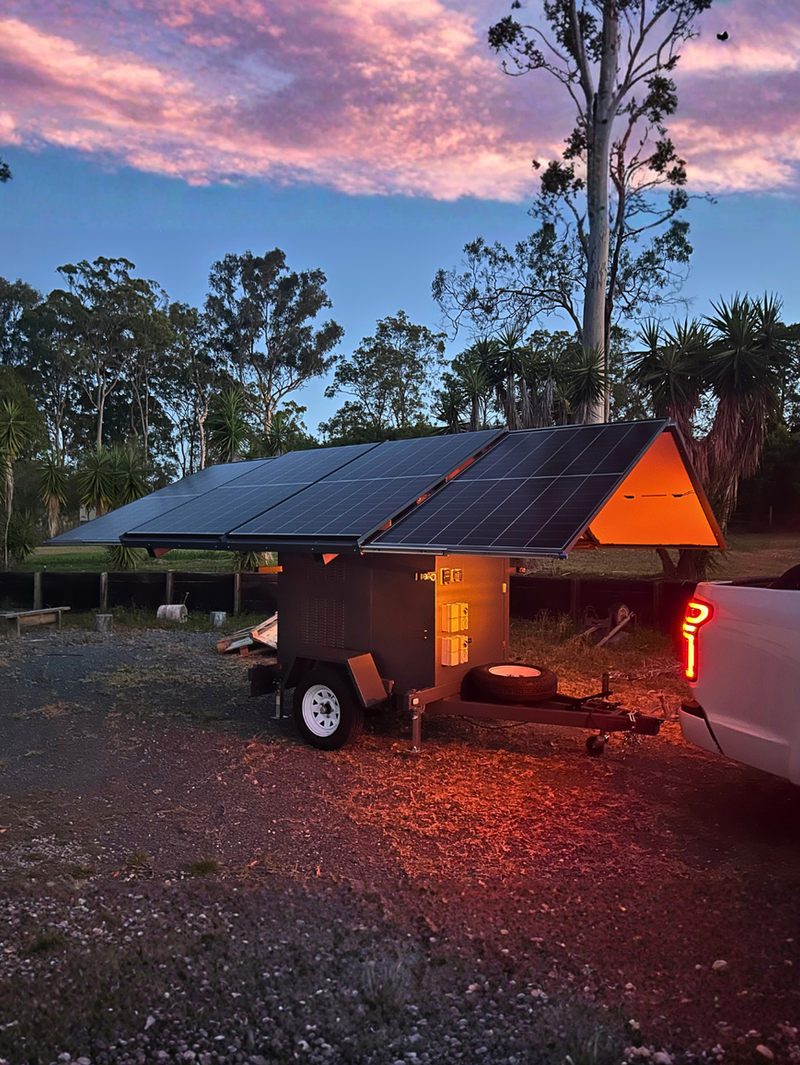

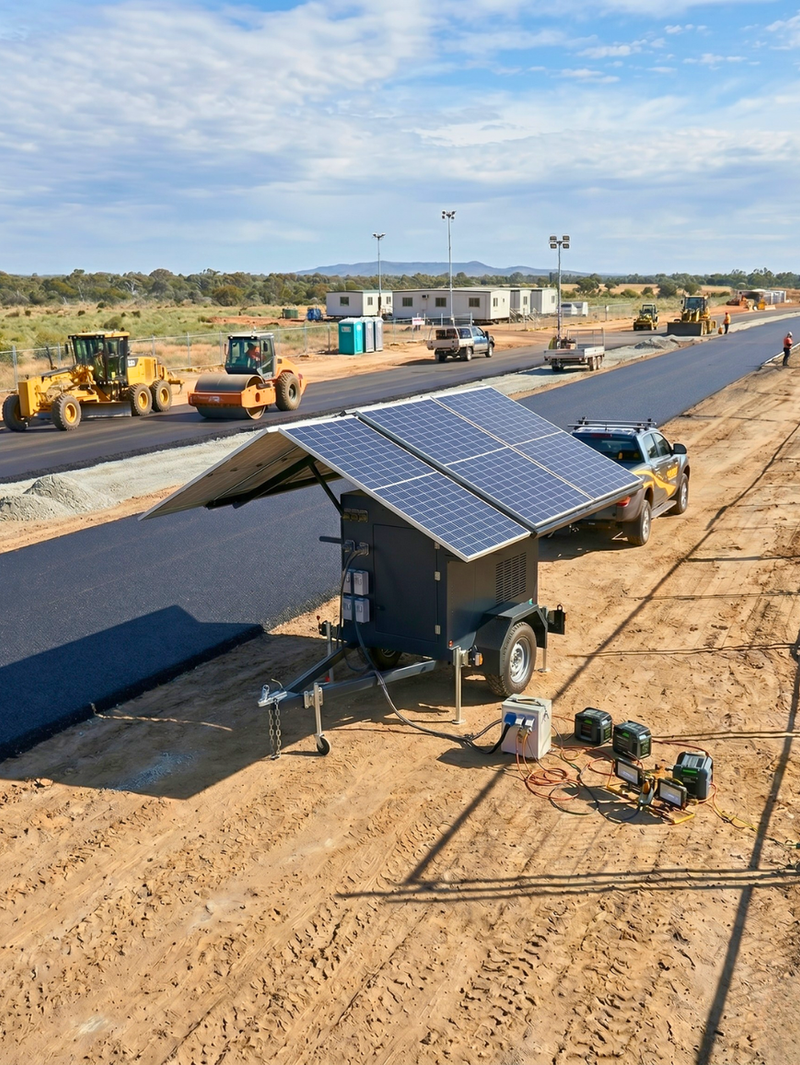

The Rover Solar Trailer is fully road transportable and registrable, so it can be towed to site and connected directly to an existing building or application. It suits farming, off-grid living, emergency services and off-grid construction sites where a fixed installation is not practical. Pricing excludes registration and delivery.
Victron Power, Precisely Monitored
A Victron Multiplus II inverter, 5kVa on R 5 or 8kVa on R 8, is paired with 2x 150/45 MPPT charge controllers for efficient charging from the 4.08kW solar array. 4G cellular monitoring with a GPS locator is included for the first 12 months, along with guest monitoring access, so performance can be checked remotely.
Primary And Auxiliary Power, Pre-Wired And Ready
Primary and auxiliary AC output is provided alongside a 15amp and 10amp accessory outlet. The system board is pre-wired and configured, and an auto-start petrol back up generator is available as an optional built-in extra on both configurations. Free consultations and support are included.
Specifications
- Solar Array4.08kW, 8x A Grade 510W modules, approx 20.9kW daily yield
- InverterVictron Multiplus II, 5kVa (R 5) or 8kVa (R 8)
- Charge Controllers2x 150/45 MPPT
- Battery Capacity5kWh (R 5) or 10kWh (R 8), expandable up to 30kWh total
- Back Up GeneratorBuilt in 6kVa petrol, auto start optional
- Monitoring4G cellular monitoring (12 months) with GPS locator and guest monitoring
- AC OutputPrimary & auxiliary AC output, 15amp / 10amp accessory
- R 5 Dimensions, Folded4850mm L x 3800mm W x 2600mm H
- R 5 Dimensions, Deployed3750mm L x 2050mm W x 3000mm H
- R 8 Dimensions, Folded3695mm L x 2086mm W x 2890mm H
- R 8 Dimensions, Deployed4840mm L x 3823mm W x 2555mm H
Configuration & Pricing
- R 5, 5kVa with 10kWh Battery$38,500 +GST
- R 8, 8kVa with 20kWh Battery$46,410 +GST
What's Included
What's Included
- 4.08kW solar array, 8x A Grade 510W panels
- Victron Multiplus II inverter with 2x 150/45 MPPT charge controllers
- Expandable lithium battery, 5kWh (R 5) or 10kWh (R 8)
- 4G cellular monitoring (12 months), GPS locator and guest monitoring
Power Output
Primary and auxiliary AC output, plus a 15amp and 10amp accessory outlet, at a regular 240V AC.
Back Up Generator
A built-in 6kVA petrol generator with optional auto start is available on both R 5 and R 8, so the system keeps charging through extended periods of low sun.
Transport & Registration
Fully road transportable and registrable. Pricing excludes registration and delivery, contact us for a freight and registration quote for your location.
Frequently Asked Questions
What is the difference between R 5 and R 8?
Both share the same 4.08kW solar array. R 5 runs a 5kVa Victron inverter with a 10kWh battery capacity, R 8 steps up to an 8kVa Victron inverter with a 20kWh battery capacity. Both are expandable up to 30kWh total.
Does the price include registration and delivery?
No. Pricing excludes registration and delivery, contact us for a freight and registration quote for your location.
Can I connect a backup generator?
Yes, both R 5 and R 8 include a built-in 6kVa petrol generator with an optional auto start upgrade.
Can I monitor the trailer remotely?
Yes, 4G cellular monitoring is included for the first 12 months, along with a GPS locator and guest monitoring access.
