Power Core Accessory
Power Core Installation Cable 000AWG 250A Fuse
A pre-made 000AWG (90mm²) cable pair for connecting your battery to the Power Core, sized to carry its full continuous output without heat build-up or voltage drop. Both leads come cut to 1m and factory-crimped with M10 lugs at one end and M8 at the other, with a 250A MEGA fuse pre-installed on the positive lead.
✓ 000AWG (90mm²) Cable Pair✓ 250A Fuse Pre-Installed✓ Factory-Crimped Terminals✓ 1m Leads
-
✓Sized for the job
000AWG carries the Power Core's full continuous output without excess heat or voltage drop -
✓250A MEGA fuse included
Pre-installed on the positive lead to protect the cable itself -
✓Factory-crimped lugs
M10 at one end, M8 at the other, ready to bolt down -
✓No hydraulic crimper needed
Skip the specialist tooling that 90mm² cable normally requires
The Right Gauge For High-Output 12V Systems
At 12V, high-output systems pull serious current, and current is what dictates cable size. Undersized cable on a run like this doesn't just cost you performance, it gets hot. 000AWG is the gauge the job calls for, and both leads come cut to 1m and terminated ready to bolt down. Crimping 90mm² cable properly needs a hydraulic crimper and the right dies, not something most people have in the shed, and a poor crimp on a cable this size is a genuine hazard. These arrive factory-crimped, with a 250A MEGA fuse pre-installed on the positive lead to protect the cable if a fault ever draws more current than it can safely carry.
Specifications
- Cable Gauge000AWG (90mm²)
- Lead Length1m each (positive and negative)

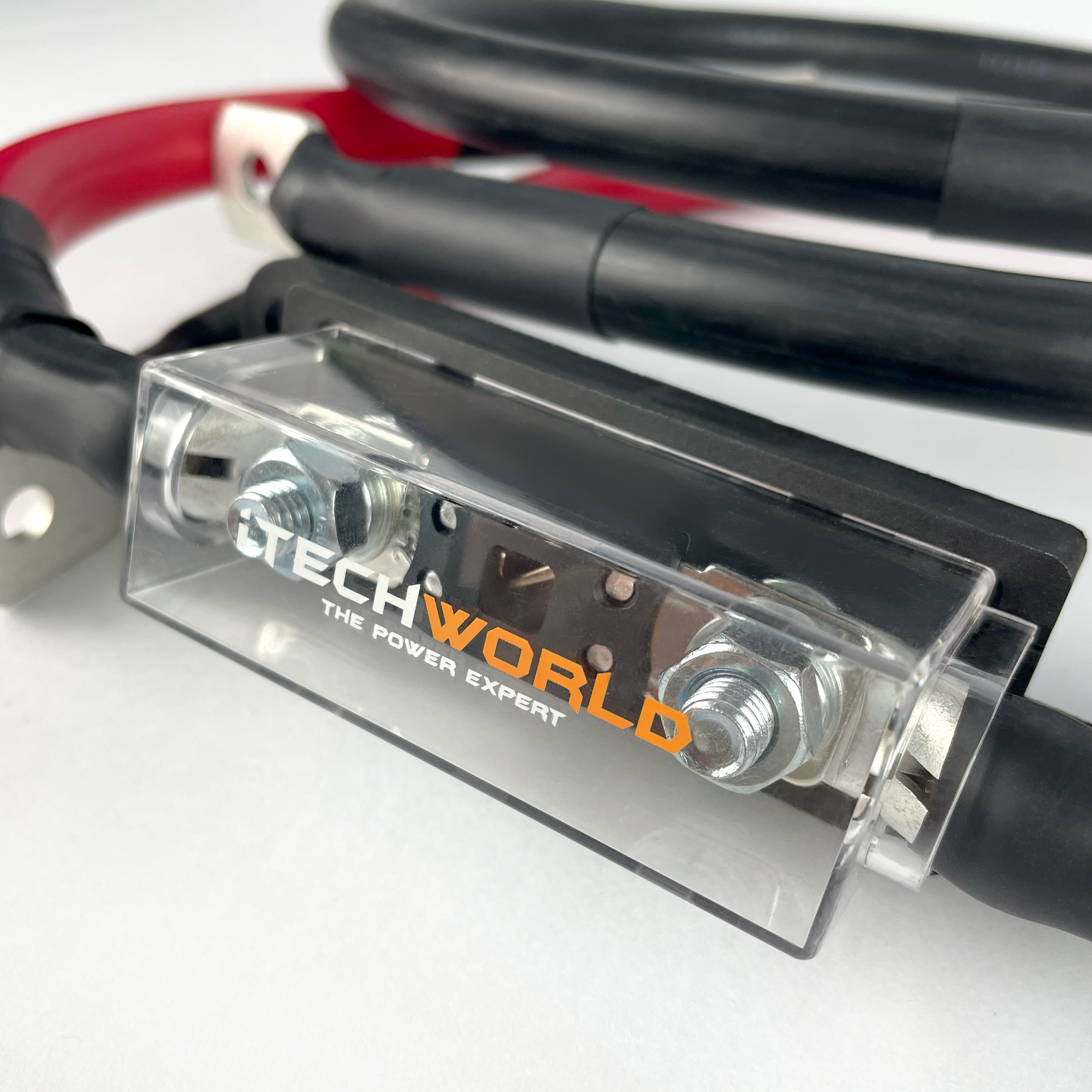

- Fuse250A MEGA fuse, pre-installed on positive lead

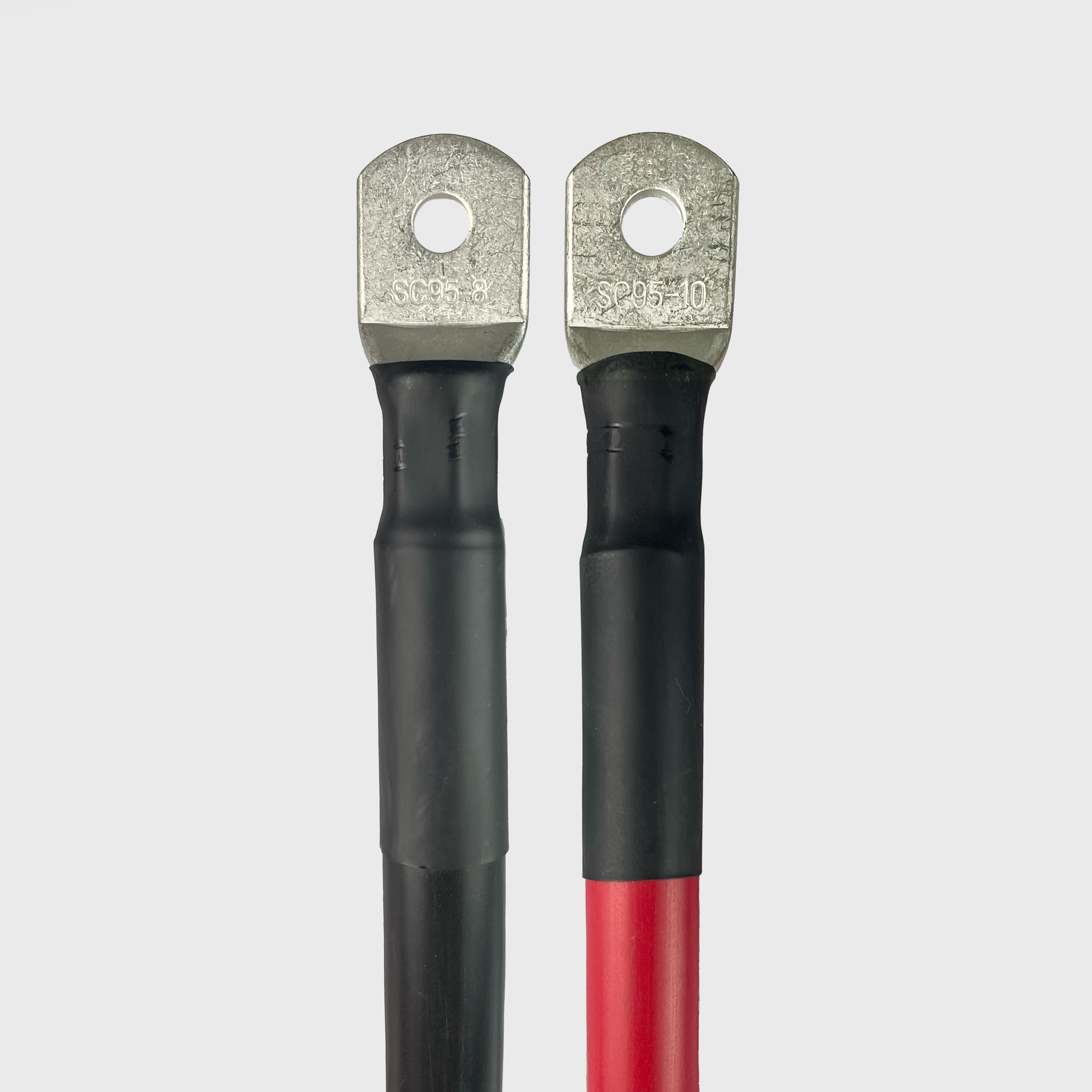

- TerminalsM10 lug one end, M8 lug other end, factory-crimped
What's In The Box

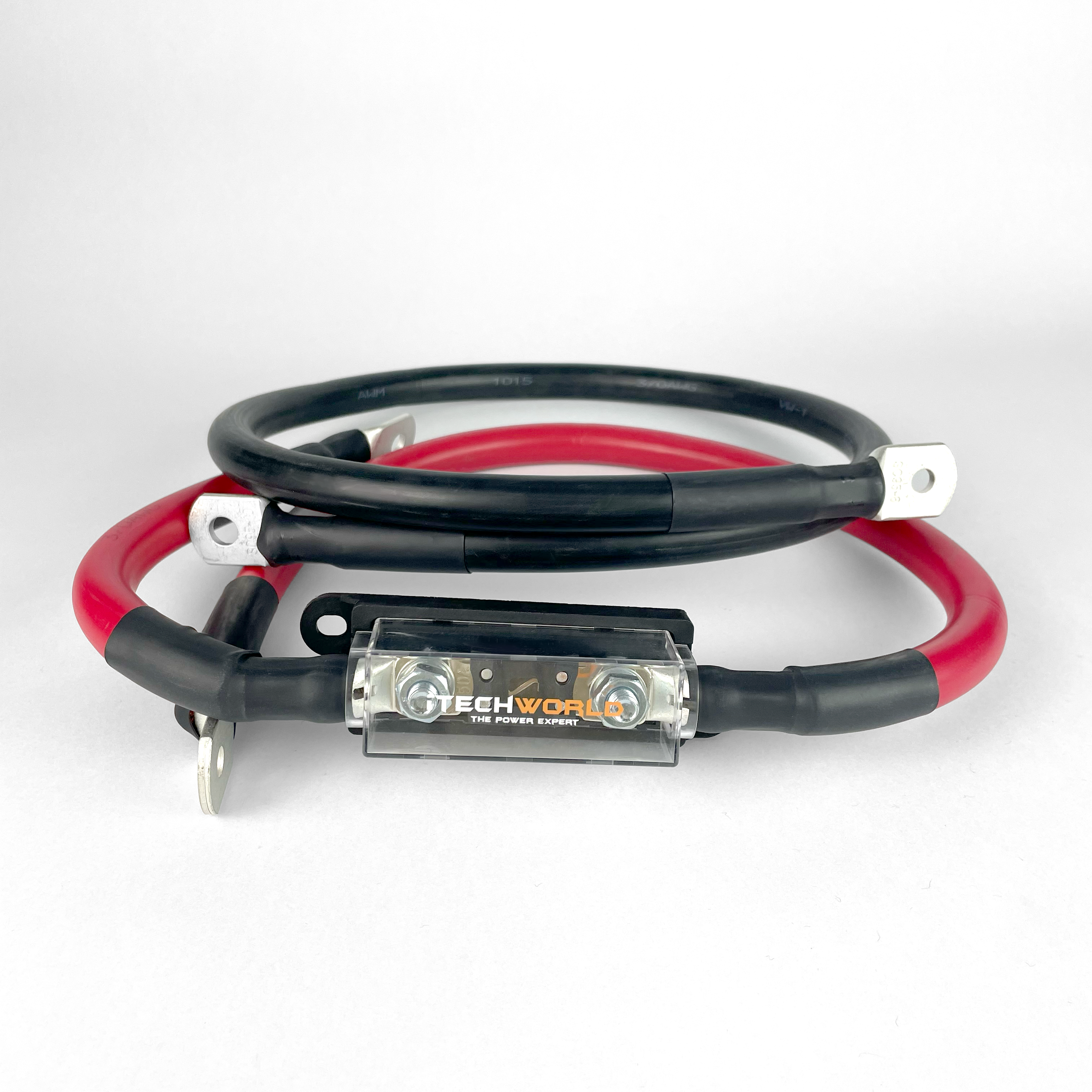

- Positive cable, 1m, 250A MEGA fuse pre-installed1
- Negative cable, 1m1
Frequently Asked Questions
Why does the Power Core need such a thick cable?
At 12V, high-output systems pull serious current, and undersized cable gets hot and costs you performance. 000AWG (90mm²) is the gauge sized to carry the Power Core's full continuous output safely.
Do I need to crimp this myself?
No. Both leads arrive factory-crimped with M10 and M8 lugs, so you avoid needing a hydraulic crimper and the right dies for 90mm² cable.
What does the fuse protect?
The 250A MEGA fuse pre-installed on the positive lead protects the cable itself. If a fault ever draws more current than the cable can safely carry, the fuse opens before the cable becomes the weak point.
Can I install this myself?
Isolate the battery before installing, and torque terminals to the Power Core's specification. If you are unsure, we recommend a qualified auto electrician.
