Pump Station, 3 Capacities, 2 Configurations

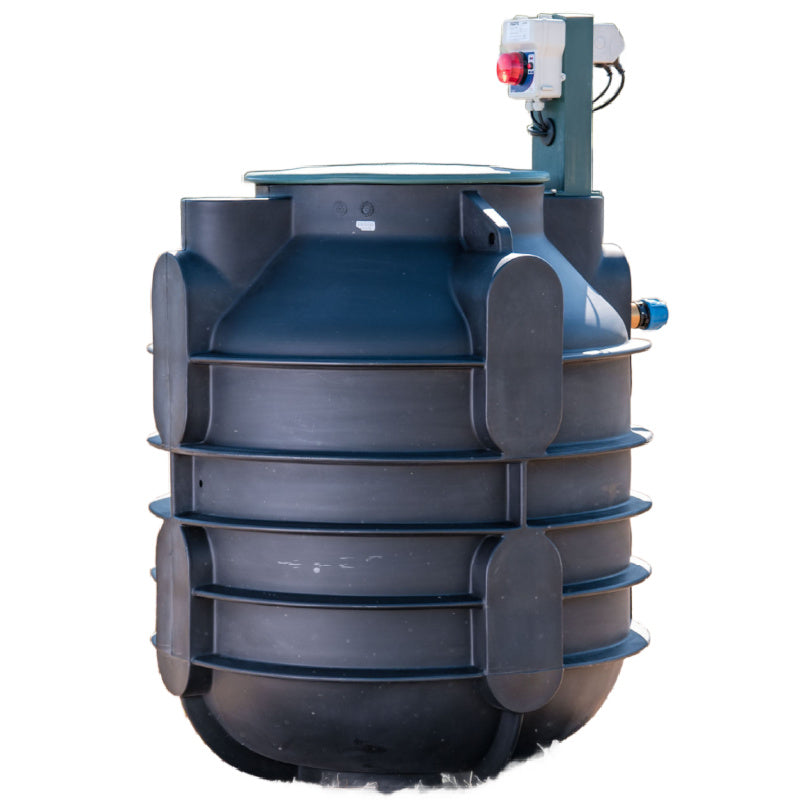

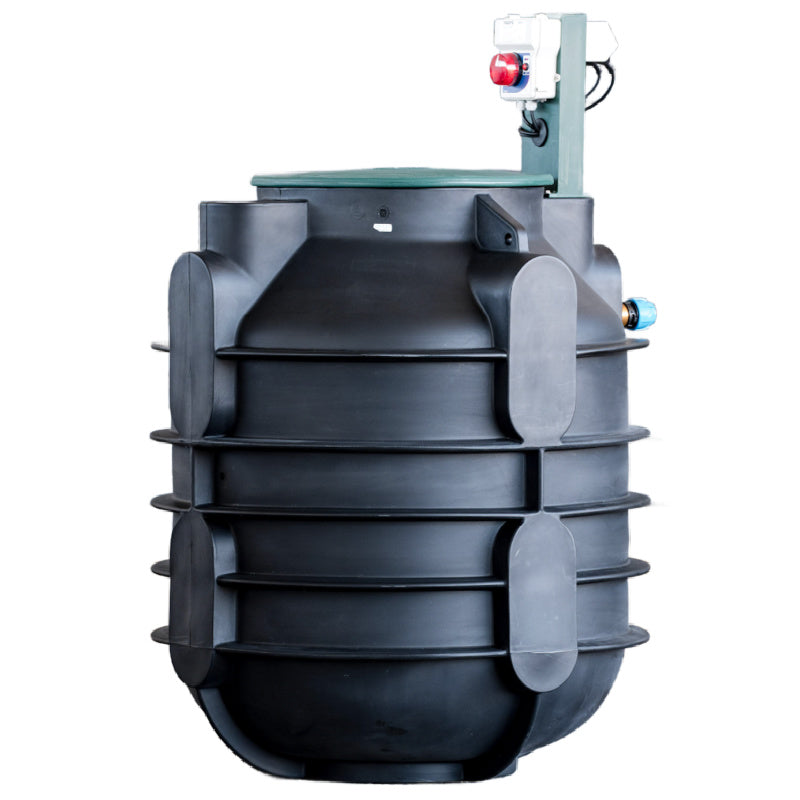

Polymaster Pump Station
A tough, fully pre-plumbed pump station in a one piece rotationally moulded chamber, with the pump, valves, pipework and high level alarm already fitted. Choose the configuration that suits your wastewater: Sewer / Black Water for sewage with solids, or Stormwater / Grey Water for cleaner applications like roof catchments, car parks and washdown areas. Available in 700L, 1000L and 1300L.
✓ 700L, 1000L & 1300L
✓ Sewer or Stormwater / Grey Water
✓ High Level Alarm
✓ AS/NZS 1546.1 Certified
✓ 10 Year Chamber Warranty
See It In Action
-
✓Pump matched to the liquid
A grinder and macerator pump for sewer, or a vortex sump pump for stormwater and grey water -
✓Alarm and power built in

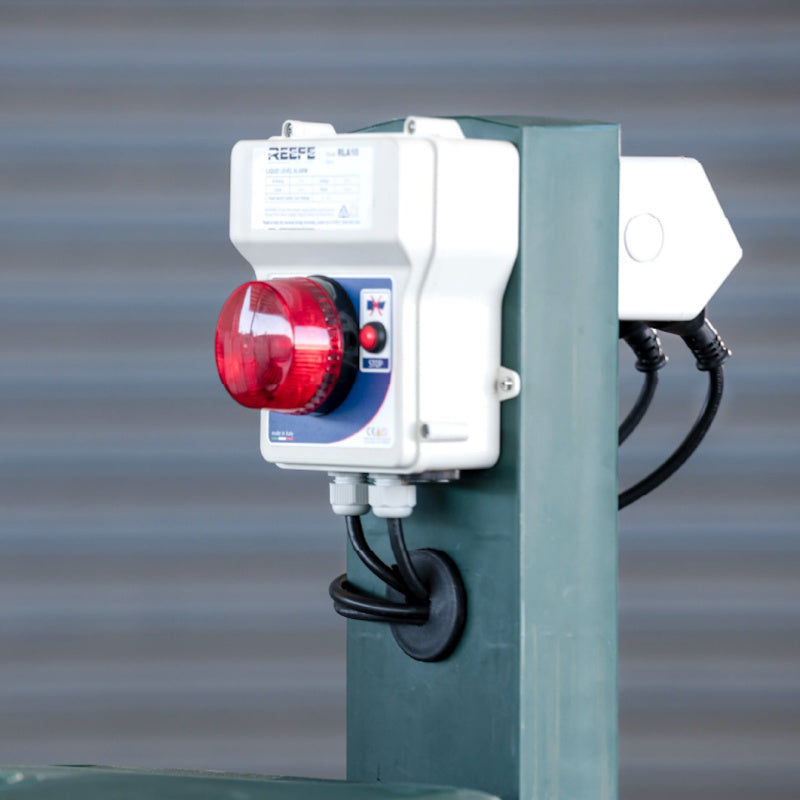

Pre-installed high level visual and audible alarm, plus an outdoor power point -
✓Serviceable by design

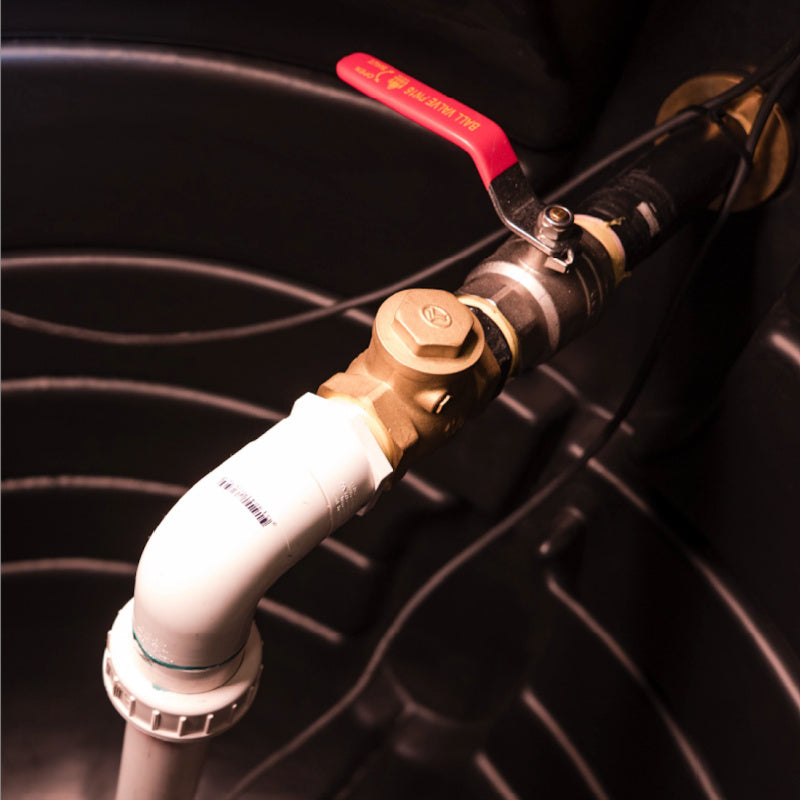

Brass ball valve, swing check valve and PVC barrel union let the pump come out without draining the whole unit -
✓Easy to install
Lightweight with lifting lugs and a 500kg rated lid, three capacities to suit the job
Two Configurations, One Pump Station

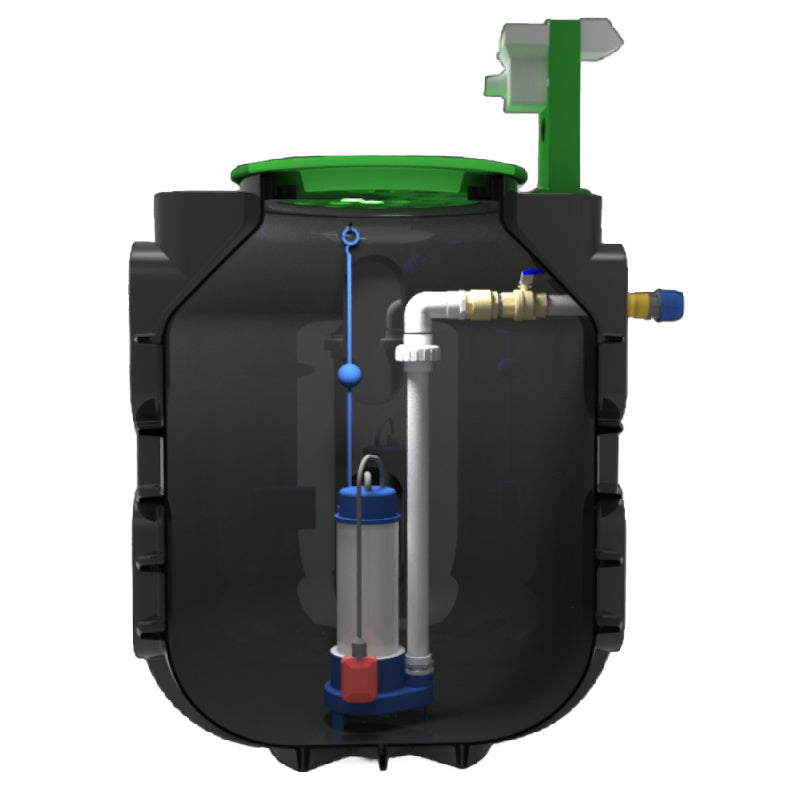

Sewer / Black Water units use a hybrid grinder and macerator pump. It combines the higher flow of a cutter pump with the head pressure and grinding benefits of a grinder, and its external cutter mechanism cuts solids before they enter the pump for fewer blockages and easier maintenance. Stormwater / Grey Water units use a vortex sump pump built to pass grit, leaves and debris through rather than choke on it. Both share the same vessel, alarm, fittings and lid.
Fully Pre-Plumbed, Ready To Install

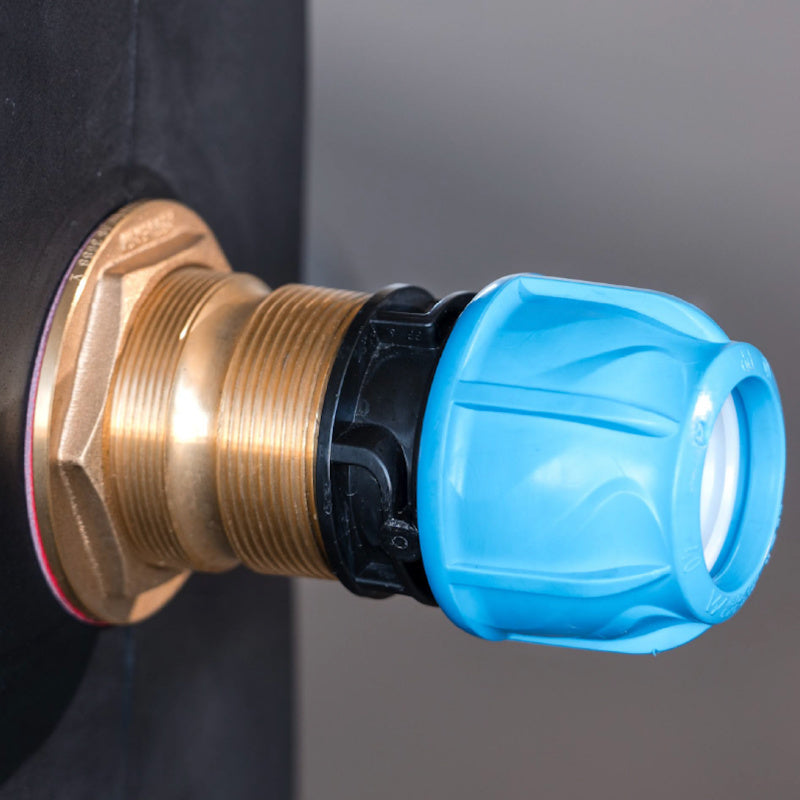

Every unit arrives with the pump, brass ball valve, swing check valve, PVC barrel union and pipework already factory fitted, including a 40mm brass discharge outlet with a 40mm poly pipe connector. The barrel union means the pump can be removed for servicing without cutting into the plumbing, so a plumber can connect it and move on rather than assembling fittings on site.
One Piece Chamber, Alarm And Easy Servicing
The chamber is one piece polyethylene, rotationally moulded with no seams, welds or joins, so it will not rust, rot or crack. Engineered ribbing helps it resist uplift in compacted granular backfill. A pre-installed visual and audible high level alarm gives early warning if the pump ever falls behind, and the 500kg rated lid stands up to foot traffic once it is in the ground. Higher rated lids are available for driveways and trafficked areas.
Capacities & Key Specs
- 700L1090mm W x 1090mm L x 1650mm H, 80kg
- 1000L1090mm W x 1090mm L x 2030mm H, 100kg
- 1300L1090mm W x 1090mm L x 2420mm H, 120kg
- Discharge Outlet40mm brass, with 40mm poly pipe connector
- Lid Rating500kg
- StandardAS/NZS 1546.1
- Warranty10 years on the polyethylene chamber
Specifications
Capacities & Pricing
- 700L, Stormwater / Grey Water: $2,925
- 700L, Sewer / Black Water: $3,800
- 1000L, Stormwater / Grey Water: $3,950
- 1000L, Sewer / Black Water: $4,850
- 1300L, Stormwater / Grey Water: $4,200
- 1300L, Sewer / Black Water: $5,125
Pump & Fittings
Sewer / Black Water: hybrid grinder and macerator pump with an external cutter mechanism. Stormwater / Grey Water: vortex sump pump. All units include a brass ball valve, swing check valve, PVC barrel union, 40mm brass discharge outlet and 40mm poly pipe connector, factory fitted.
Construction & Certification
One piece rotationally moulded polyethylene chamber, certified to AS/NZS 1546.1 and made under an ISO 9001 quality system. Pre-installed high level visual and audible alarm with outdoor power point. 500kg rated lid and lifting lugs.
Origin & Installation
Australian made and fully pre-plumbed for straightforward installation. A licensed plumber and electrician are required.
Freight & Delivery
Freight is quoted based on your location. Contact us on 1300 970 390 or info@homesteadhaven.com.au for a delivery quote.
Frequently Asked Questions
Should I choose Sewer / Black Water or Stormwater / Grey Water?
Choose Sewer / Black Water if the unit will handle sewage with solids and organic waste. Its grinder and macerator pump cuts solids before discharge. Choose Stormwater / Grey Water for cleaner applications such as roof catchments, car parks and washdown areas, where the vortex sump pump passes grit, leaves and debris through. Both share the same vessel, alarm, fittings and lid.
Which capacity should I choose?
It depends on the volume of water your system needs to handle and the site conditions, which is best worked out with your plumber. The 700L, 1000L and 1300L units share the same pump, alarm, fittings and 500kg rated lid, so the choice comes down to capacity and depth.
Does this need to be installed by a licensed plumber?
Yes. While the unit arrives fully pre-plumbed with the pump and valves already fitted, installation and connection should be carried out by a licensed plumber and electrician in line with local regulations.
Do you offer a price match guarantee?
Yes. Found it cheaper elsewhere? Let us know and we will do our best to beat it.
