200Ah Control Hub Kit with 2 x iTECH100 Lithium
A complete 200Ah dual-battery system: the Premium Control Hub with 40A DCDC charger, paired with two iTECH100 lithium batteries for 200Ah of usable capacity at under a third the weight of an equivalent AGM setup.
-
✓2 x iTECH100 lithium batteries
100Ah each for 200Ah total, with 100% usable depth of discharge -
✓Control Hub with iTECHDCDC40
40A DC-DC and MPPT solar charger, pre-installed -
✓Under 1/3 the weight of AGM
200Ah of usable lithium capacity at a fraction of lead-acid weight -
✓4,000+ life cycles
Rated at 50% depth of discharge, with a 36 month battery warranty

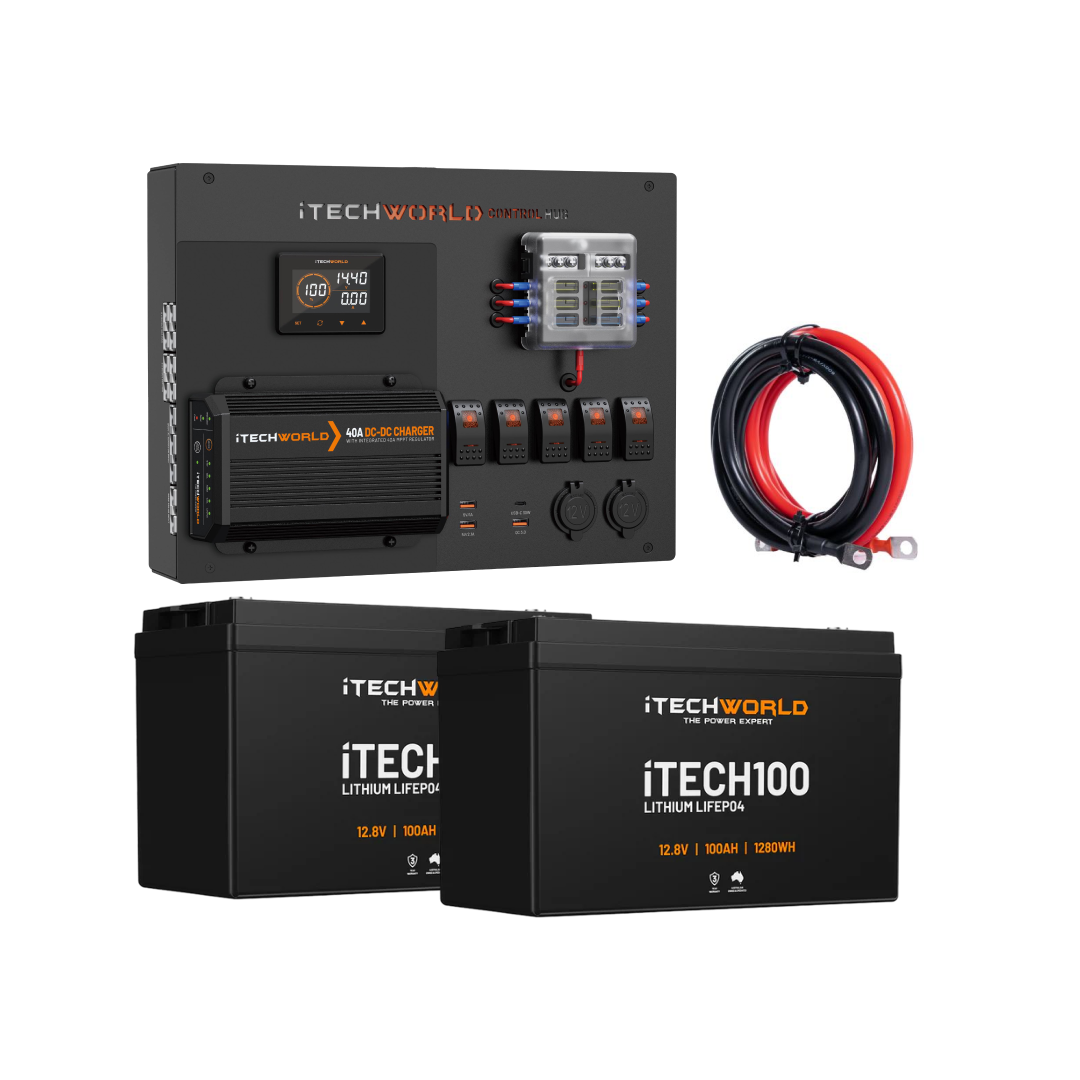

A Complete 200Ah System In One Order
This kit pairs the Premium Control Hub with integrated iTECHDCDC40 40A charger and two Australian designed iTECH100 lithium batteries, giving you 200Ah of true usable capacity, since each battery discharges to 100% depth of discharge, unlike lead-acid which is typically limited to around 50%. Each battery delivers a peak output of 250A and 150A continuous, weighs just 13kg, and is backed by a 36 month warranty. The Control Hub adds the same 5-switch panel, 6-way fuse panel and low-voltage alarm found across the range, and the kit includes a 4AWG 1.5m installation cable to wire it all together. Free shipping is included on this kit.

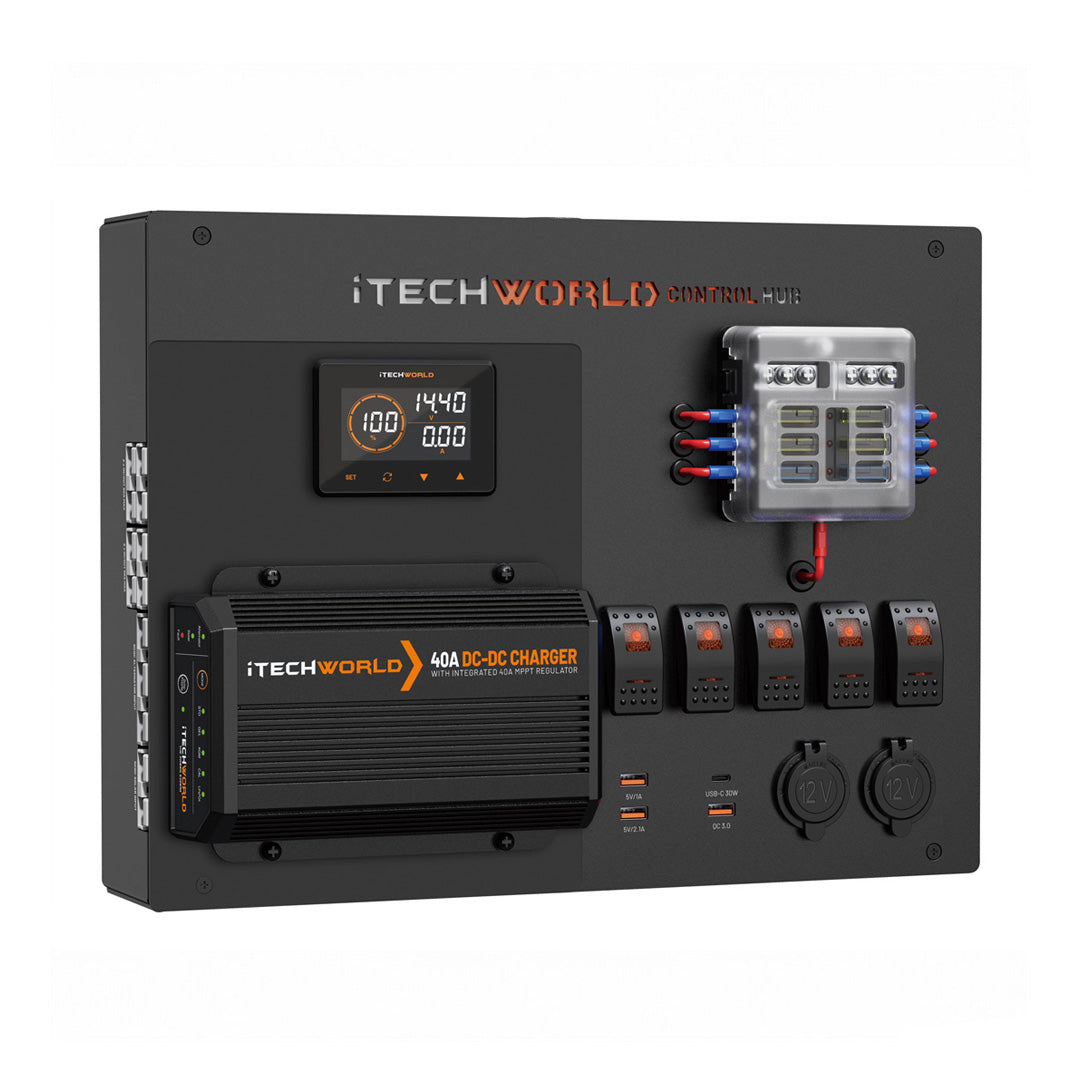

Control Hub Specifications
- Dimensions403 x 304 x 116mm (119mm with charger attached)
- Integrated ChargeriTECHDCDC40, 40A DC-DC, vehicle input 9-32V, solar input 10-32V
- Operating Temperature-20°C to 80°C
- Outputs4 x 50A Anderson-style (in/out), 2 x cig sockets, 2 x 2.4A USB-A, 1 x QC3.0 USB, 1 x USB-C
- Warranty12 months (statutory)

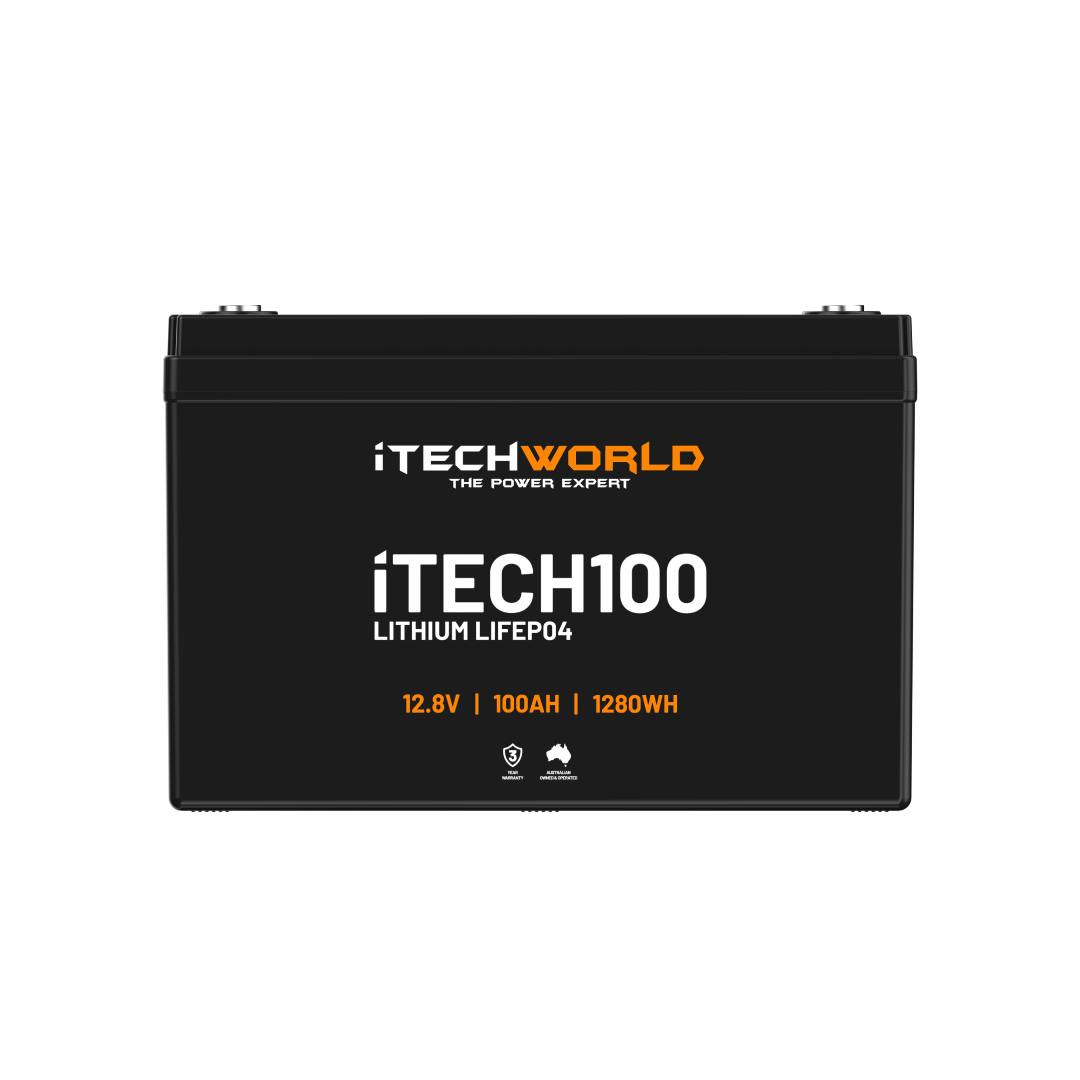

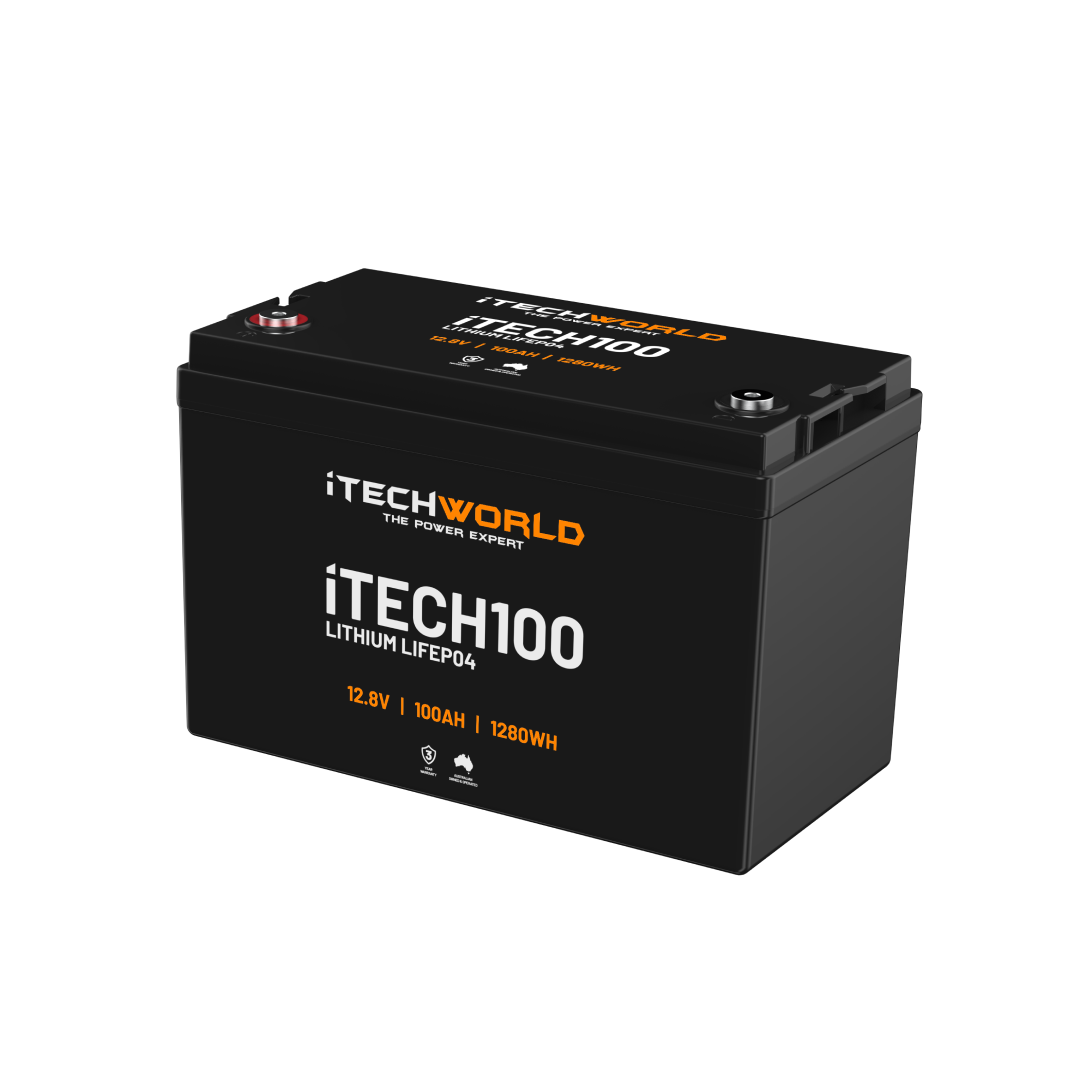

iTECH100 Batteries (x2) Specifications
- Capacity (each)100Ah, 12.8V nominal, 100% usable depth of discharge
- Total Capacity200Ah combined
- Dimensions (each)330 x 173 x 215mm (225mm with terminals)
- Weight (each)13kg
- Discharge (each)150A continuous, 250A peak
- Cycle Life4,000+ cycles at 50% DoD
- Warranty36 months
What's In The Box
- Control Hub with integrated iTECHDCDC401
- iTECH100 lithium battery2
- 4AWG 1.5m installation cable1
Frequently Asked Questions
Why 2 x 100Ah instead of one 200Ah battery?
Splitting capacity across two smaller batteries can make installation easier in tight spaces and gives you some redundancy if one battery ever needs servicing.
How does 200Ah lithium compare to lead-acid?
Because each iTECH100 battery discharges to 100% depth of discharge versus roughly 50% for AGM, this 200Ah lithium pair delivers usable capacity equivalent to a much larger, heavier lead-acid bank, at under a third of the weight.
Is the installation cable included?
Yes, a 4AWG 1.5m installation cable is included for the 12V connection.
Does this kit include solar charging?
Yes. The integrated iTECHDCDC40 charger accepts solar input via MPPT in addition to vehicle charging.
