iTechWorld 200Ah Ultra Slim Power Core All-in-One Complete System

Save $1,364.35
Original Price $5,399.00
Current Price $4,034.65
Orientation

Notify me when back in stock

Stocked by Homestead Haven • 100% Aussie Owned & Operated • Australia Wide Delivery
Power Core Bundle

iTechWorld 200Ah Ultra Slim Power Core All-in-One Complete System

A simplified, all-in-one power solution for canopy and touring setups where space efficiency and reliability matter most. Combines the Power Core with a 200Ah Ultra Slim lithium battery and a plug-and-play 40A DC-DC wiring kit, removing the guesswork for a clean install and confident off-grid performance.

✓ 200Ah Ultra Slim LiFePO4 Battery✓ Plug-and-Play DC-DC Wiring Kit✓ 2000W / 4000W Peak Inverter✓ 5 Year Battery Warranty
  • ✓Plug-and-play wiring kit included
    40A DC-DC wiring kit takes the guesswork out of connecting the battery
  • ✓200Ah Ultra Slim battery
    Reinforced structure in a narrow profile for tight canopy installs
  • ✓10,000+ cycles
    Rated at 40% depth of discharge, or 5,000+ cycles at 80% DoD
  • ✓Bluetooth monitoring
    Check state of charge and battery health from your phone

A Clean, Simplified Install

Built for canopy and touring setups where space efficiency and reliability are key, this kit combines a 200Ah Ultra Slim lithium battery with the Power Core's integrated inverter, dual charging and battery monitor, plus a plug-and-play 40A DC-DC wiring kit so there is no need to piece together individual components. The result is dependable power for fridges, lighting and accessories, with a clean, professional-looking install.

Power Core Specifications

  • Dimensions668 x 151 x 641mm
  • Weight21.8kg
  • Inverter Output2000W continuous, 4000W peak, pure sine, 90% efficiency, under 3% THD
  • DC-DC Charger40A, 9V to 32V input, under 15mA standby draw
  • AC Charger40A, 220V to 240V input, max 700W
  • Battery Monitor500A shunt, 10V to 100V, ±1% accuracy
  • Outputs18W USB QC3.0, 30W USB-C, 12V 15A cigarette socket, 2x 50A Anderson
  • Warranty1 year

200Ah Ultra Slim Battery Specifications

  • Capacity200Ah, 12.8V nominal
  • Dimensions554 x 62 x 374mm (572mm including terminals)
  • Weight23.1kg
  • Discharge200A continuous, 640A peak (5 seconds)
  • Operating Temperature5°C to 60°C
  • Cycle Life10,000+ cycles at 40% DoD, 5,000+ cycles at 80% DoD
  • FeaturesBluetooth monitoring, reinforced structure
  • Warranty5 years

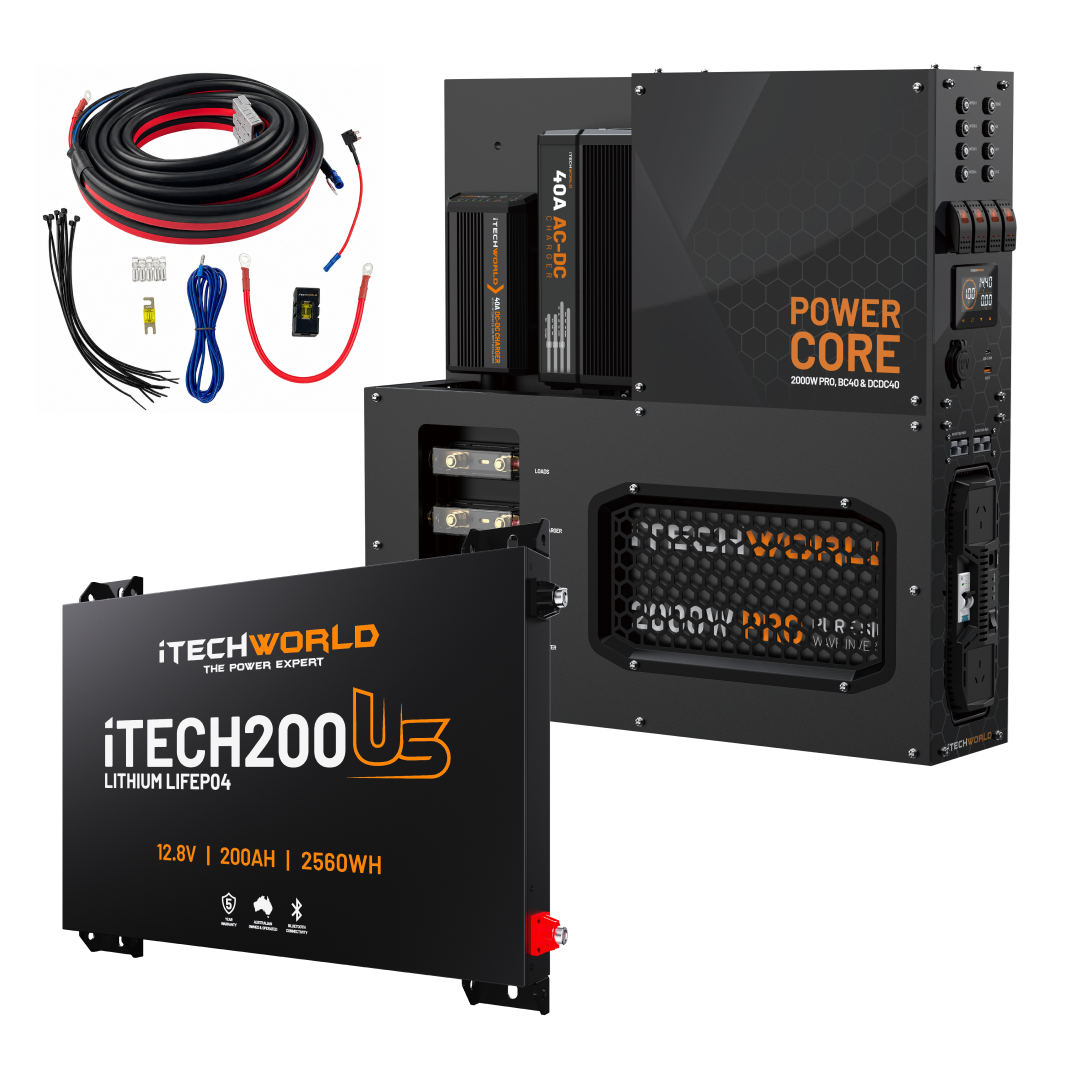

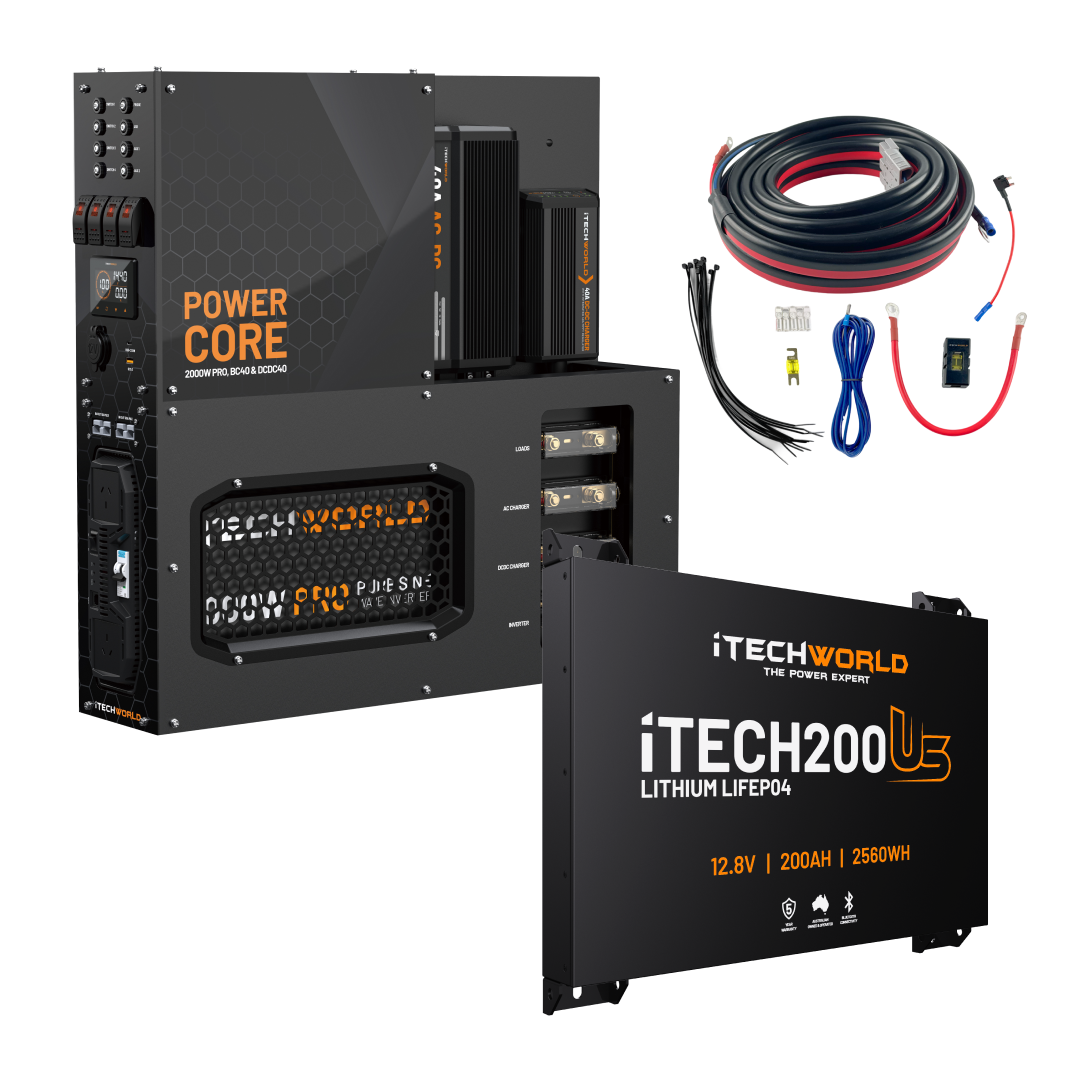

What's In The Box

  • Power Core unit1
  • 200Ah Ultra Slim battery1
  • Plug-and-play 40A DC-DC wiring kit1
  • Guides, screws, fuses and terminals1 set

Frequently Asked Questions

What makes this different from the Super Slim kit?

The Ultra Slim battery has a narrower, deeper profile than the Super Slim battery, suiting different canopy and drawer install spaces, and this kit also includes a plug-and-play 40A DC-DC wiring kit.

Is the wiring kit really plug and play?

Yes. The included 40A DC-DC wiring kit is designed to remove the guesswork from connecting the battery to the Power Core.

Can I monitor the battery remotely?

Yes. The battery has built-in Bluetooth so you can check state of charge and battery health from your phone.

Can I choose the Power Core orientation?

Yes. Left and right orientation options are available to suit your install space.
