Industrial Dehydrator Accessory
Industrial Trolley | Stainless Steel
A standalone 304 food-grade stainless steel trolley for BenchFoods industrial dehydrators, on rotating caster wheels for easy loading and movement. Choose your layer height to set tray count and spacing, and optionally add a full set of trays. Perfect for expanding an existing industrial unit's batch capacity or keeping a spare trolley loaded and ready to go.
✓ 304 Stainless Steel
✓ Rotating Caster Wheels
✓ 5 Layer Height Options
✓ Optional Tray Sets
-
✓304 food-grade stainless steel construction
Sturdy build designed for continuous industrial use -
✓Rotating caster wheels
Move the loaded trolley easily in and out of your dehydrator -
✓Five layer height options
15, 18, 20, 25, or 30 layers, each holding 2 industrial trays per level -
✓Optional tray sets
Add mesh, fine mesh, perforated pan, or flat pan trays, or order the trolley bare
Expand Your Batch Capacity
This trolley is sold separately from the dehydrator units, so you can add extra loading capacity to an existing BenchFoods industrial dehydrator, or keep a spare trolley pre-loaded and ready to swap in between batches. Every layer holds two of our 46 x 64cm industrial trays, and reducing the spacing between layers lets you fit more trays per trolley for thinner product.
Dimensions & Key Specs
- Trolley Dimensions930mm W x 1450mm H x 645mm D
- Material304 Commercial Grade Stainless Steel
- Tray Size (if added)46cm x 64cm each
- Layer Height Options15, 18, 20, 25, or 30 layers
- Total Tray Area8.8m² to 17.7m² depending on layer height
Trolley Options & Specs

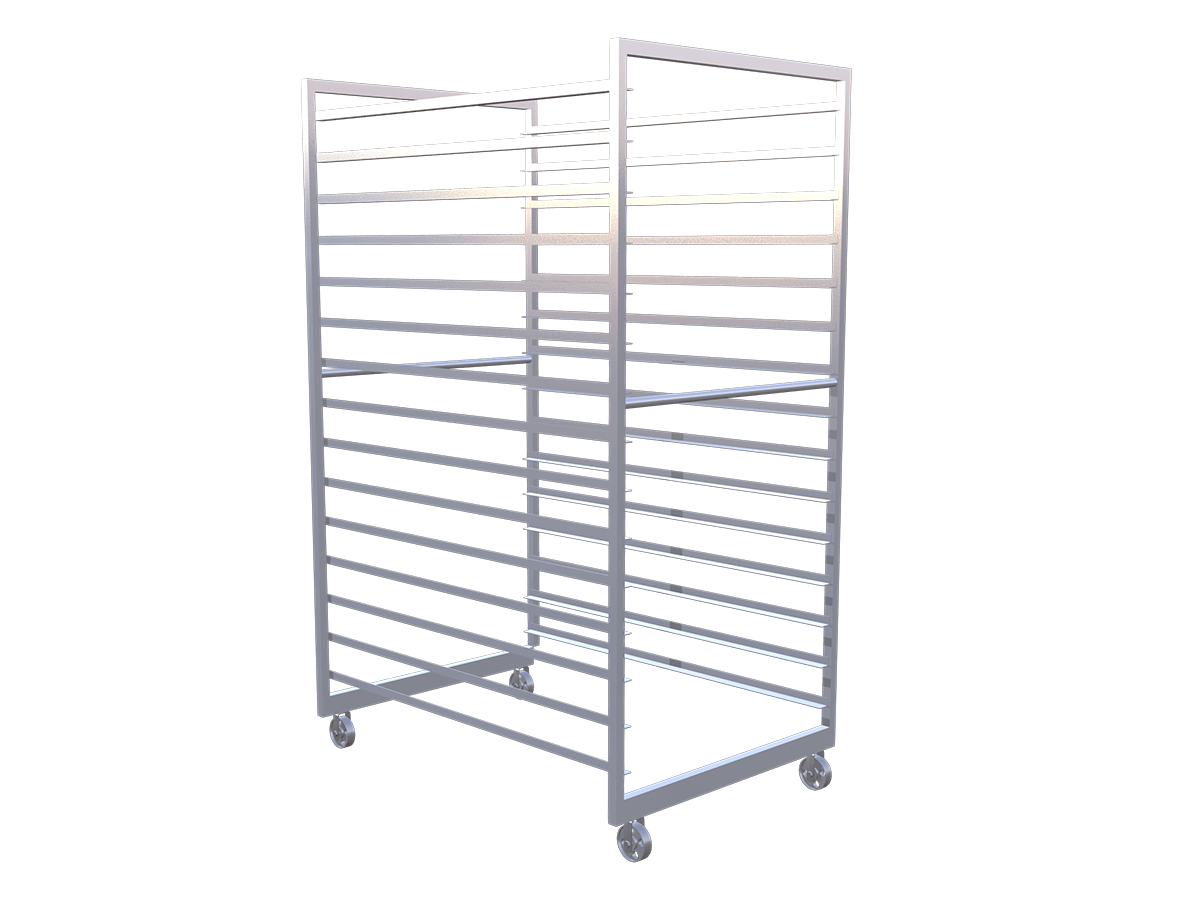

- ModelIDUTC-15
- Dimensions (W x H x D)920 x 1450 x 695mm
- Layers15
- Layer Spacing80mm
- Number of Trays30
- Tray Area8.8m²
Please allow 3cm above your thickest product for optimal airflow and dehydration. Made from industrial 304 food-grade stainless steel with a built-in drip tray.

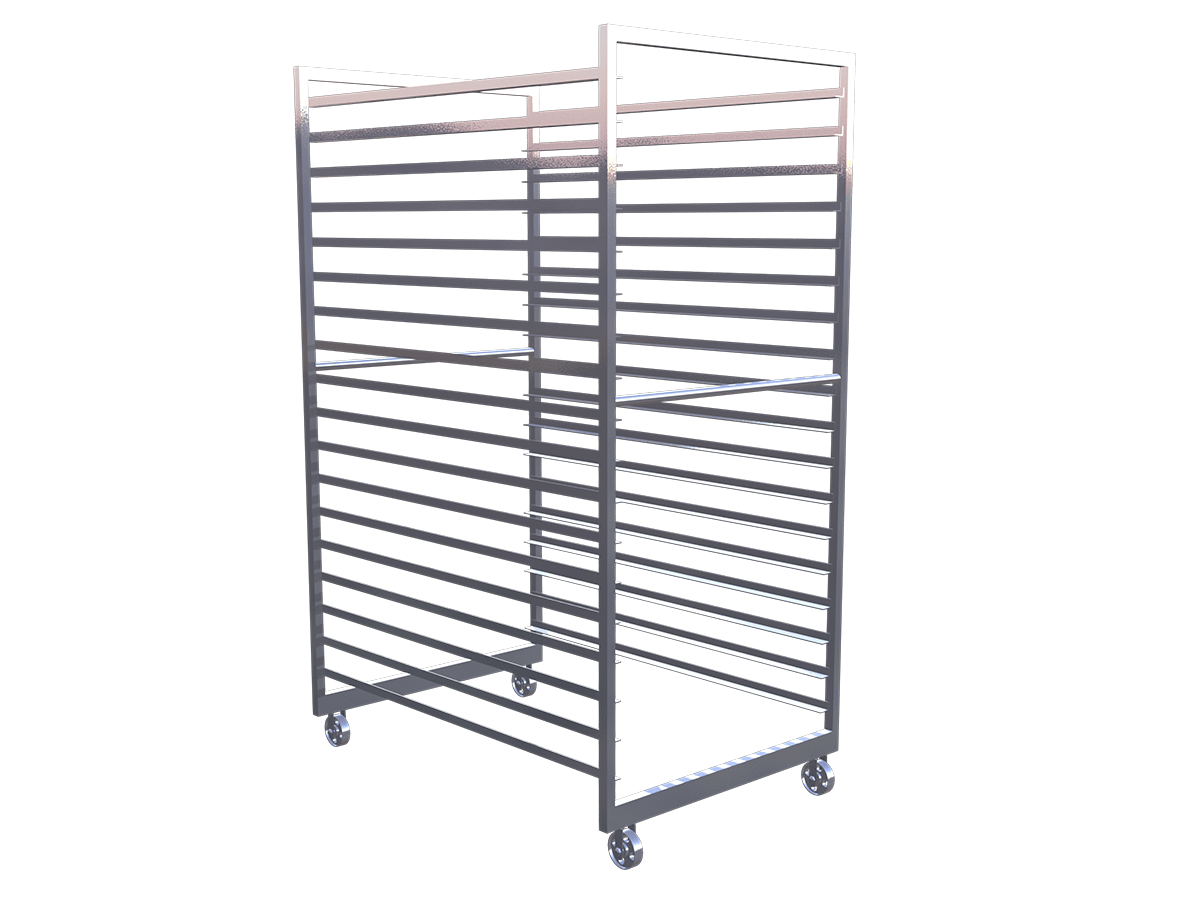

- ModelIDUTC-18
- Dimensions (W x H x D)920 x 1450 x 695mm
- Layers18
- Layer Spacing67mm
- Number of Trays36
- Tray Area10.6m²
Please allow 3cm above your thickest product for optimal airflow and dehydration. Made from industrial 304 food-grade stainless steel with a built-in drip tray.

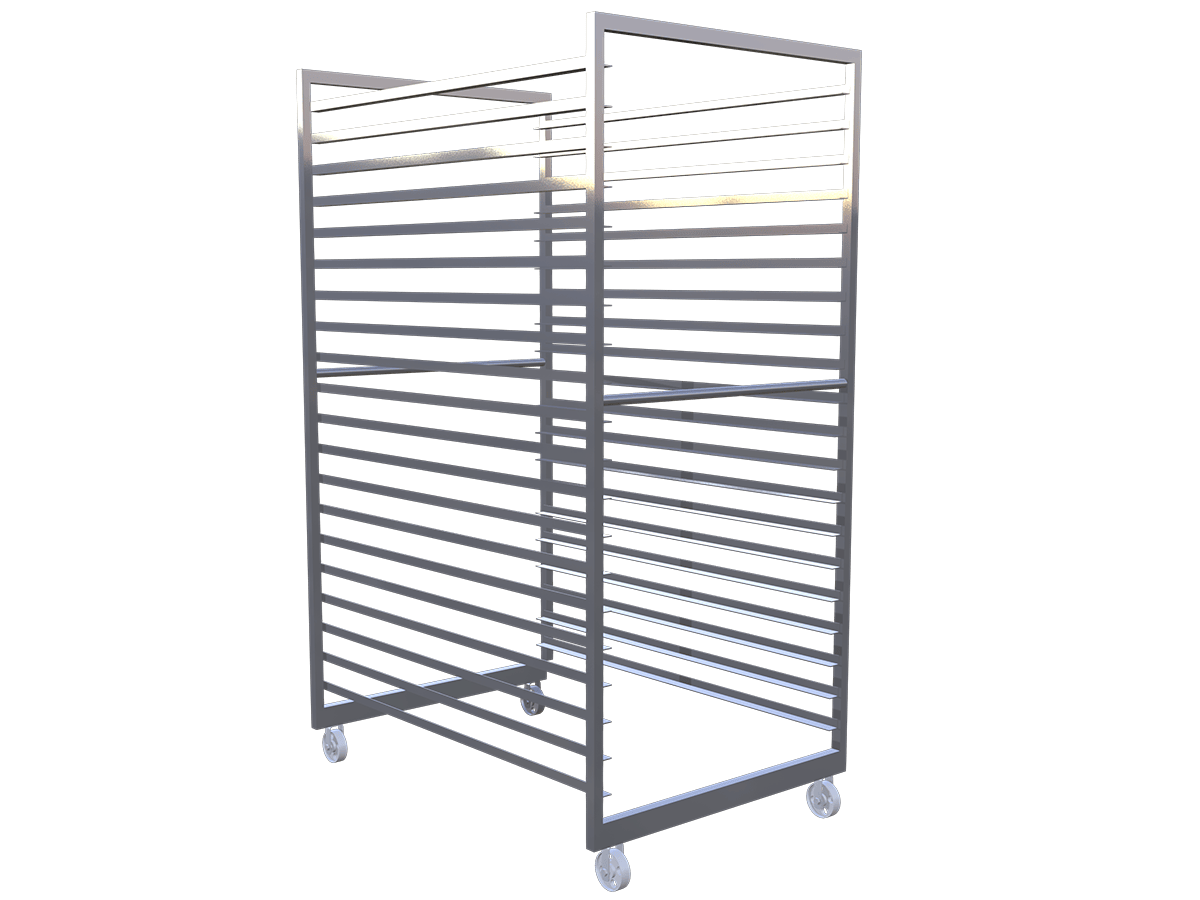

- ModelIDUTC-20
- Dimensions (W x H x D)920 x 1450 x 695mm
- Layers20
- Layer Spacing60mm
- Number of Trays40
- Tray Area11.8m²
Please allow 3cm above your thickest product for optimal airflow and dehydration. Made from industrial 304 food-grade stainless steel with a built-in drip tray.

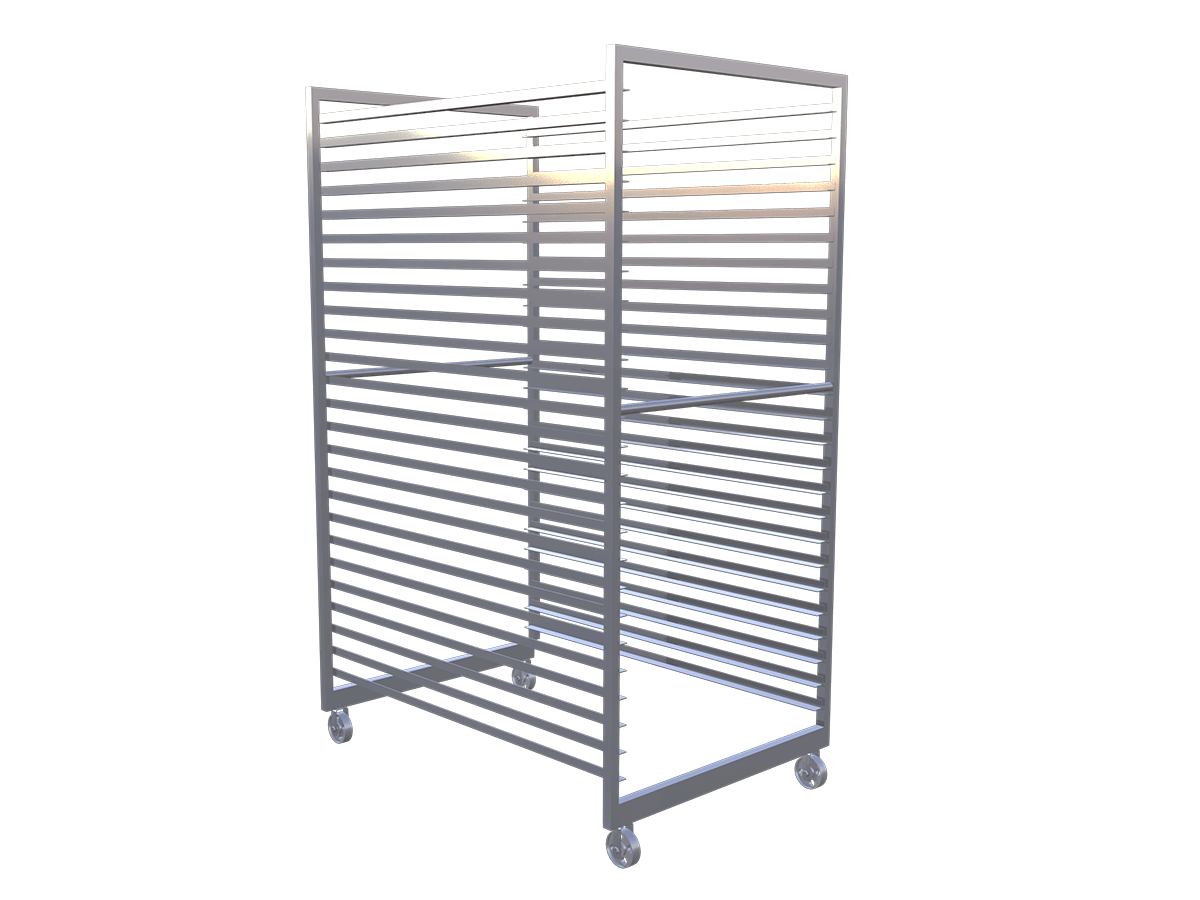

- ModelIDUTC-25
- Dimensions (W x H x D)920 x 1450 x 695mm
- Layers25
- Layer Spacing48mm
- Number of Trays50
- Tray Area14.7m²
Please allow 3cm above your thickest product for optimal airflow and dehydration. Made from industrial 304 food-grade stainless steel with a built-in drip tray.

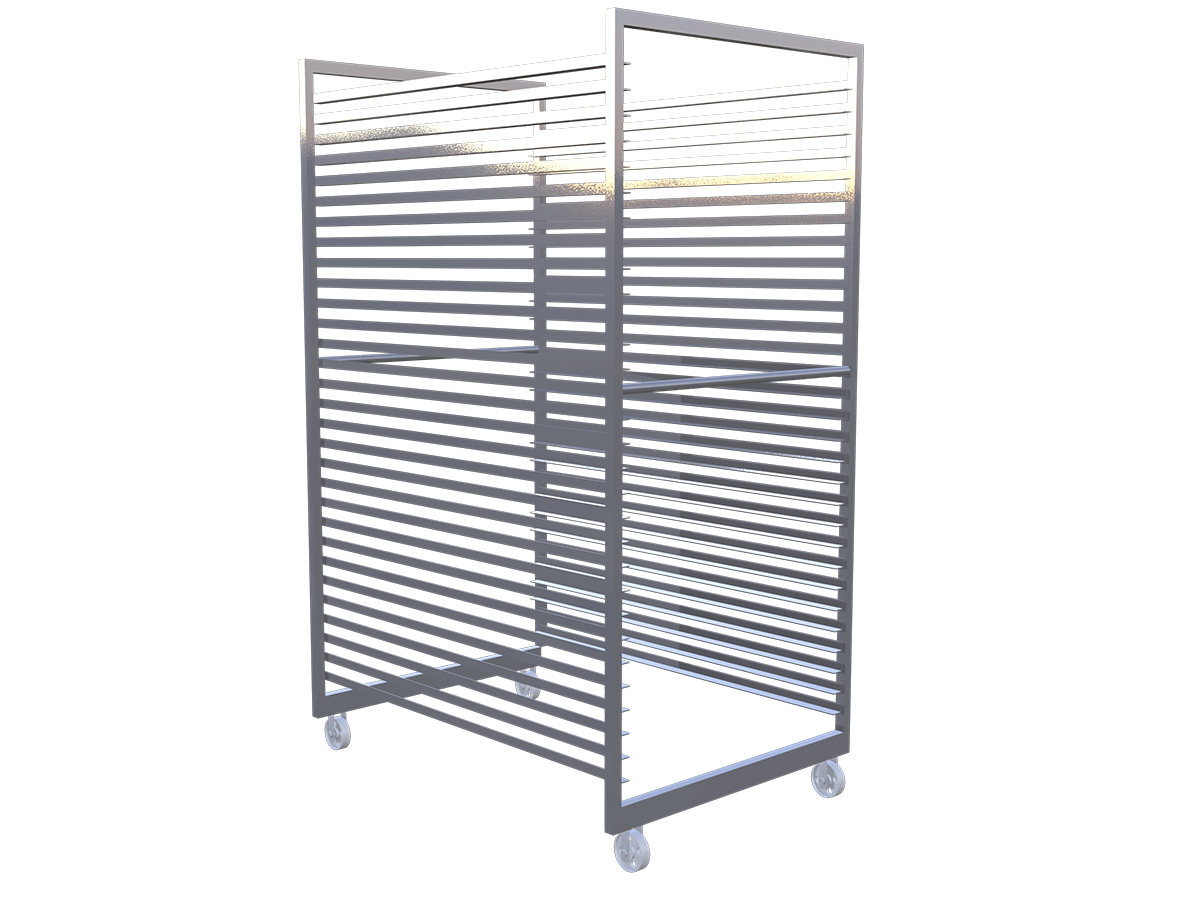

- ModelIDUTC-30
- Dimensions (W x H x D)920 x 1450 x 695mm
- Layers30
- Layer Spacing40mm
- Number of Trays60
- Tray Area17.7m²
Please allow 3cm above your thickest product for optimal airflow and dehydration. Made from industrial 304 food-grade stainless steel with a built-in drip tray.
Specifications
What's Included
- 1 Industrial Trolley on rotating caster wheels
- Choice of layer height (15, 18, 20, 25, or 30 layers)
- Optional tray set: mesh, fine mesh, perforated pan, or flat pan, or none
Material & Build
304 commercial grade food-grade stainless steel. Rotating caster wheels on the base for easy movement. Built-in drip tray on every layer configuration.
Tray Weights (if added)
Flat pan tray 1.41kg/tray, perforated pan tray 1.30kg/tray, mesh tray 0.97kg/tray, fine mesh tray 1.31kg/tray.
Best Suited For
Expanding the batch capacity of an existing BenchFoods industrial dehydrator, or keeping a spare pre-loaded trolley on hand between drying cycles.
Frequently Asked Questions
Will this trolley fit my industrial dehydrator?
Yes. This trolley is the same design used across all BenchFoods industrial dehydrators (IU-01 through IU-10), so it fits any standard unit in the range.
Do I need to add trays, or can I buy the trolley bare?
Trays are optional. You can select "None" if you already have trays from another trolley, or choose mesh, fine mesh, perforated pan, or flat pan to have a full set included.
Can I fit more trays than the standard layer count?
Yes. Thinner products only need around 3cm of clearance above them, so reducing the spacing between layers (by choosing a higher layer count option) lets you fit more trays into the same trolley.
Does this come with a drip tray?
Yes, every layer configuration comes with a built-in stainless steel drip tray.
