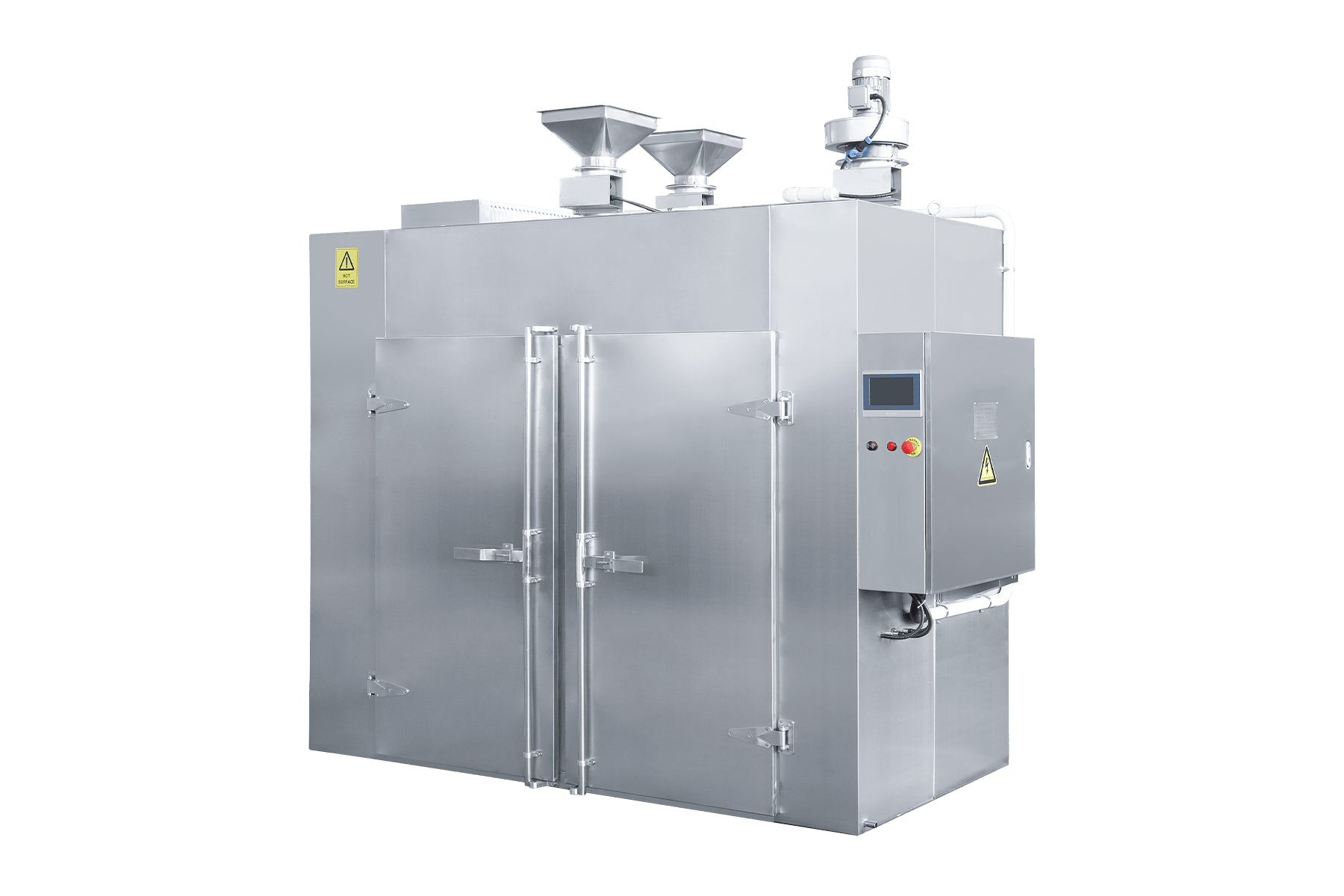

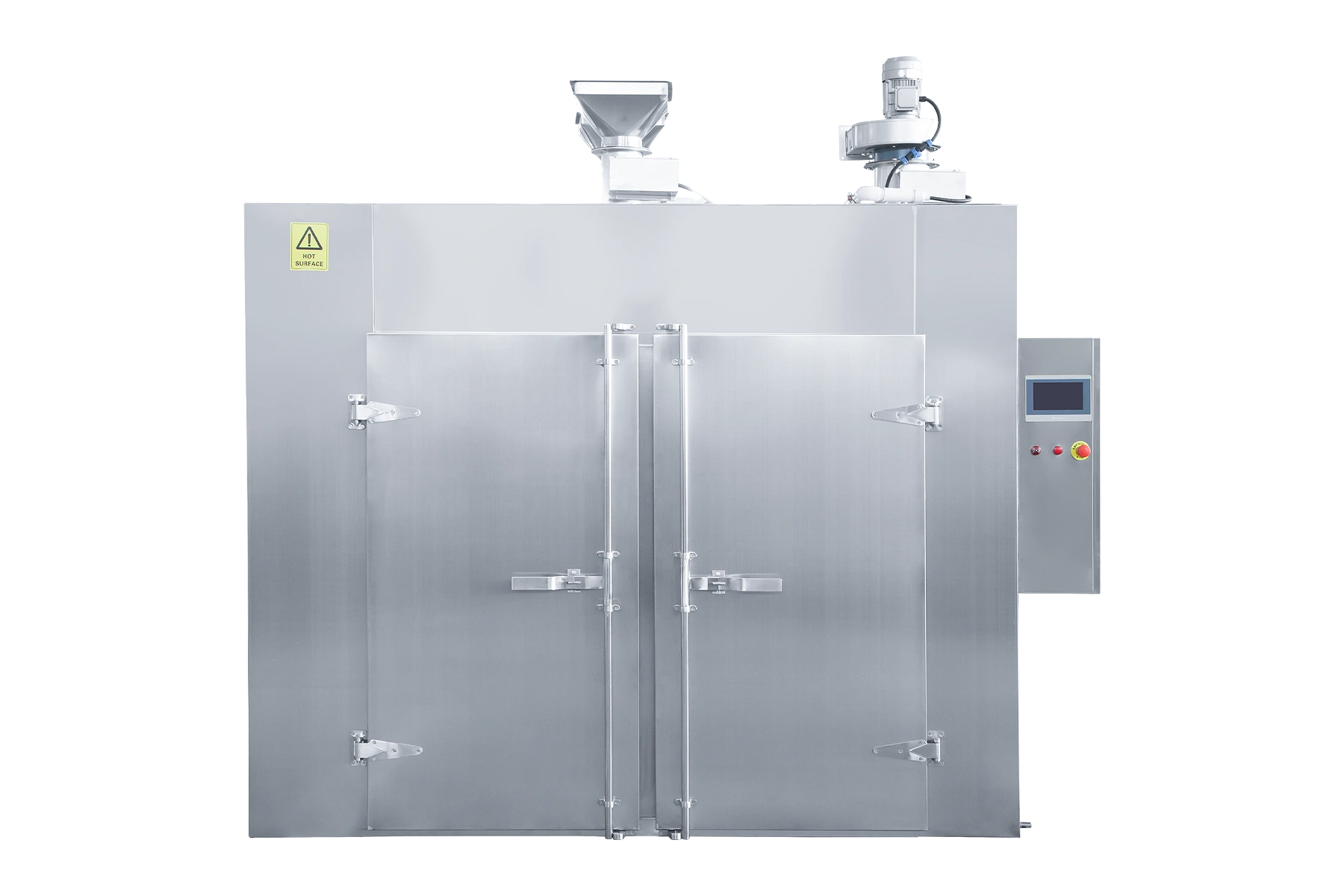

Industrial Dehydrator, 2 Trolley
A 304 food-grade stainless steel industrial dehydrator built for continuous, high-volume commercial drying. Fits 2 trolleys of 60 to 120 trays combined for 17.7 to 35.3 square metres of total tray area, with PLC-controlled staged drying, an adjustable 0 to 120 degrees C range, and a 9999 hour timer. Backed by a 5 year commercial warranty.
Two stainless steel trolleys each hold 30 to 60 trays depending on your chosen layer height, giving 17.7 to 35.3 square metres of combined tray area. A horizontal forced-air convection system moves roughly 21,300 cubic metres of air per hour per trolley, 42,600m³/hr in total, so there's no need to rotate trays or trolleys mid-cycle.
Set an exact temperature anywhere from ambient up to 120 degrees C, with a 0 to 9999 hour timer. The programmable logic controller stores up to 15 saved recipes with staged temperature and time steps, and connects to a desktop or mobile app over Ethernet for remote monitoring and control from anywhere.
Double-walled 304 food-grade stainless steel construction, insulated with high-density aluminium silicate cotton, is designed for 24 hours a day, 7 days a week operation. Manufactured in an ISO 9001-certified facility using premium components, and backed by a 5 year commercial warranty. A 316 stainless steel upgrade is available on request.
Specs shown are per trolley. This unit comes with 2 matching trolleys.
Max power draw 17.95kW, average power draw 9kW. 3-phase, 400V, 50 to 60Hz, with custom voltage available on request.
Horizontal forced air convection delivering roughly 21,300m³/hr per trolley, 42,600m³/hr total, with adjustable air speed from 5% (0.31 m/s) to 100% (6.29 m/s). 0 to 9999 hour timer, PLC control with up to 15 saved programs, and USB/CSV data export for chamber temperature, product temperature, and humidity.
Choose your trolley tray height (15, 18, 20, 25, or 30 layers, applied to both trolleys) to set tray count and spacing, and your tray type (mesh, fine mesh, perforated pan, or flat pan). Tray type does not affect price.
This unit is manufactured to order. Please allow approximately 12 to 16 weeks for build and delivery. Standard domestic shipping is included in the listed price.
No. Mesh, fine mesh, perforated pan, and flat pan trays are all the same price. Only your trolley tray height selection, which changes the number of trays and the spacing between them, affects the price.
Both trolleys in this unit run the same drying program at the same time, rather than as independent zones. Get in touch with our industrial team if you need a zoned setup for two different products simultaneously.
Yes. Each trolley comes with its full set of 304 food-grade stainless steel trays, plus a built-in stainless steel drip tray. Additional trays can be purchased separately.
Yes. It's engineered to run 24 hours a day, 7 days a week, 365 days a year for high-volume production environments.
